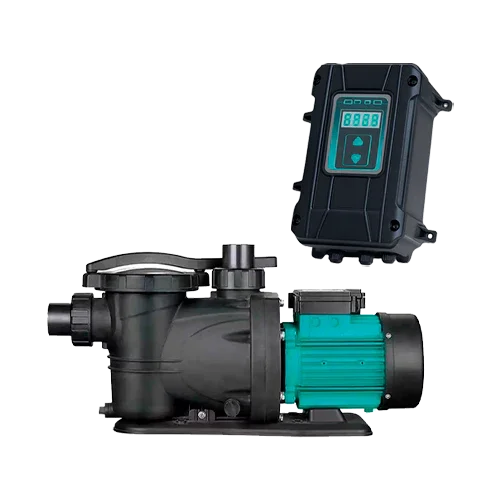

ZIRI XKP20-19-110-900-AD Hybrid Solar Water Treatment Plant 900W 19m 20m³/h
Modelo: ZIRI XKP20-19-110-900-AD- Sku: ZIRIDEP006
- Vendor: ZIRI Solar
Specifications
Product Description
The ZIRI XKP20-19-110-900-AD Hybrid Solar Pool Filter combines the best of photovoltaic energy with the security of the electrical grid. Its brushless permanent magnet synchronous motor and integrated MPPT AC/DC controller ensure efficient and stable filtration operation, both with direct current from solar panels and with alternating current. With 900 W of power, it achieves a flow rate of 20 m³/h and a head of 19 m, ideal for residential pools or small commercial installations seeking fast filtration cycles with minimal operating cost.
Main Features
- Performance: maximum flow rate 20 m³/h and head up to 19 m.
- Hybrid: operates on DC 90–430 V or AC 80–280 V with intelligent switching.
- Controller with MPPT, soft start, automatic frequency conversion, and LED display with parameters/errors.
- IP55 protection and operating temperature range -15 °C to +60 °C.
- 2” hydraulic connections to minimize pressure loss; 2 m connection cable.
- Designed for residential/commercial pools and spas with treated water.
Advantages or Benefits
- Continues filtering even without sunlight: use AC as backup or for specific schedules.
- Lower energy cost thanks to MPPT, which optimizes solar power delivery.
- Smooth operation and longer service life due to the brushless motor and progressive start.
- Simple and safe installation with integrated electronics and real-time monitoring.
- High reliability in demanding climates due to its IP protection and wide temperature range.
Purpose or Applications
Main filtration for residential pools, boutique hotels, and spas; recirculation in tanks with sand or cartridge filters; systems requiring priority solar operation with AC backup.
Technical Specifications
| Model | ZIRI XKP20-19-110-900-AD |
| Electrical power | 900 W |
| Maximum flow rate | 20 m³/h |
| Maximum head | 19 m |
| DC supply | 90–430 Vdc (string VOC < 430 V) |
| AC supply | 80–280 Vac |
| Control | MPPT AC/DC, soft start, LED display |
| Protection | IP55 |
| Thermal range | -15 °C…+60 °C |
| Hydraulic connections | 2” (suction/discharge) |
| Cable | 2 m |
| PV sizing | Minimum solar power ≥ 1.3×P pump; operating voltage within 90–430 Vdc |
| Fluid | Clean treated water (pool/spa) |
Compatibilities
Integrates with sand or cartridge filters, selector valves, and 2” manifolds. Accessories: check valve, pressure gauge, PVC pressure unions and fittings, DC protection cabinet (circuit breaker and SPD), and AC disconnection.
The ZIRI XKP20-19-110-900-AD Hybrid Solar Pool Filter offers solar efficiency with AC backup, ensuring crystal-clear water all year round with maximum reliability.
