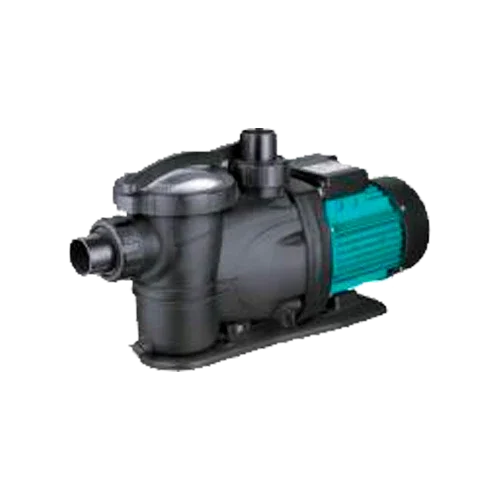

ZIRI XKP27-19-150-1200-AD Hybrid Solar Water Treatment Plant 1200W 19m 27m³/h
Modelo: XKP27-19-150-1200-AD- Sku: ZIRIDEP009
- Vendor: ZIRI Solar
Specifications
Product Description

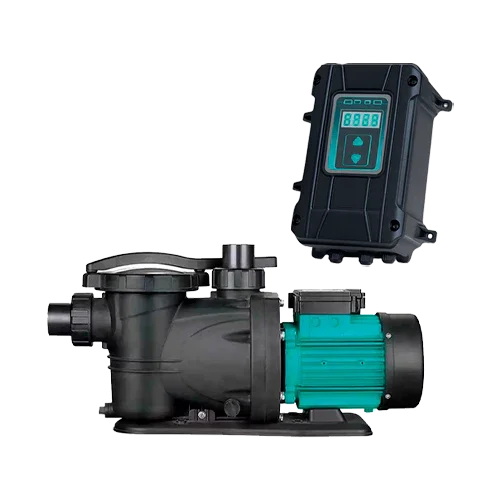

The ZIRI XKP27-19-150-1200-AD Hybrid Solar Pool Filter enhances the performance of the XKP series for large-volume pools. Its permanent magnet synchronous motor and integrated MPPT AC/DC electronics allow prioritization of solar energy use and, when necessary, automatic switching to alternating current. With 1200 W of power, it delivers a flow rate of 27 m³/h and a head of 19 m, offering very fast and stable filtration cycles for both demanding residences and small commercial installations.
Main Features
- Reference performance: 27 m³/h flow rate and 19 m head.
- Total hybridization: DC 90–430 V (VOC string < 430 V) or AC 80–280 V.
- Advanced control with MPPT, soft start, automatic frequency conversion, and LED display.
- IP55 protection and operation from -15 °C to +60 °C.
- 2” connections to minimize losses and sustain high flow rates; 2 m cable.
- Designed for residential/commercial pools and spas with treated water.
Advantages or Benefits
- Maximum flow with savings: prioritizes solar energy and maintains service with AC backup.
- Longer lifespan due to brushless motor and electronic management with progressive start.
- Stable operation under variable irradiance conditions thanks to MPPT.
- Professional installation and easy maintenance with on-screen monitoring.
- Robustness against outdoor conditions and pool chemicals due to its protection rating.
Purpose or Applications
Main filtration in large residential pools, boutique hotels, small communities, spas, and high-flow recirculation in tanks with sand or cartridge filters, always prioritizing the use of solar energy.
Technical Specifications
| Model | ZIRI XKP27-19-150-1200-AD |
| Electrical power | 1200 W |
| Maximum flow rate | 27 m³/h |
| Maximum head | 19 m |
| DC supply | 90–430 Vdc (string VOC < 430 V) |
| AC supply | 80–280 Vac |
| Control | MPPT AC/DC, soft start, LED display |
| Protection | IP55 |
| Thermal range | -15 °C…+60 °C |
| Hydraulic connections | 2” (suction/discharge) |
| Cable | 2 m |
| PV sizing | Minimum solar power ≥ 1.3×P pump; operating voltage within 90–430 Vdc |
| Fluid | Clean treated water (pool/spa) |
Compatibilities
Integration with sand or cartridge filters and 2” collectors. Accessories: check valve, pressure gauge, PVC pressure fittings and unions, DC protection cabinet (circuit breaker and SPD), and AC disconnection/protection.
The ZIRI XKP27-19-150-1200-AD Hybrid Solar Pool Filter is the high-flow option that ensures crystal-clear water with solar priority and automatic AC backup, with the reliability required for intensive use.
