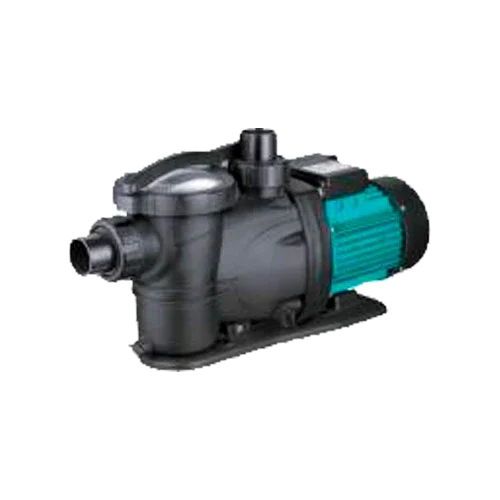

ZIRI XKP27-19-72-1200 Solar Water Treatment Plant 1200W 19m 27m³/h

Modelo: XKP27-19-72-1200

Sku: ZIRIDEP010
Vendor: ZIRI Solar

€1.248,45 EUR

€998,76 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

ZIRI XKP27-19-72-1200 Solar Purifier with 1200 W for large volume. Flow rate 27 m³/h and 19 m head, brushless motor and integrated MPPT. Operates at 72 V with a 90–120 VDC window (max Voc < 150 V).

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

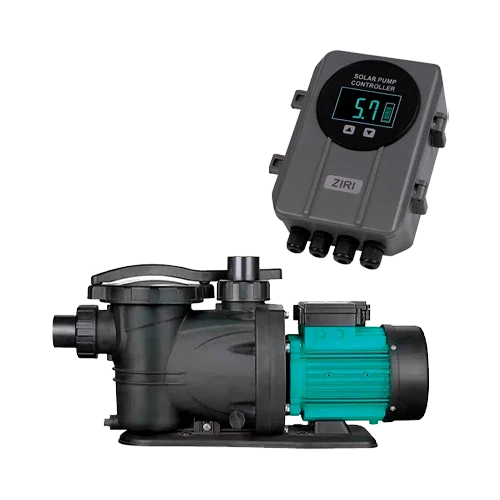

The ZIRI XKP27-19-72-1200 Solar Pool Filter offers the same benchmark hydraulic performance of the XKP27 series in a 72 V nominal system designed for pure solar installations. Its integrated MPPT electronics manage the PV generator to extract available power and enable soft starts, while the synchronous brushless motor ensures high efficiency, low noise, and long service life. With 1200 W, it delivers 27 m³/h and 19 m head, ideal for large residential pools, spas, or small collective installations that require fast filtration cycles with minimal operating cost.

Main Features

High-level performance: maximum flow rate of 27 m³/h with a head of 19 m.
Optimal electrical window: 90–120 VDC on a 72 V nominal system; max Voc < 150 V.
Advanced control: integrated MPPT, soft start, automatic frequency conversion, and LED display with status and alarm readings.
IP55 protection and operation from -15 °C to +60 °C for outdoor use.
2” hydraulic connections to maintain very low pressure losses at high flow rates.
Designed for continuous service with treated water.

Advantages or Benefits

Maximum energy savings by operating primarily with photovoltaics without relying on the grid.
Simplified installation: all control is inside the pump, reducing external components.
Greater durability due to progressive start and intelligent power management.
Stable operation with variable irradiance thanks to MPPT tracking.
Quiet operation and reduced maintenance.

Purpose or Applications

Main filtration in large pools, spas, small communities, and tanks with sand or cartridge filters; treatment recirculations that require high flow and 100% solar operation.

Technical Specifications

Model	ZIRI XKP27-19-72-1200
Electrical power	1200 W
Nominal voltage	72 V
Optimal input window	90–120 VDC
Maximum allowed Voc	< 150 V
Maximum flow rate	27 m³/h
Maximum head	19 m
Hydraulic connections	2” (suction/discharge)
Motor	Synchronous brushless with permanent magnets
Control	Integrated MPPT, soft start, frequency conversion, LED display
Protection	IP55
Ambient temperature	-15 °C…+60 °C
PV sizing	Select the minimum required power and keep the operating voltage at 90–120 VDC without exceeding Voc < 150 V

Compatibilities

Compatible with sand or cartridge filters, selector valves, and 2” manifolds. Accessories: check valve, pressure gauge, PVC pressure unions and fittings, DC protection cabinet (circuit breaker and SPD), and flow/level sensors.

The ZIRI XKP27-19-72-1200 Solar Pool Filter combines outstanding flow, advanced electronics, and reliability to keep water pristine with solar energy and a simple installation.
