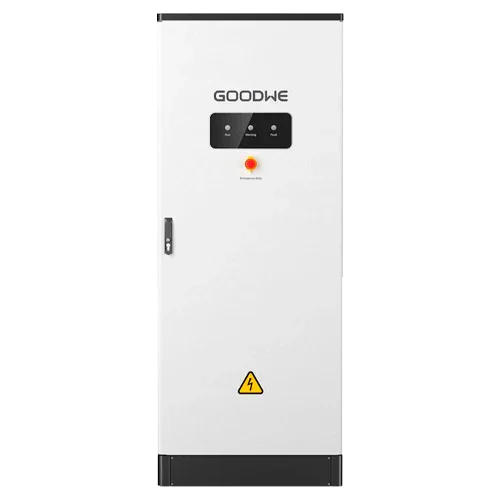

GoodWe Lynx C Battery Extension 60K 60kWh C&I High Voltage
Modelo: Lynx C 60K- Sku: GOODBAT006
- Vendor: Goodwe
Specifications
Product Description
The GoodWe Lynx C 60K 60kWh C&I High Voltage Battery Extension is the official expansion cabinet for Lynx C systems. It provides an additional 60 kWh using LFP technology within an IP55 cabinet with HVAC and BMS, designed to operate in parallel with the Master cabinet and with GoodWe ET three-phase hybrid inverters.
Main Features
- Additional capacity: 60 kWh per Extension cabinet (100% DoD).
- System nominal voltage: 633.6 V (operation 554.4–712.8 V DC).
- Integrated electronics and BMS at module/rack level with communication to the Master.
- Outdoor IP55 cabinet with HVAC (heating and cooling) for maximum service life.
- Modular architecture: connection as “slave” to the Master cabinet via DC HV bus.
- Simple scalability: up to 2 Extensions per ET inverter (60 kWh × 3 = 180 kWh).
Advantages or Benefits
- Grows with your demand: expand energy without redesigning the entire electrical room.
- Operational continuity: add capacity without stopping the system (phased work plan).
- Optimized cost: better LCOE by scaling in stages and leveraging existing infrastructure.
- Safety and reliability: LFP, HVAC, and multi-level protections identical to the Master.
- Unified management: control and monitoring from SEMS together with the main cabinet.
Purpose or Applications
Oriented towards C&I projects anticipating consumption growth, PV expansion, or new loads (EV charging, processes, climate control). Ideal for strengthening peak-shaving strategies, time-of-use arbitrage, and backup against micro-outages without replacing the existing system.
Technical Specifications
| Power | 60 kWh per extension cabinet (usable energy, 100% DoD) |
| Nominal voltage | 633.6 V (operation 554.4–712.8 V DC) |
| Format | Modular outdoor IP55 cabinet with HVAC; “slave” connection to the Master |
Compatibilities
Works exclusively with the Lynx C 60K Master cabinet and with GoodWe ET series three-phase hybrid inverters (15–30 kW). Integrates into SEMS as part of the same system, up to 180 kWh per inverter.
The GoodWe Lynx C 60K 60kWh C&I High Voltage Battery Extension is the simplest and safest way to increase the autonomy and operational flexibility of your installation. Maintain the same reliability, environmental protection, and efficiency of the original system while expanding energy capacity.
GoodWe Lynx C 60K 60kWh C&I High Voltage Battery Extension strengthens professional renewable energy projects with real scalability, better use of space, and greater overall efficiency.
