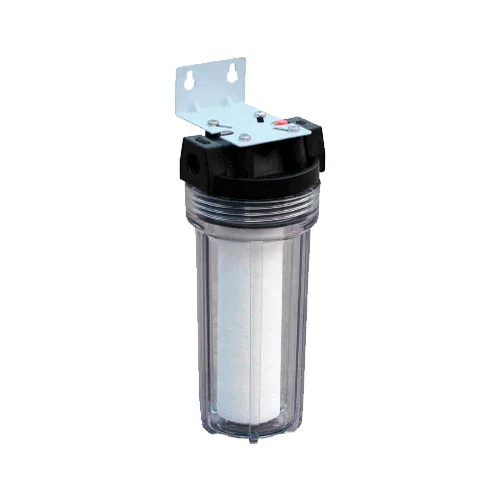

Inline Filter Lorentz PS BOOST 10" 20μm NPT 1/2"

Product description

The Lorentz PS BOOST Inline Filter 10" 20μm NPT 1/2" is an inline filter specifically designed for Lorentz PS BOOST surface pumps. Its function is to prevent solid particles such as sand, clay, or sediments from entering the pump, thus extending its service life and ensuring efficient operation. This filter is mandatory in any installation with PS BOOST pumps, as they are designed exclusively for clean water.

Main features

• Fine filtration of 20 μm using a spun polypropylene cartridge
• 1/2" NPT connection thread for water inlet and outlet
• Housing with transparent vessel for visual inspection
• Wall mount included for secure installation
• Maximum working pressure: 6 bar
• Maximum water temperature: 50 °C

Advantages or benefits

• Effectively protects the pump against blockages and premature wear
• Allows visual maintenance thanks to its transparent design
• Easily replaceable cartridge with available spare parts
• Prevents costs due to breakdowns or damage to the pumping system

Purpose or applications

Ideal for solar pumping systems in wells, cisterns, or tanks where suspended particles may be present. This inline filter is essential in installations with Lorentz PS BOOST pumps, but is also compatible with other surface pumps that require fine filtration through 1/2" NPT connections.

Technical specifications

Compatibilities

This product is compatible with: PS BOOST-60, PS BOOST-125, PS BOOST-240, PS BOOST-330.

Lorentz PS BOOST Inline Filter 10" 20μm NPT 1/2" is the essential component to ensure the protection of your solar pump. It improves system reliability, reduces maintenance costs, and ensures clean water at all times.
