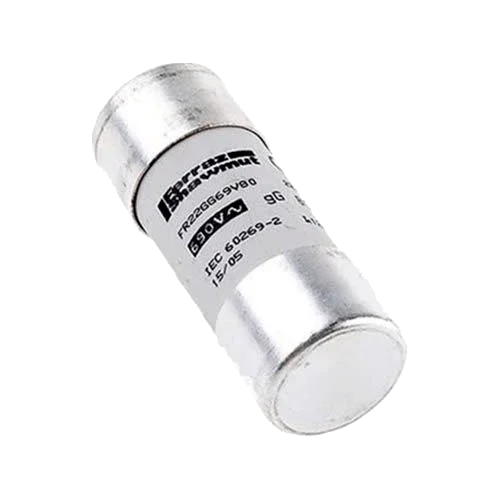

Mersen Fuse 22x58 32A 690V gG
Modelo: 22x58 32A 690V gG- Sku: MERSACC001
- Vendor: Mersen
Specifications
Product Description
The Mersen Fuse 22x58 32A 690V gG is a high-reliability cylindrical fuse designed to protect cables, lines, and receivers in industrial and tertiary alternating current installations. Its HRC ceramic construction with quartz sand filling provides rapid arc extinction and a high breaking capacity, making it a safe and durable solution for electrical panels and motor control centers.
Main Features
- 22×58 mm format: industrial standard compatible with cylindrical fuse bases and holders.
- Rated current 32 A and voltage 690 V AC: reliable protection against overloads and short circuits.
- gG class: general-purpose protection for cables and equipment (full melting curve).
- HRC ceramic body with quartz sand: high breaking capacity and great thermal resistance.
- Silver-plated terminals: lower contact resistance and better thermal dissipation.
- Installation in 22×58 fuse holders 1P/2P/3P: quick integration on DIN rail.
Advantages or Benefits
- Enhanced safety thanks to its high breaking capacity and anti-burst design.
- Simple maintenance: quick replacement without special tools.
- Long service life due to high-quality materials and low contact resistance.
- Standardization: universal 22×58 format for easy stocking and replacement.
- Comprehensive protection (gG): covers from moderate overloads to severe faults.
Purpose or Applications
Ideal for distribution panels, line protection and machinery power supplies, motors with coordinated protection, industrial climate control, large area lighting, and auxiliary systems in process plants. Suitable for low voltage AC installations requiring reliability and fast response.
Technical Specifications
| Format | Cylindrical 22×58 mm |
| Rated current | 32 A |
| Rated voltage | 690 V AC |
| Application | gG (general protection of lines and equipment) |
| Extinguishing medium | Quartz sand (HRC) |
| Body material | High-strength ceramic |
| Terminals | Silver-plated caps/ends |
| Standards | IEC 60269-2 / EN 60269 |
| Mounting | 22×58 base/fuse holder on DIN rail |
Compatibilities
Compatible with 22×58 cylindrical fuse holders (1P, 2P, 3P), fuse switch disconnectors for 22×58, and common distribution busbars in DIN panels. Can be combined with thermal or magnetic circuit breakers upstream for coordinated protection.
The Mersen Fuse 22x58 32A 690V gG provides safety, standardization, and reliability to keep your panels and industrial installations operational.
