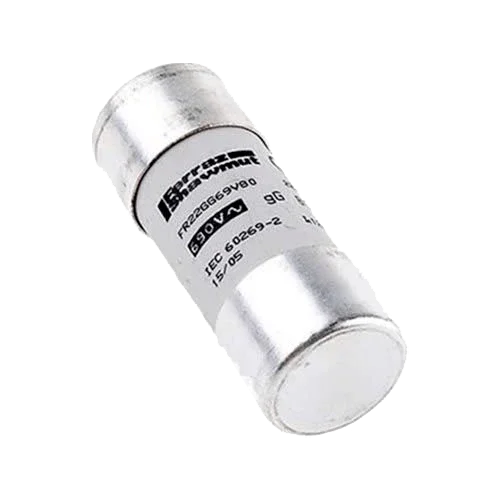

Mersen Fuse 22x58 50A 690V gG

Product Description

The Mersen Fuse 22x58 50A 690V gG is a high-performance cylindrical fuse designed to reliably protect cables, distribution lines, and equipment in low-voltage alternating current installations. Its HRC ceramic construction, with quartz sand filling and silver-plated contacts, ensures rapid arc extinction and a high breaking capacity in the event of severe short circuits. Thanks to its standard 22×58 mm format and gG utilization curve, it provides comprehensive protection (from prolonged overloads to direct faults), fitting perfectly in industrial electrical panels, motor control centers, and service subpanels.

Main Features

• 22×58 mm format: universal standard for cylindrical fuse holders and fuse switch disconnectors on DIN rail.
• Rated current 50 A and voltage 690 V AC: sized for power supplies and branches in industrial environments.
• gG class: general protection of lines and loads with fault energy limitation.
• HRC ceramic body with quartz sand: rapid arc extinction and high thermal resistance.
• Silver-plated terminals: low contact resistance, reduced heating, and long-term reliability.
• Easy integration in 22×58 bases 1P/2P/3P and simple replacement for maintenance.

Advantages or Benefits

• Superior electrical safety: limits thermal and dynamic stress on conductors and equipment during faults.
• Availability and standardization: widely used 22×58 format, ideal for spare parts and maintenance logistics.
• Reduced operating cost: quick replacement without special tools and high material durability.
• Versatility: suitable for general-purpose protection in distribution, machinery supply, HVAC, pumps, and industrial lighting.
• Compatibility: works with most fuse holders and disconnectors for 22×58 cartridges on the market.

Purpose or Applications

Recommended for main and sub low-voltage AC panels, protection of distribution lines, motor outputs with protection coordination, starting and switching, high-power lighting lines, pumps, industrial ventilation, and auxiliary services in process plants, logistics centers, and commercial buildings.

Technical Specifications

Compatibilities

Compatible with 22×58 cylindrical fuse holders, fuse switch disconnectors of the same format, and standard busbar systems in DIN panels. Can be coordinated with circuit breakers and thermal relays to achieve selectivity and comprehensive circuit protection. If you already use 22×58 bases in your panels, cartridge replacement is immediate.

The Mersen Fuse 22x58 50A 690V gG offers an optimal combination of safety, standardization, and robustness to keep your industrial circuits protected and operational with maximum reliability.
