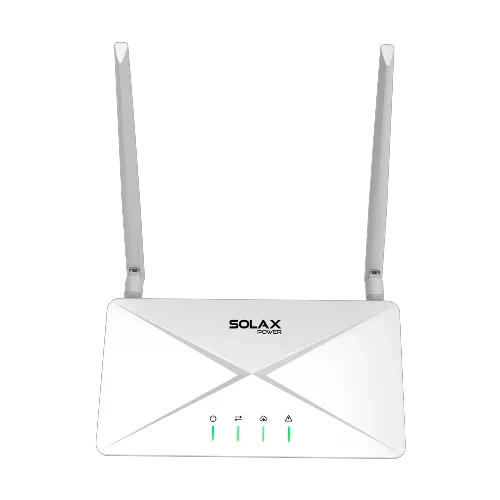

Solax ECC Communication Gateway for monitoring and control
Modelo: ECC Gateway- Sku: SOLXACC037
- Vendor: Solax
Specifications
Product description
The Solax ECC Communication Gateway is a multifunctional device designed to integrate, control, and monitor solar installations with SolaX inverters. Compatible with Wi-Fi, Ethernet, and 4G, it allows the system to connect to the SolaX Cloud platform for remote monitoring, export control to the grid, integration of external sensors, and automation. Its compact design, easy installation, and multiple interfaces make it an essential tool for installations requiring advanced energy management.
Main features
- Wi-Fi connectivity (802.11 b/g/n), Ethernet RJ45, and 4G Cat-M1
- Compatibility with RS485 and Modbus-RTU protocols
- Digital and analog inputs for external sensors or relays
- Export, ripple, and DRM control (Australia/NZ)
- USB port (5 V) for peripherals and auxiliary power
- Data sampling frequency every 5 minutes
Advantages or benefits
- Enables dynamic export control even without native EMS
- Facilitates integration of consumption, temperature, or irradiance sensors
- Provides local firmware updates and remote access from SolaX Cloud
- Ideal for installations with microinverters or inverters without integrated advanced communications
- Lightweight, compact design, easy to install on wall or desktop
Purpose or applications
The ECC is designed for residential or commercial solar installations using SolaX inverters that require advanced monitoring, integration with external sensors, or automation. It is especially useful for projects with export control, microinverters, or when more precise management of loads and consumption is needed from the cloud or locally.
Technical specifications
| Connectivity | Wi-Fi, Ethernet, 4G Cat-M1 |
| Protocols | RS485, Modbus RTU |
| Inputs/outputs | Analog, digital, USB 5 V |
| Consumption | 10 W |
| Protection | IP20 (indoor use) |
| Dimensions | 210 × 113 × 26 mm |
Compatibilities
This product is compatible with: X1-Micro 800 W, 900 W, 1000 W, 1200 W, 1300 W, 1500 W, 1600 W, 1800 W, 2000 W, 2200 W.
Solax ECC Communication Gateway provides a complete solution for advanced control and monitoring of solar systems. Connect to SolaX Cloud and optimize the performance, efficiency, and automation of your installation.
