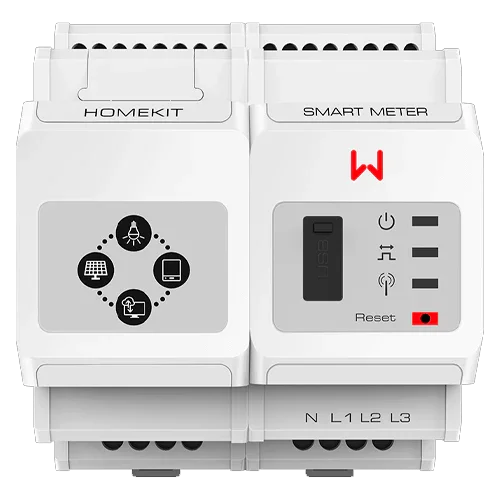

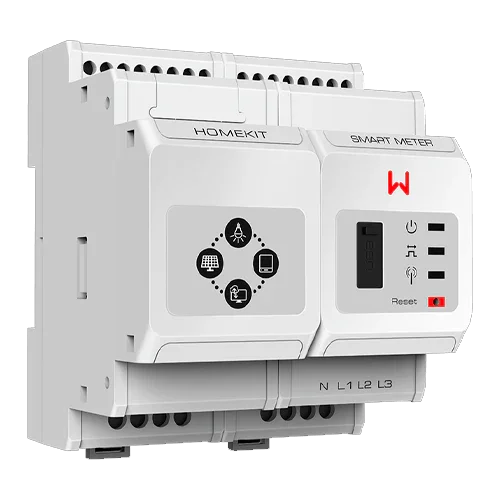

GoodWe HomeKit HK3000 Three-phase Consumption Meter

Product Description

The GoodWe HomeKit HK3000 Three-phase Consumption Meter is an intelligent solution for monitoring energy consumption in three-phase systems, both with and without photovoltaic installation. This all-in-one device integrates a high-precision three-phase meter and a WiFi and LAN communications module, with direct connection to the SEMS portal. It allows real-time data visualization and control of energy export to the grid in installations with GoodWe inverters.

Main Features

• Three-phase measurement with class 1 accuracy (active energy) and class 2 (reactive)
• Includes 3 current transformers (120 A:40 mA or 200 A:66.7 mA)
• Connectivity via RS485, WiFi 2.4 GHz, and LAN RJ45
• Compatible with GoodWe inverters and systems without photovoltaics
• Data transmission to the cloud every 60 seconds
• DIN rail mounting (4 modules), compact IP20 design

Advantages or Benefits

• Precise control of electrical consumption and visualization of the source (grid or solar)
• Zero export function with compatible GoodWe inverters
• Ideal for homes, SMEs, and buildings with a three-phase grid
• Simple installation, with CTs included
• Remote access from SEMS Portal and associated apps

Purpose or Applications

The HomeKit HK3000 is designed for users who need advanced energy monitoring in three-phase systems. It is useful both for controlling self-consumption in photovoltaic installations and for knowing the actual energy consumption in installations without solar. Compatible with GoodWe inverters, it provides a comprehensive solution for analysis, control, and energy efficiency.

Technical Specifications

Compatibilities

This product is compatible with: GoodWe three-phase inverters (series ET, DT, MT, HT), and platforms SEMS Portal, EZManage and systems such as EzLogger Pro and SEC1000.

GoodWe HomeKit HK3000 Three-phase Consumption Meter is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
