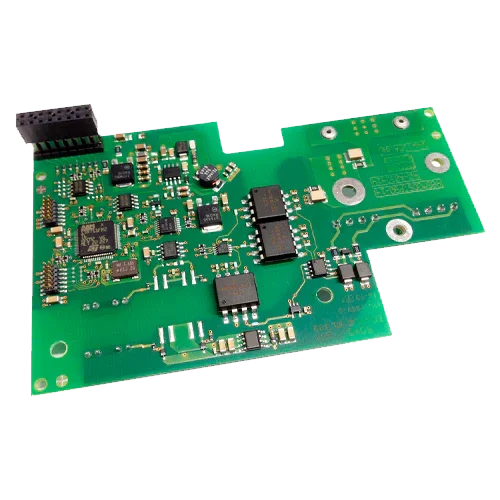

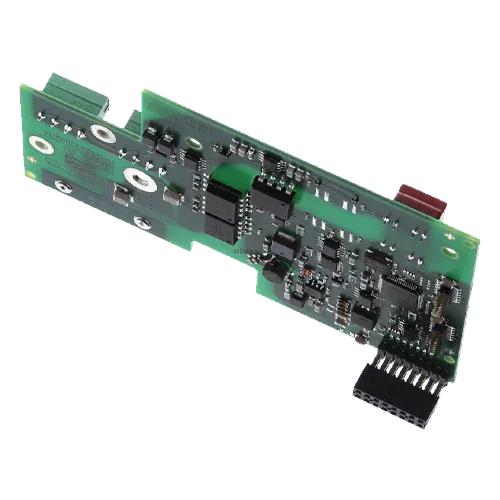

RS485 Interface SMA 485BRD-10 for Tripower inverters

Product description

The SMA 485BRD-10 RS485 Interface is a type B communication module installed inside Sunny Tripower and Windy Tripower inverters to enable a wired RS485 connection. It is the ideal solution for installations requiring centralized monitoring or integration with SCADA systems, especially when wireless communication is not available or not desired.

Main features

• Wired RS485 communication up to 1200 m
• Compatible with STP and WTP Tripower inverters of the TL-20 series
• Direct installation inside the inverter
• Includes bus terminator and spring connectors
• Operating temperature range: –25 °C to +85 °C

Advantages or benefits

• Allows monitoring of multiple inverters in series via a single RS485 bus
• Robust and interference-free solution for industrial environments
• Facilitates integration with external systems such as Sunny WebBox or SCADA platforms
• Avoids dependence on wireless or Ethernet networks
• Easy installation with included accessories and clear documentation

Purpose or applications

This module is designed for projects that require a reliable communication network between multiple inverters, especially in industrial, agricultural, or large self-consumption systems. It is compatible with multiple energy monitoring and control platforms based on Modbus.

Technical specifications

Compatibilities

This product is compatible with:

• Sunny Tripower STP 5000TL-20 / 6000TL-20 / 7000TL-20 / 8000TL-20 / 9000TL-20 / 10000TL-20 / 12000TL-20
• Windy Tripower WTP 5000TL-20 up to WTP 9000TL-20

SMA 485BRD-10 RS485 Interface is a professional solution for Tripower inverter communication, enabling reliable and stable remote monitoring in demanding energy systems.
