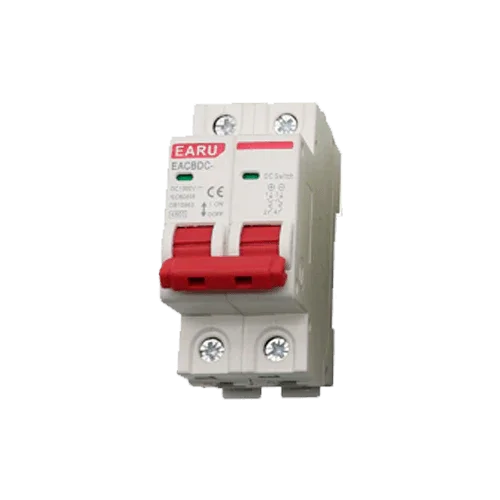

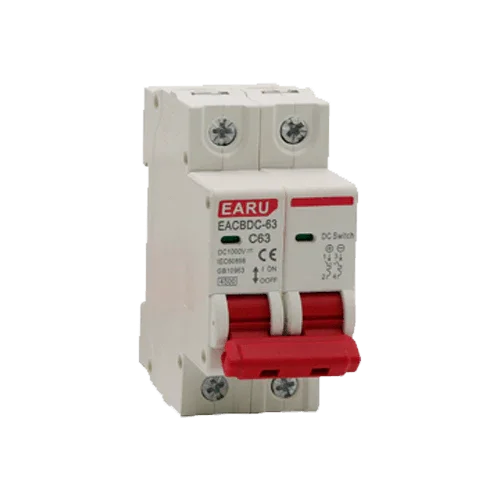

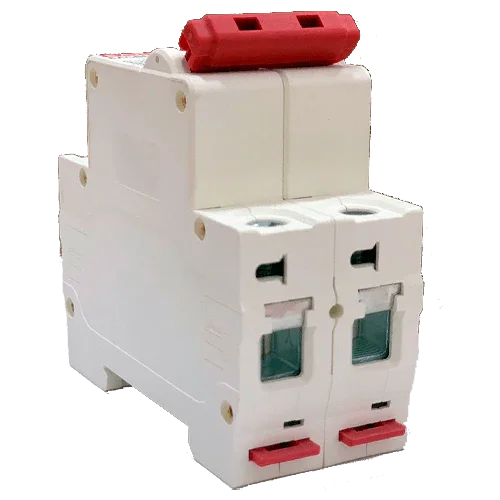

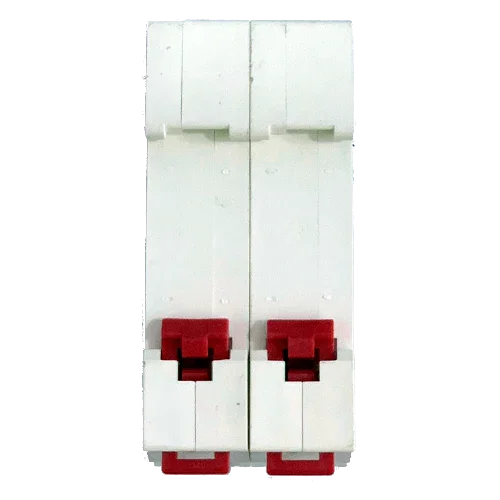

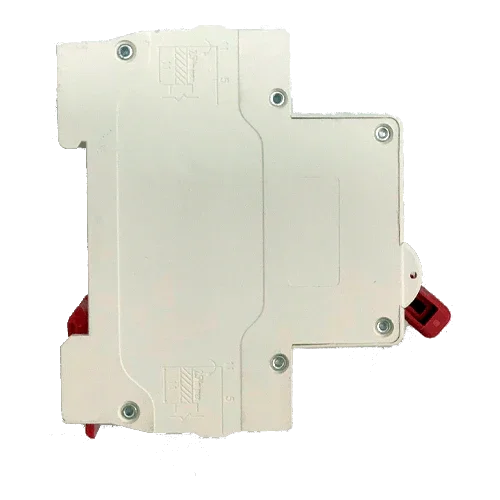

DC Switch EARU MCB 1000V 25A 2P
Modelo: EACBDC-63 - 25A- Sku: EARUPRO004
- Vendor: EARU
Specifications
Product Description
The EARU DC MCB Switch 1000V 25A 2P is a two-pole DC circuit breaker for isolation and protection against overloads/short circuits in photovoltaic strings up to 1000 VDC. Its modular design facilitates DIN rail mounting and coordination with SPD and disconnectors in combiner boxes.
Main Features
- Rated current: 25 A · curve C.
- Permissible voltage: up to 1000 VDC (2P).

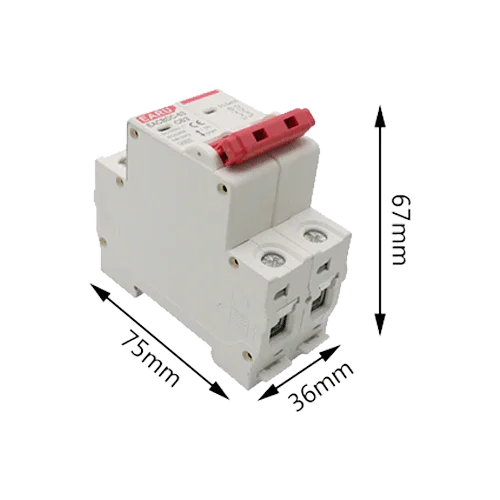

- DIN 35 mm mounting, 2-module width.
- Self-extinguishing material · IP20 in enclosure.
- Compliant with IEC 60898/60947-2 (breaking capacity see nameplate).
Advantages or Benefits
- Safe isolation and disconnection per string for quick maintenance.
- Adaptation of rating to Isc and PV field conditions.
- Clean installation in modular panels.
- Increased plant availability and personnel safety.
Purpose or Applications
PV strings between field and MPPT, subfields in string boxes, and related DC circuits. Not suitable for AC or LV battery banks (use specific protections).
Technical Specifications
| Function | DC MCB protection (breaking capacity according to standard/nameplate) |
| Rated voltage | Up to 1000 VDC (2P) |
| Format | MCB 2P · curve C · DIN 35 mm · IP20 |
| Rated current | 25 A |
Compatibilities
MPPT inputs of solar inverters and DC PV panels. Coordinate with type 2 DC SPD and main disconnector.
EARU DC MCB Switch 1000V 25A 2P is a professional solution for demanding renewable energy projects. It increases safety, optimizes the panel, and improves the efficiency of your installation.
