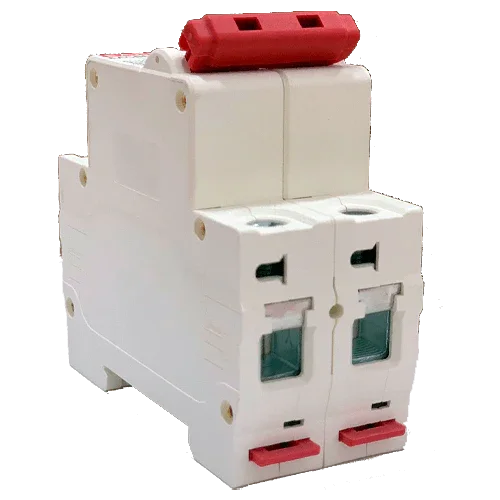

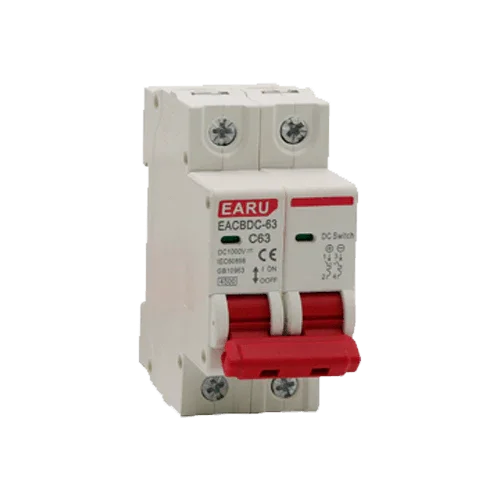

DC Switch EARU MCB 1000V 50A 2P

Product Description

The EARU DC MCB Switch 1000V 50A 2P protects and isolates direct current circuits in demanding solar installations. With a 50 A rating, two poles, and C curve, it operates up to 1000 VDC and integrates into a DIN rail, facilitating coordination with SPD and disconnectors in combiner boxes.

Main Features

• Nominal rating: 50 A · C curve.
• Permissible voltage: up to 1000 VDC (2P).

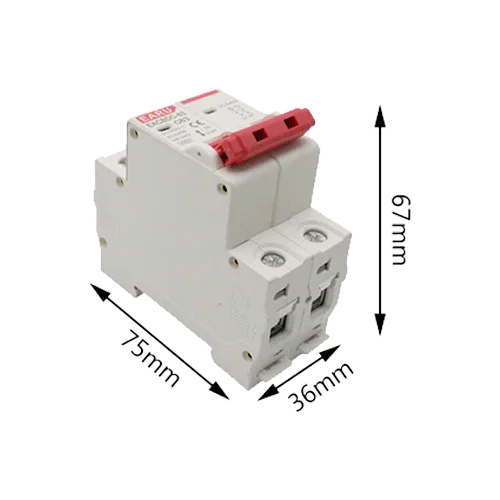

• DIN 35 mm mounting · 2-module width.
• IP20 (in enclosure) · self-extinguishing thermoplastic.
• IEC 60898/60947-2 (breaking capacity see nameplate).

Advantages or Benefits

• Effective protection and visible disconnection per string/subfield.
• Enables safe and quick maintenance.
• Compatible with modular panels and combiner boxes.
• Greater service continuity.

Purpose or Applications

PV strings/subfields and DC lines up to 50 A. Do not use in AC or for LV battery banks (use specific protections).

Technical Specifications

Compatibilities

MPPT inputs, DC PV panels, and combiner boxes. Coordinate with type 2 DC SPD and main disconnector.

EARU DC MCB Switch 1000V 50A 2P is a professional solution for demanding renewable energy projects. It increases safety, optimizes the panel, and improves the efficiency of your installation.
