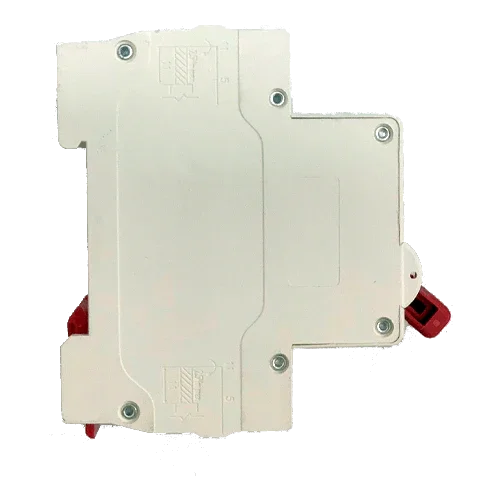

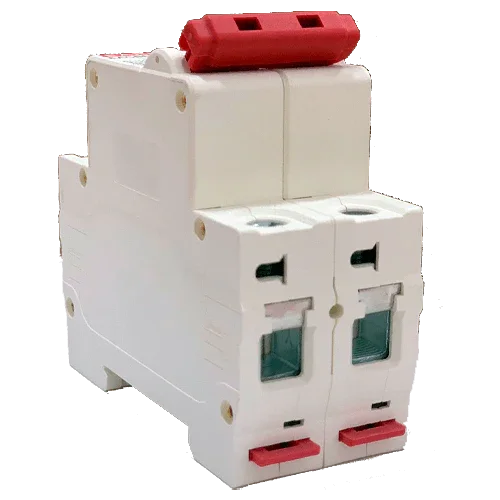

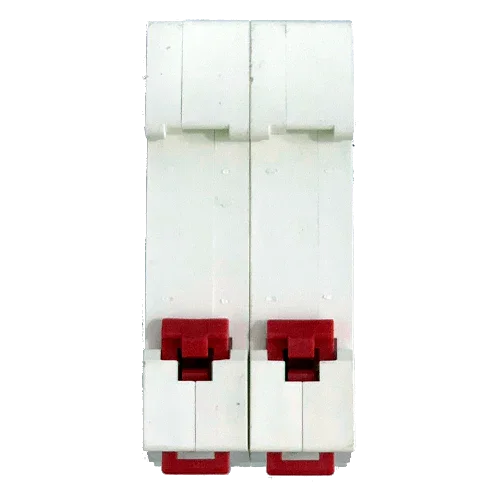

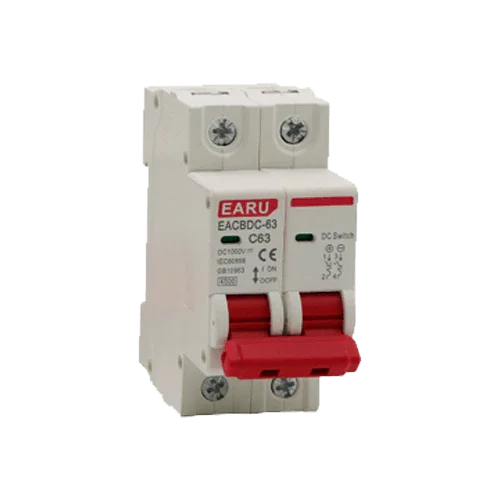

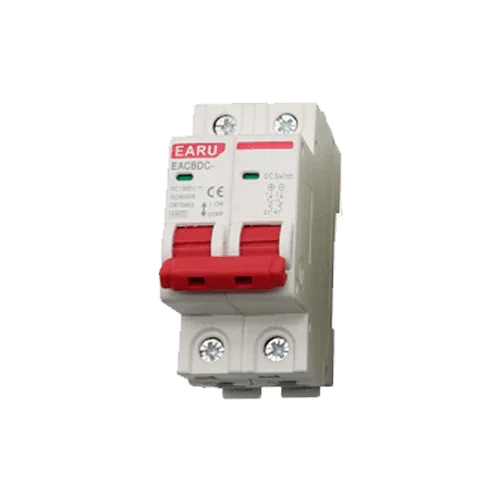

DC Switch EARU MCB 1000V 63A 2P
Modelo: EACBDC-63 - 63A- Sku: EARUPRO002
- Vendor: EARU
Specifications
Product Description
The EARU DC MCB Switch 1000V 63A 2P is the highest-rated model in the series, ideal for strings and subfields with high currents. It offers DC circuit breaker protection, curve C, up to 1000 VDC on two poles and integrates into a DIN rail for a complete and safe DC panel.
Main Features
- Rated current: 63 A · curve C.
- Permissible voltage: up to 1000 VDC (2P).

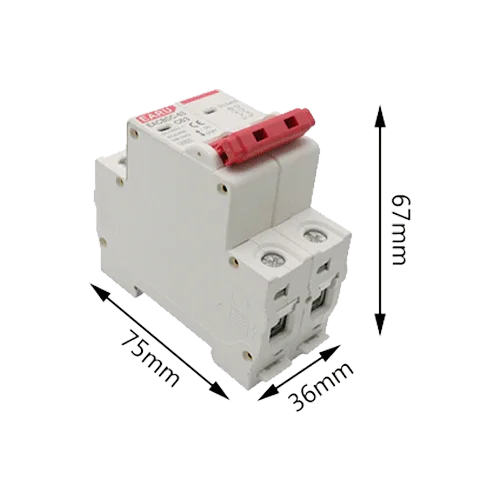

- DIN 35 mm mounting · 2-module width.
- IP20 (in enclosure) · self-extinguishing material.
- Compliant with IEC 60898/60947-2 (breaking capacity see nameplate).
Advantages or Benefits
- Safe disconnection and isolation in high-current DC lines.
- Facilitates maintenance, reduces downtime.
- Compatible with SPD and disconnectors for comprehensive protection.
- Clean modular installation in combiner boxes.
Purpose or Applications
PV strings and subfields up to 63 A, MPPT inputs, and other DC lines. Do not use on AC or as protection for LV banks; use specific solutions.
Technical Specifications
| Power | DC MCB protection (breaking capacity according to standard/nameplate) |
| Rated voltage | Up to 1000 VDC (2P) |
| Format | MCB 2P · curve C · DIN 35 mm · IP20 |
| Rated current | 63 A |
Compatibilities
MPPT inputs of solar inverters, DC PV panels, and combiner boxes. Coordinate with type 2 DC SPD and main generator disconnector.
EARU DC MCB Switch 1000V 63A 2P is a professional solution for demanding renewable energy projects. It increases safety, optimizes the panel, and improves the efficiency of your installation.
