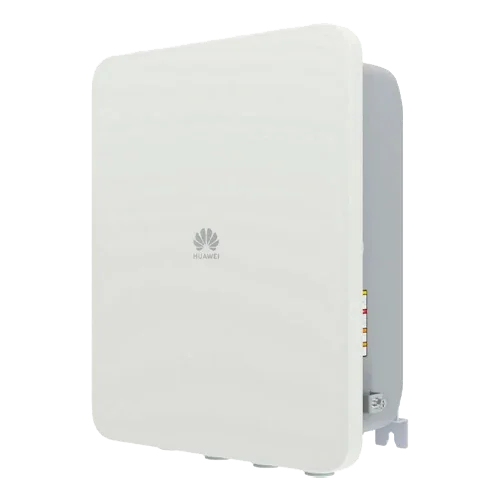

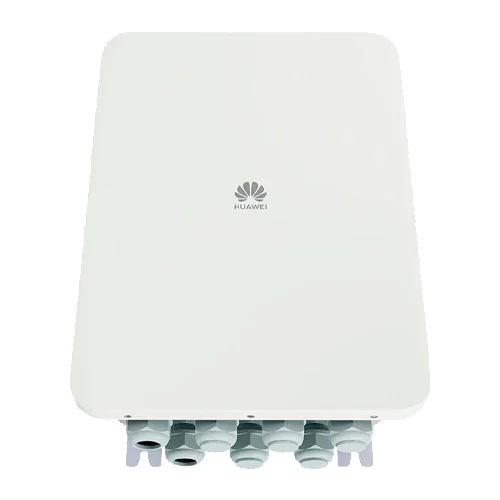

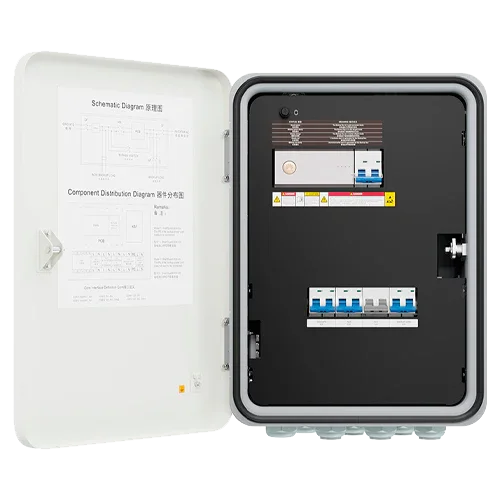

Huawei SmartGuard-63A-S0 switch with intelligent backup
Modelo: SmartGuard-63A-S0- Sku: HUAWACC010
- Vendor: Huawei
Specifications
Product description
The Huawei SmartGuard-63A-S0 switch with intelligent backup is an all-in-one single-phase solution for Huawei residential installations. It integrates whole-home backup, advanced energy management, and home automation functions, all in a single compact and robust device. Its ultra-fast switching capability (≤20 ms) allows sensitive loads to remain powered during grid outages, while intelligently managing battery usage, solar energy, EV charger, and connected devices.
Main features
- Automatic switching to backup mode in ≤20 ms
- Maximum grid and backup current up to 63 A
- Integrated Huawei EMMA controller for energy management
- Management of up to 20 Shelly devices and 1 heat pump
- IP55 protection and passive cooling without a fan
- LAN, Wi-Fi, and RS485 connectivity, no additional modules required
Advantages or benefits
- Prevents interruptions during grid outages with fast and safe switching
- No need for an external backup panel (integrated whole-home backup)
- Allows prioritization of consumption based on solar surplus, battery, or grid
- Manages EV chargers, heat pumps, and smart home devices
- Ideal for modern single-phase residential installations
Purpose or applications
The SmartGuard-63A-S0 is perfect for single-phase homes with a Huawei solar system seeking autonomy, automatic backup, and intelligent load control. It is the ideal solution when you want to avoid external panels, simplify the system, and gain in efficiency, comfort, and safety.
Technical specifications
| Nominal voltage | 220–240 V single-phase |
| Maximum current | 63 A (grid, backup, non-backup) |
| Switching time | ≤ 20 ms |
| Self-consumption | 10 W |
| Bypass mode | Manual |
| Protection | IP55 |
| Dimensions | 485 × 150 × 355 mm |
| Weight | ≤14 kg |
Compatibilities
This product is compatible with: Huawei SUN2000L 2 kW, Huawei SUN2000L 3 kW, Huawei SUN2000L 3.68 kW, Huawei SUN2000L 4 kW, Huawei SUN2000L 4.6 kW, Huawei SUN2000L 5 kW, Huawei SUN2000L 6 kW, Huawei SUN2000 8 kW LC0, Huawei SUN2000 10 kW LC0, Huawei SCharger 7.4 kW Charger.
Huawei SmartGuard-63A-S0 Switch with intelligent backup is the ultimate solution for single-phase homes with solar self-consumption, offering instant backup, home automation control, and energy efficiency without complications.
