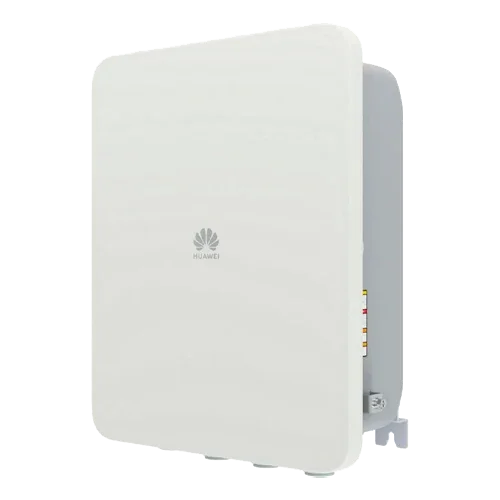

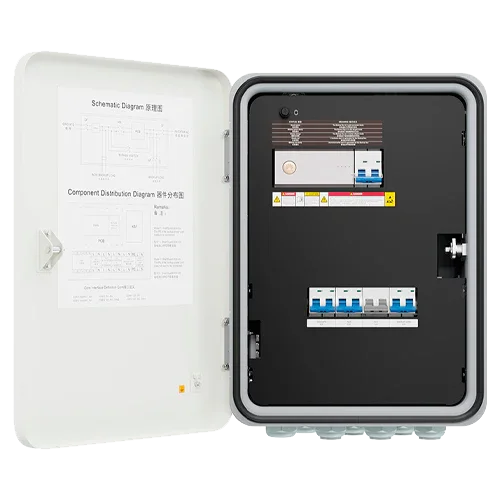

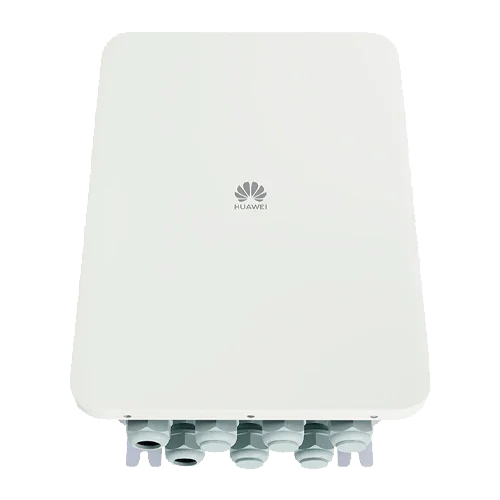

Huawei SmartGuard-63A-T0 three-phase switch with backup
Modelo: SmartGuard-63A-T0- Sku: HUAWACC011
- Vendor: Huawei
Specifications
Product description
The Huawei SmartGuard-63A-T0 three-phase switch with backup is an intelligent switching system that enables full three-phase backup activation in Huawei solar installations, ensuring an ultra-fast transition of ≤20 ms to backup mode. Designed to work alongside SUN2000 hybrid inverters, LUNA2000 batteries, electric vehicle chargers, and home automation devices, it acts as an energy control center for advanced homes seeking continuity, efficiency, and automation.
Main features
- Switching to three-phase backup mode in ≤20 ms (MAP0)
- Simultaneous management of critical and non-critical loads (up to 63 A)
- Native integration with EMMA, VE Huawei chargers, and SG-ready pumps
- Compatible with Shelly devices (up to 20 units)
- IP55 protection and passive cooling without fans
- Control via LAN/WAN/WiFi, RS485, and digital outputs
Advantages or benefits
- Ensures instant backup in three-phase solar installations
- Prevents noticeable interruptions during grid outages
- Enables intelligent control of heat pump, EV charger, and home automation
- Easy integration with the Huawei EMMA platform and SmartLogger
- Manual bypass mode for maintenance without supply interruption
Purpose or applications
The Huawei SmartGuard-63A-T0 is intended for three-phase homes using Huawei SUN2000 hybrid inverters with LUNA2000 batteries. It is especially useful in projects requiring full backup, auxiliary generator control, or integration with intelligent charging, heating, or home automation systems via Shelly and EMMA.
Technical specifications
| Nominal voltage | 380–415 V (three-phase), 220–240 V (single-phase) |
| Maximum current | 63 A (grid, backup, and loads) |
| Switching time | ≤ 20 ms (MAP0), ≤ 100 ms (M1/MB0) |
| Bypass mode | Manual |
| Protection | IP55 |
| Dimensions | 600 × 170 × 490 mm |
| Weight | 17 kg |
| Interfaces | LAN/WAN, WLAN, RS485 x2, digital inputs/outputs |
Compatibilities
This product is compatible with: Huawei SUN2000L 3 kW High Current, Huawei SUN2000L 4 kW High Current, Huawei SUN2000L 5 kW High Current, Huawei SUN2000L 6 kW High Current, Huawei SUN2000L 8 kW High Current, Huawei SUN2000L 10 kW High Current, Huawei LUNA2000 5 kWh, Huawei LUNA2000 10 kWh, Huawei LUNA2000 15 kWh
Huawei SmartGuard-63A-T0 three-phase switch with backup is an all-in-one solution for those seeking total protection, advanced load management, and maximum energy efficiency in their home with Huawei.
