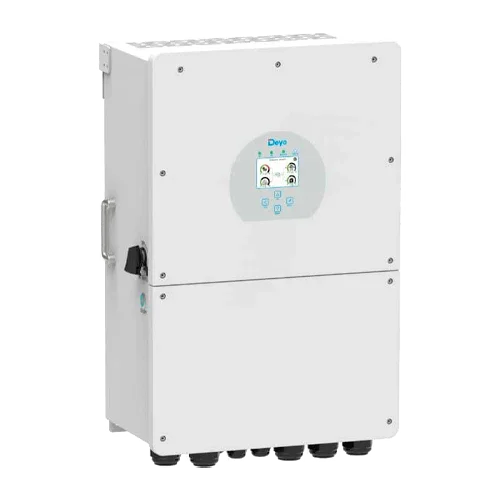

Deye Sun 16kW SG01LP1-EU Single-Phase Hybrid Inverter

Product Description

The Deye Sun 16kW SG01LP1-EU Single-Phase Hybrid Inverter is a 48 V hybrid system designed for single-phase installations that require high continuous power, maximum flexibility, and total energy control. Its architecture with 3 MPPT (two strings per tracker), on-grid and off-grid operation, and EPS mode for backup make this unit the ideal foundation for demanding residential projects and small businesses with high demand peaks. It features a color touch LCD screen, advanced communications, time-of-use (TOU) scheduling, and supports AC coupling to retrofit existing PV installations without redoing the plant.

Main Features

• Nominal AC power of 16 kW single-phase (230 V) with 2× peak in EPS mode for 10 s for critical loads.
• Triple MPPT with 6 inputs (2+2+2), MPPT range 150–425 Vdc, and maximum PV voltage of 500 Vdc for long and efficient strings.
• 48 V battery management with total charge/discharge current up to 290 A, compatible with lithium (CAN/RS485) and lead-acid.
• Parallel operation up to 16 units on-grid or off-grid and AC coupling for integration with existing photovoltaic inverters.
• IP65 protection, intelligent air cooling (≤ 50 dB), and integrated DC isolator and Type II SPD.
• Remote monitoring and control via portal/app; RS485/RS232/CAN as standard and optional Wi-Fi/BT/4G/LAN dongles.

Advantages or Benefits

• Service continuity: EPS output to maintain lighting, ICT, air conditioning, or cameras during grid outages.
• Savings and optimization: 6 charge/discharge periods (TOU) to charge during off-peak hours and self-consume or export during peak hours.
• True scalability: modular parallel growth (up to 16) and compatibility with meter/CT for zero-export.
• Robust installation: IP65 enclosure, OVC III overvoltage category on AC, and efficient cooling for demanding climates.
• Integration flexibility: supports LFP/NMC banks with BMS via CAN/RS485, AGM/GEL, and diesel generator for charging.
• Electrical safety: anti-islanding, RCD/RCMU, DC insulation monitor, polarity protection, short circuit, and overvoltage protection.

Purpose or Applications

Targeted at high-consumption homes, villas with pumps and air conditioning, rural lodges, workshops, and single-phase businesses. It is also ideal for off-grid systems with high start-up peaks, for hybridizing generator sets, and for modernizing existing installations through AC coupling (retrofit), maintaining the previous PV inverter and adding storage.

Technical Specifications

Compatibilities

This product is compatible with 48 V battery banks with BMS via CAN/RS485 (LiFePO₄/NMC) and with AGM/GEL, single-phase meters or CT clamps for zero-export, Wi-Fi/BT/4G/LAN dongles, AC panels, and DC stringboxes with isolators, fuses, and Type II SPD. No internal links to specific models have been provided.

Deye Sun 16kW SG01LP1-EU Single-Phase Hybrid Inverter is a professional solution for demanding renewable energy projects. It increases autonomy, optimizes space, and improves the efficiency of your installation.
