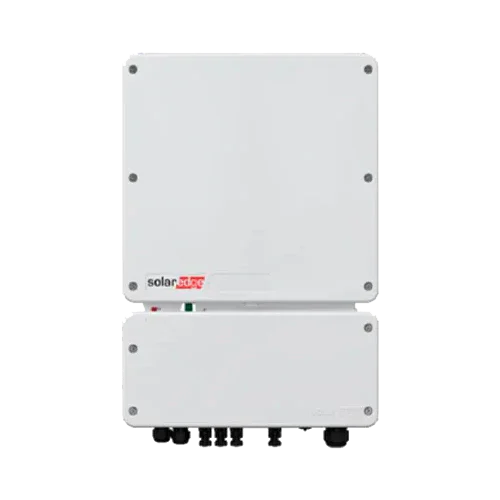

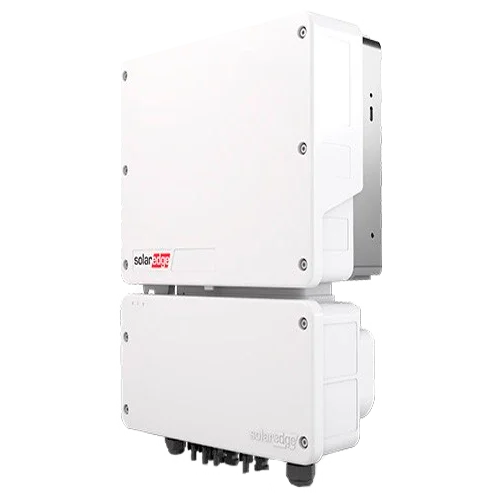

Solar Hybrid Inverter HV SolarEdge SE10000H 10kW Home Hub Single-phase
Modelo: SE10000H Home Hub- Sku: SOEDINV022
- Vendor: SolarEdge
Specifications
Product Description
The SolarEdge SE10000H 10kW Home Hub Single-Phase HV Hybrid Solar Inverter is the high-performance solution for homes with large energy demands seeking to maximize self-consumption, integrate storage, and have backup in case of grid outages. This HV hybrid inverter combines ultra-high efficiency photovoltaic conversion with native management of 400 V SolarEdge Home batteries, all in a compact, silent chassis with IP65 protection for indoor or outdoor installation. Its module-level electronics with optimizers allow for more energy extraction even on roofs with different orientations or shading, and its large DC margin—up to 200% oversizing—enables connection of up to 20,000 W PV to make the most of peak hours and accelerate battery charging.
Main Features
- Nominal AC power: 10 kW single-phase; adjustable power factor; THD < 3%.
- Maximum PV power (DC): 20,000 W (200% oversizing compared to AC power).
- DC voltage: max. 480 V / nominal 380 V with insulation monitoring and rapid shutdown.
- Maximum input current 16 A and Isc 16 A (DC side); maximum AC output (RMS) ≈ 45 A.
- Peak inverter efficiency: 99.2% with detailed module-level monitoring.
- IP65 enclosure, natural convection cooling, and sound level < 25 dBA.
Advantages or Benefits
- Leading production: module-level optimizers and large DC margin increase annual usable energy and reduce losses due to shading.
- Service continuity: prepared for backup interface to supply critical loads during grid interruptions.
- Scalable autonomy: supports up to 3 SolarEdge Home 400 V batteries per inverter, expanding usable kWh as needs grow.
- Professional and fast installation: integrated connection block, commissioning with SetApp, and OTA updates.
- Advanced safety: arc detection, rapid shutdown, and robust communications for reliable and supervised operation.
Purpose or Applications
Designed for homes with high consumption (electric heating/cooling, pool, high-power appliances, electric vehicle) that want to drastically reduce their bill and increase energy independence. The balance of 10 kW AC and 20 kW PV allows coverage of generation peaks, high-power battery charging, and keeping the house operational during outages with essential loads.
Technical Specifications
| Nominal AC power | 10,000 VA (single-phase) |
| AC voltage / frequency range | 220–230 Vac | 50 Hz (184–264.5 Vac) |
| Max. AC current (RMS) | ≈ 45 A |
| Backup mode | Supported with Backup Interface (additional HW; critical load supply) |
| Max. PV power (DC) | 20,000 W |
| DC voltage (max./nom.) | 480 / 380 Vdc |
| Max. input current / Isc | 16 A / 16 A |
| Max. efficiency | 99.2% |
| MPPT / strings | SolarEdge architecture with optimizers (inputs via 2 pairs MC4) |
| Communications | RS485, Ethernet, Home Network; optional WiFi/LTE |
| Dimensions / Weight | 459 × 370 × 154 mm / 12 kg |
| Cooling / Noise | Natural convection / < 25 dBA |
| Operating temperature | −40 to +60 °C |
| Degree of protection | IP65 (indoor/outdoor) |
Compatibilities
Compatible with SolarEdge Home 400 V batteries (up to 3 per inverter), SolarEdge Power Optimizers, and Backup Interface for critical load supply. Native integration with the SolarEdge Smart Energy ecosystem and cloud monitoring.
The SolarEdge SE10000H 10kW Home Hub Single-Phase HV Hybrid Solar Inverter combines power, efficiency, and safety to take your residential self-consumption to the highest level, with high-voltage backup and storage ready from day one.
