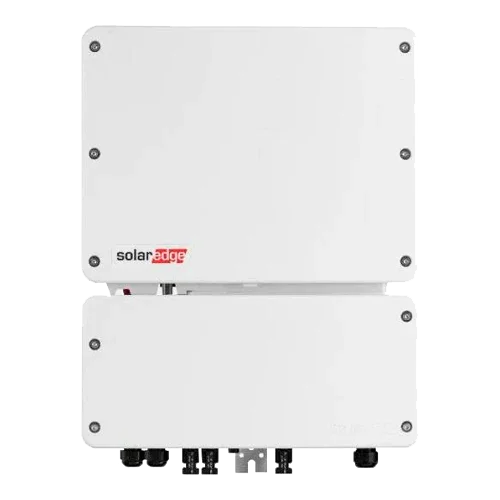

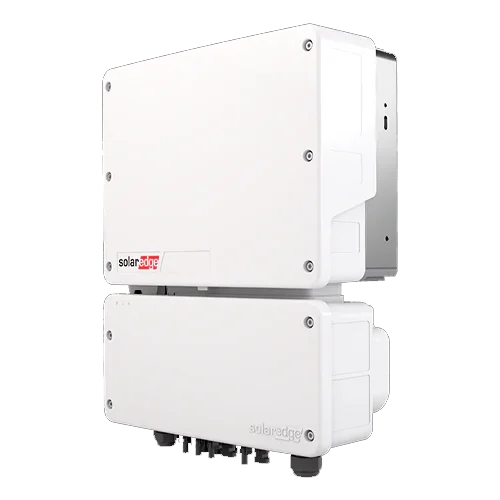

Solar Hybrid Inverter HV SolarEdge SE3000H 3kW Home Hub Single-phase
Modelo: SE3000H Home Hub- Sku: SOEDINV016
- Vendor: SolarEdge
Specifications
Product Description
The SolarEdge SE3000H 3kW Home Hub Single-Phase High Voltage Hybrid Solar Inverter is the heart of residential systems seeking performance, safety, and scalability. It combines photovoltaic management, battery storage, and home backup in a single compact, lightweight, and IP65-rated unit. Thanks to its optimized electronics and commissioning with SetApp, it maximizes production, simplifies installation, and allows you to expand with a 400 V SolarEdge Home battery when needed.
Main Features
- Nominal AC power: 3 kW single-phase with power factor control and THD <3%.
- Up to 200% DC oversizing and maximum PV input power of 6,000 W to cover solar peaks.
- Maximum input voltage of 480 VDC and nominal voltage of 380 VDC with insulation fault detection.
- Maximum input current 9 A and Isc 9 A; maximum RMS output 14 A.
- Inverter peak efficiency of 99.2% with module-level monitoring.
- IP65 enclosure, natural convection cooling, and noise <25 dBA.
Advantages or Benefits
- High-performance self-consumption: SolarEdge electronics to extract more energy from the PV array even with partial shading.
- Home backup: ready for backup with dedicated interface, maintaining essential loads during outages.
- Scalable and future-ready: supports up to 3 SolarEdge Home 400 V batteries per inverter.
- Enhanced management and safety: arc protection, comprehensive monitoring, and remote updates.
- Agile installation: integrated connection unit and commissioning with the SetApp mobile app.
Purpose or Applications
Ideal for single-family homes seeking to reduce electricity bills, increase energy independence, and have backup available. Perfect for residential self-consumption with optimizers and for integration with other Smart Energy devices in the SolarEdge ecosystem.
Technical Specifications
| Nominal AC power | 3,000 VA (single-phase) |
| AC voltage/frequency range | 220–230 Vac | 50 Hz (184–264.5 Vac) |
| Max. AC current (RMS) | 14 A |
| Backup mode | Supported with backup interface (up to 100 A in system; requires additional HW) |
| Max. PV power (DC) | 6,000 W |
| DC voltage (max./nom.) | 480 VDC / 380 VDC |
| Max. input current / Isc | 9 A / 9 A |
| Max. efficiency | 99.2% |
| MPPT/strings | SolarEdge optimized system with optimizers (input via 2 pairs MC4) |
| Communications | RS485, Ethernet, Home Network; optional WiFi/LTE |
| Dimensions / Weight | 459×370×154 mm / 12 kg |
| Cooling / Noise | Natural convection / <25 dBA |
| Operating temperature | −40 to +60 °C |
| Degree of protection | IP65 (indoor/outdoor) |
Compatibilities
Officially compatible with SolarEdge Home 400 V batteries (up to 3 per inverter). Designed to work with SolarEdge Power Optimizers and with the Backup Interface for supplying critical loads.
The SolarEdge SE3000H 3kW Home Hub Single-Phase High Voltage Hybrid Solar Inverter offers maximum efficiency, safety, and a platform ready for the future of self-consumption with storage.
