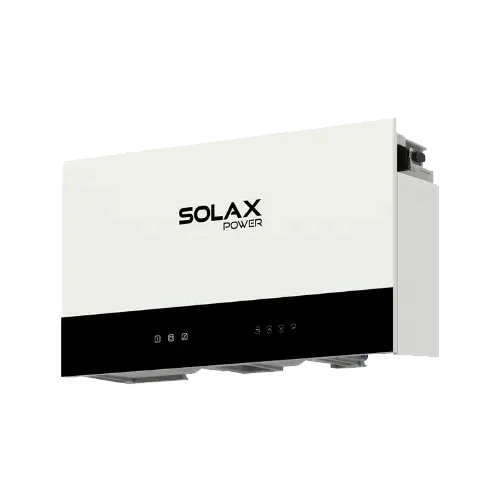

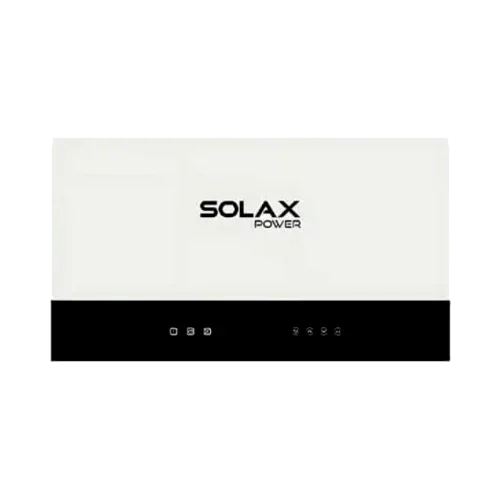

Solax Hybrid Solar Inverter IES 6000W X1-IES-6K Single-phase

Modelo: X1-IES-6K

Sku: SOLXINV022
Vendor: Solax

€1.885,32 EUR

€1.508,25 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Solax X1-IES-6K 6000W elevate your hybrid system with EPS <10 ms, 2 MPPT and IP66. HV battery, export control, and 97.6% efficiency with SolaX Cloud for demanding homes.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Solax X1-IES-6K 6000W is the high-power model of the IES single-phase series. It integrates PV generation, HV battery management, and emergency output (EPS) with switching under 10 ms, to keep critical circuits running during grid outages. Its electronics with 2 independent MPPT allow operation with two strings (e.g., east/west), reducing mismatch losses. The IP66 enclosure, fanless design, and connection to SolaX Cloud ensure robust, silent operation with full control. With 97.6% efficiency and export control via meter/CT, it is a comprehensive platform for homes with higher demand.

Main Features

Nominal AC power: 6 kW (230 V, single-phase) with EPS output for backup.
EPS <10 ms to protect lighting, router, refrigerator, pumps, or home automation.
2 MPPT; approximate MPPT range 40–560 V and max. PV voltage 600 V.
Input current: up to 18 A per MPPT (admissible Isc 22 A), suitable for high-current modules.
Max. efficiency: 97.6%; very low night consumption.
Protection rating IP66, −25 °C … +60 °C; convection cooling (<25 dB).

Advantages or Benefits

Energy independence: store surplus and use it at night or during peak hours to reduce your bill.
Assured continuity with instant backup and prioritization of critical loads.
Flexibility for roofs with multiple orientations or partial shading thanks to the two MPPT.
Outdoor-ready installation: IP66, silent design, and minimal maintenance.
Management and control: zero export and advanced monitoring from SolaX Cloud (WiFi/LAN/4G) with history and alerts.

Purpose or Applications

Designed for homes with 12–20 modules, high consumption (light air conditioning, pool, pumps), and the need for full backup. Ideal when performance, robustness, and intelligent integration with HV battery are required.

Technical Specifications

Nominal AC power	6 000 W
EPS power (backup)	up to 6 000 W; switching < 10 ms
MPPT / Strings	2 / 1 per MPPT
MPPT range	≈ 40–560 V
Max. PV voltage (Voc)	600 V
Max. input current / Isc	up to 18 A per MPPT / 22 A
Max. efficiency	97.6 %
Battery type	Lithium HV with CAN/RS485 communication
Battery voltage range	high voltage (typ. 160–600 V, depending on pack)
Max. AC current	≈ 26.1 A at 230 V
Protection / IP	Anti-islanding, over/undervoltage, overcurrent, thermal / IP66
Communications	CAN/RS485 (battery), RS485/USB/DRM; Pocket WiFi/LAN/4G (optional)
Dimensions / Weight	≈ 404 × 274 × 146 mm / ≈ 14 kg
Operating temperature	−25 … +60 °C

Compatibilities

SolaX IES battery platform (BMS TBMS-MCS0800E, TP-HS50E 5 kWh modules, base, and Series Box). Accessories: meter/CT for zero export, Pocket WiFi/LAN/4G, DataHub for multi-device management, and AC/DC protections with optional RSD/AFCI.

The Solax X1-IES-6K 6000W is a powerful and reliable single-phase hybrid that combines performance, total back-up, and connectivity to take your residential self-consumption to the next level.
