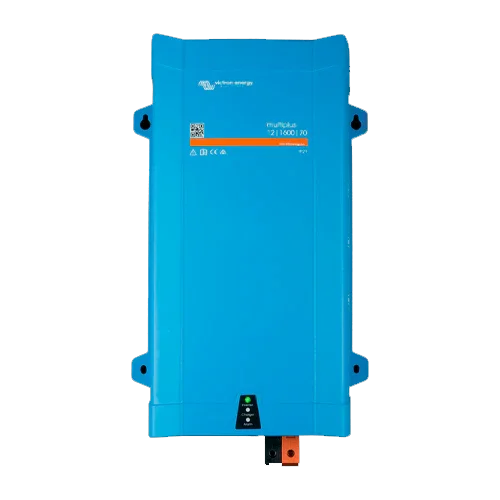

Inverter with Charger Victron MultiPlus 12V 1600VA 12/1600/70-16
Modelo: Multiplus 12/1600/70-16- Sku: VICTINV004
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 12V 1600VA 12/1600/70-16 is a professional solution that combines a pure sine wave 230 V inverter with a high-performance 70 A battery charger. Its power management with PowerControl and PowerAssist prevents overloading the socket or generator and supplements available power during consumption peaks, keeping equipment running with total stability. Thanks to VE.Bus, it can be expanded in parallel or in three-phase and integrates with the Victron ecosystem for local and remote configuration and monitoring.
Main Features
- Continuous power 1300 W at 25 °C (1600 VA); peak 2800 W for loads with high startup.
- Integrated 70 A charger with adaptive algorithm and temperature sensor for lead and lithium.
- 16 A transfer switch with fast changeover between inverter and grid/generator.
- High efficiency (≈93–95 %) and Search Mode with standby consumption ~3 W.
- VE.Bus for parallel operation (up to 6 units) and three-phase option; programmable relay.
- Robust housing, forced ventilation, and wide thermal operating range.
Advantages or Benefits
- Supplies pure sine wave power to sensitive equipment, IT, efficient refrigerators, or light tools.
- Powerful recharging that reduces grid/generator connection times and protects the battery bank.
- Uninterrupted continuity thanks to fast transfer and high peak power.
- Scalable and connectable with GX devices for control, alarms, and data on the VRM portal.
- Low standby consumption that maximizes autonomy in off-grid systems and boats.
Purpose or Applications
Recommended for advanced motorhomes, recreational boats, site cabins, food trucks, and homes with a 12 V solar system where greater charging capacity and power for moderate peaks are required, maintaining Victron reliability.
Technical Specifications
| Inverter power (25 °C) | 1600 VA (1300 W); peak 2800 W |
| Power at 40 / 65 °C | 1100 W / 800 W |
| DC input voltage | 12 V (9.5–17 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max efficiency | ≈93–95 % |
| No-load consumption | ~10 W; Search Mode ~3 W |
| Charger | 70 A; absorption 14.4 V / float 13.8 V / storage 13.2 V |
| Transfer | 16 A |
| PowerControl / PowerAssist | Yes |
| Communications | VE.Bus, programmable relay, DIP switches (no RJ45 splitter required) |
| Protection / IP | Multiple protections; IP21 |
| Dimensions / Weight | 470×265×120 mm; 10.2 kg |
| Operating temperature | −40…+65 °C (ventilated) |
| Certifications | EN/IEC 60335, EN 62109-1, ECE R10-5 |
Compatibilities
Compatible with: Cerbo GX/Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 Smart, SmartShunt, VictronConnect, and VRM portal.
The Victron MultiPlus 12V 1600VA 12/1600/70-16 offers a balanced combination of power, high-amperage charger, and connectivity, ensuring reliable 230 V and intelligent energy management in demanding 12 V systems.
