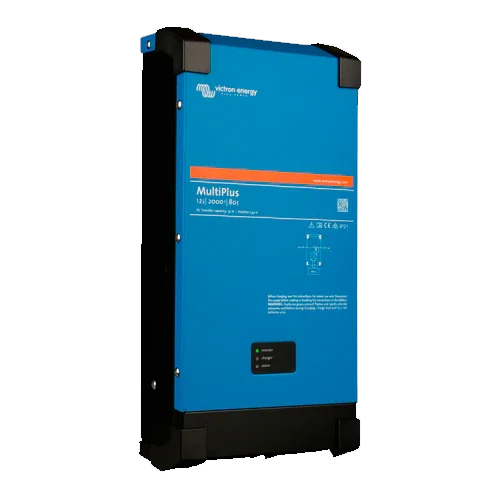

Inverter with Charger Victron MultiPlus 12V 2000VA 12/2000/80-32
Modelo: Multiplus 12/2000/80-32- Sku: VICTINV005
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 12V 2000VA 12/2000/80-32 integrates a pure sine wave inverter of 230 V and a high-performance charger in a compact, professional enclosure. Designed for 12 V systems with more demanding consumption, it offers stable power, fast switching to grid or generator, and an 80 A charger capable of quickly and carefully restoring the battery bank. With PowerControl and PowerAssist, it coordinates the available energy to prevent overloads and supply power from the battery during demand peaks.
Main Features
- Continuous power 1600 W at 25 °C (2000 VA); peak approximately 4000 W for demanding startups.
- Integrated 80 A charger with adaptive algorithm (absorption, float, and storage) and temperature sensor.
- 32 A transfer switch with fast transition between inverter and grid/generator.
- PowerControl/PowerAssist to limit input current and supplement peaks from the battery.
- High efficiency (~94–95 %) and Search Mode to reduce standby consumption.
- VE.Bus for parallel operation (up to 6 units) and three-phase option; programmable relay and GX integration.
Advantages or Benefits
- Pure sine wave that protects and powers sensitive equipment and appliances without noise.
- Powerful and safe recharging that shortens generator run times and extends battery bank life.
- Service continuity: fast transfer keeps critical loads always operational.
- Scalable and connectable: expands in parallel or three-phase and is controlled from app/VRM with real-time data.
- Optimized standby consumption that improves autonomy in off-grid, marine, and mobile applications.
Purpose or Applications
Ideal for well-equipped motorhomes, boats, food trucks, construction site cabins, and 12 V residential solar systems that require stable 230 V, powerful charging, and intelligent peak management.
Technical Specifications
| Inverter power (25 °C) | 2000 VA (≈1600 W); peak ≈4000 W |
| DC input voltage | 12 V (≈9.5–17 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max efficiency | ≈94–95 % |
| No-load consumption | ≈11 W; in Search Mode ≈2–3 W |
| Charger | 80 A; programmable lead-acid (AGM/GEL/open) and lithium profiles |
| Transfer | 32 A |
| PowerControl / PowerAssist | Yes |
| Communications | VE.Bus; programmable relay; GX/VRM integration; VictronConnect |
| Protections / IP | Multiple protections; IP21 |
| Dimensions / Weight | ≈520×255×125 mm; ≈12 kg |
| Operating temperature | −40…+65 °C (forced ventilation) |
| Certifications | EN/IEC 60335, EN 62109-1, ECE R10-5 |
Compatibilities
Compatible with: Cerbo GX or Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 Smart and SmartShunt monitors, VRM portal, and VictronConnect app.
The Victron MultiPlus 12V 2000VA 12/2000/80-32 is the professional choice for 12 V systems that require stable 230 V power, fast recharging, and advanced energy management with total reliability.
