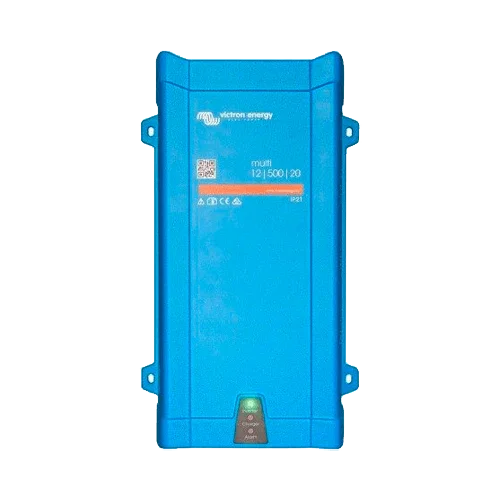

Inverter with Charger Victron MultiPlus 12V 500VA 12/500/20-16
Modelo: Multiplus 12/500/20-16- Sku: VICTINV001
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 12V 500VA 12/500/20-16 combines a sine wave inverter and smart charger in a compact unit, perfect for caravans, boats, and small energy systems. It delivers 230 V pure sine wave with fast switching, a 20 A charger, and advanced management to protect the battery and ensure service continuity.
Main Features
- Continuous power: 430 W at 25 °C (peak 900 W); pure sine wave 230 V 50 Hz.
- Integrated 20 A charger with adaptive algorithm (absorption, float, and storage) and temperature sensor.
- Fast 16 A transfer switch to prioritize grid/generator.
- 12 V DC input (range 9.5–17 V) and high efficiency (≈90%).
- Search Mode to reduce standby consumption to ~2 W and programmable relay.
- VE.Bus communication, DIP switches, and support for remote monitoring with Victron/VRM app.
Advantages or Benefits
- Stable pure sine wave for sensitive electronics and light appliances.
- Faster and safer battery charging that extends battery bank lifespan.
- Seamless switching: continuity for critical equipment.
- Ultra-low standby consumption saves energy when not under load.
- Easy integration into Victron systems with remote control and diagnostics.
Purpose or Applications
Ideal for motorhomes, 4x4s, boats, tiny houses, and small 12 V solar systems where a stable 230 V output and a reliable charger for AGM, GEL, open lead-acid, or lithium batteries are required.
Technical Specifications
| Inverter power | 500 VA (430 W at 25 °C); peak 900 W |
| DC input voltage | 12 V (9.5–17 V) |
| AC output | 230 V ±2%, 50 Hz (adjustable) |
| Max efficiency | ≈90% |
| No-load consumption | ~6 W; in Search Mode ~2 W |
| Charger | 20 A; absorption 14.4 V / float 13.8 V / storage 13.2 V |
| Transfer | 16 A |
| Communications | VE.Bus; programmable relay; DIP switches |
| Protection / IP | Full protections; IP21 |
| Dimensions / Weight | 311×182×100 mm; 4.4 kg |
| Operating temperature | −40…+65 °C (ventilated) |
| Certifications | EN/IEC 60335, EN 62109-1, ECE R10-5 |
Compatibilities
Compatible with: Cerbo GX/Ekrano GX, VE.Bus Smart, Multi Control Digital Panel, MK3-USB Interface, BMV-712 Smart and SmartShunt monitors, VRM portal, and VictronConnect app.
The Victron MultiPlus 12V 500VA 12/500/20-16 offers a professional and compact solution to generate reliable 230 V and take care of your batteries in small mobile and residential applications.
