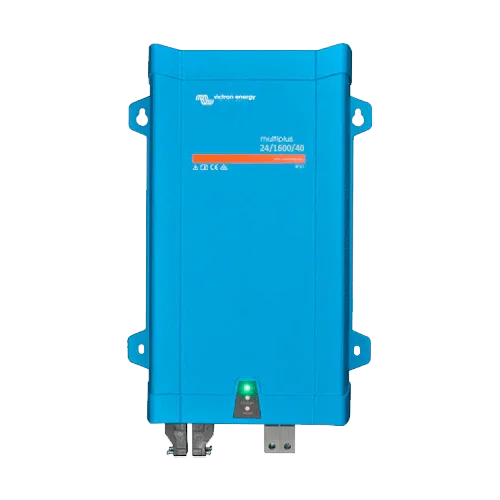

Inverter with Charger Victron MultiPlus 24V 1600VA 24/1600/40-16
Modelo: Multiplus 24/1600/40-16- Sku: VICTINV019
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 24V 1600VA 24/1600/40-16 is a professional unit that combines a sine wave inverter and a high-performance charger in a robust chassis. With 1600 VA of power, a 40 A charger, and 16 A transfer switch, it keeps critical loads powered while optimizing the use of grid or generator. Its PowerControl/PowerAssist management prevents overloads by supplying power from the battery during peaks, and the VE.Bus allows for parallel expansion or three-phase configuration along with advanced monitoring via GX devices and the VRM portal.
Main Features
- Continuous power 1300 W at 25 °C (1600 VA); peak ≈2800 W for starting compressors or pumps.
- Integrated 40 A charger with adaptive algorithm and temperature sensor.
- 16 A transfer switch with fast and stable switching.
- Efficiency ≈93–95% and Search Mode with standby consumption ~3 W.
- VE.Bus for parallel operation (up to 6 units) and three-phase option; programmable relay and DIP switches.
- Ventilated metal housing, designed for continuous use in demanding environments.
Advantages or Benefits
- Delivers 230 V pure sine wave for sensitive electronics and high-consumption appliances.
- Powerful charging reduces generator hours and protects the battery bank.
- Uninterrupted continuity thanks to fast transfer and high peak power.
- Ready for expansion and for remote control, alarms, and data logging in VRM.
- Optimized standby consumption that improves autonomy in off-grid and mobile applications.
Purpose or Applications
Recommended for advanced motorhomes, boats, construction cabins, food trucks, and 24 V solar systems with medium-high consumption that require stable 230 V, a 40 A charger, and intelligent peak management.
Technical Specifications
| Inverter power (25 °C) | 1600 VA (1300 W); peak ≈2800 W |
| DC input voltage | 24 V (≈19–33 V) |
| AC output | 230 V ±2%, 50 Hz (adjustable) |
| Max efficiency | ≈93–95% |
| No-load consumption | ≈10 W; in Search Mode ≈3 W |
| Charger | 40 A; Absorption ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V |
| Transfer | 16 A |
| PowerControl / PowerAssist | Yes |
| Communications | VE.Bus, programmable relay, DIP; GX/VRM integration |
| Protections / IP | Multiple protections; IP21 |
| Dimensions / Weight | ≈470×265×120 mm; ≈10.2 kg |
| Operating temperature | −40…+65 °C (ventilated) |
| Compatible batteries | Lead (AGM/GEL/open) and lithium (configurable parameters) |
Compatibilities
Compatible with: Cerbo GX / Ekrano GX, VE.Bus Smart Dongle, Multi Control Digital Panel, MK3-USB interface, BMV-712 Smart and SmartShunt monitors, VictronConnect, and VRM portal.
The Victron MultiPlus 24V 1600VA 24/1600/40-16 combines power, high-amperage charger, and connectivity to provide reliable 230 V and professional energy management in demanding 24 V systems.
