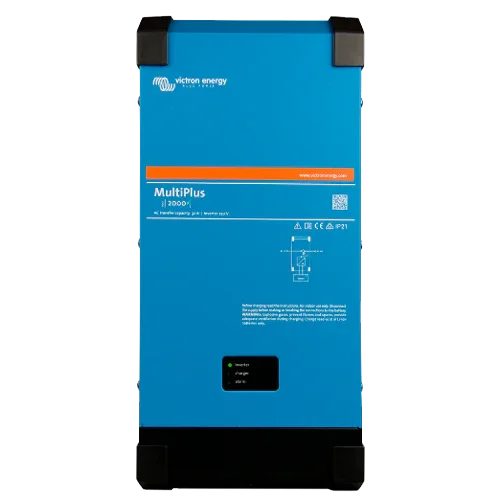

Inverter with Charger Victron MultiPlus 24V 2000VA 24/2000/50-32
Modelo: Multiplus 24/2000/50-32- Sku: VICTINV020
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 24V 2000VA 24/2000/50-32 integrates a highly reliable 230 V sine wave inverter and a 24 V smart charger with 50 A current into a single chassis, designed for installations that require stable power, fast recharging, and advanced energy management. Its automatic 32 A transfer switch ensures service continuity when grid or generator is available, while PowerControl and PowerAssist coordinate the available power to prevent overloads and cover consumption peaks by drawing energy from the battery. It is the professional reference option for motorhomes, boats, and residential solar systems that need sustained performance and complete connectivity.
Main Features
- Inverter power: 2000 VA (≈1600 W continuous at 25 °C) with peaks up to ~4000 W for demanding startups.
- 50 A battery charger with adaptive algorithm (absorption, float, and storage) and temperature compensation.
- 32 A transfer switch with fast and stable switching between inverter and grid/generator.
- PowerControl/PowerAssist management to limit input current and support peaks from the battery.
- High efficiency (≈94–95 %) and Search Mode that reduces standby consumption to ~2–3 W.
- VE.Bus for parallel expansion (up to 6 units) or three-phase operation; programmable relay and integration with GX systems and VRM portal.
Advantages or Benefits
- Pure 230 V sine wave that protects sensitive electronics and appliances, without noise or electrical vibrations.
- Powerful and safe recharging that shortens generator run times, optimizes cycles, and extends battery bank life.
- Uninterrupted continuity: fast transfer and peak power for compressors, pumps, or tools.
- Scalability and total control: possibility to expand in parallel or three-phase and local/remote monitoring in VRM.
- Minimal standby consumption to maximize autonomy in off-grid, marine, and mobile applications.
Purpose or Applications
Ideal for equipped motorhomes and campers, cruising boats, food trucks, site cabins, and homes with a 24 V solar system that require stable 230 V, a high-performance charger, and intelligent management of energy peaks and priorities.
Technical Specifications
| Inverter power (25 °C) | 2000 VA (≈1600 W); peak ≈4000 W |
| DC input voltage | 24 V (≈19–33 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max. efficiency | ≈94–95 % |
| No-load consumption | ≈11 W; Search Mode ≈2–3 W |
| Charger | 50 A; Absorption ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V |
| Transfer | 32 A |
| PowerControl / PowerAssist | Yes |
| Parallel / Three-phase | Up to 6 units in parallel; 3-phase option via VE.Bus |
| Communications | VE.Bus, programmable relay, Cerbo/Ekrano GX integration, VictronConnect and VRM portal |
| Protections / IP | Overvoltage, overtemperature, overload, short circuit; IP21 |
| Dimensions / Weight | ≈520×255×125 mm; ≈12 kg |
| Operating temperature | −40…+65 °C (forced ventilation) |
| Compatible batteries | Lead-acid (AGM/GEL/open) and lithium (configurable parameters) |
| Certifications | EN/IEC 60335, EN 62109-1, ECE R10-5 |
Compatibilities
Compatible with: Cerbo GX or Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 Smart and SmartShunt monitors, as well as the VictronConnect app and the VRM portal.
The Victron MultiPlus 24V 2000VA 24/2000/50-32 provides stable power, fast recharging, and advanced control in 24 V systems that demand professional reliability and the ability to expand without compromising efficiency.
