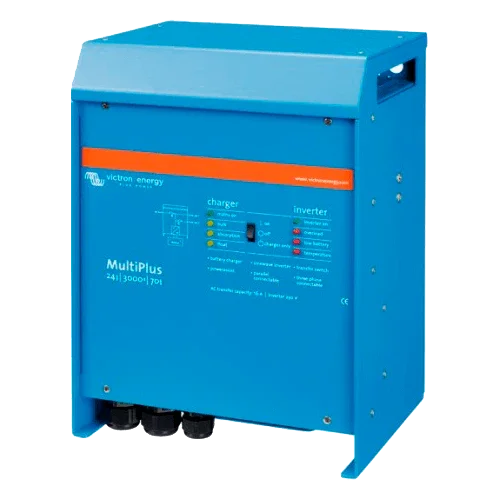

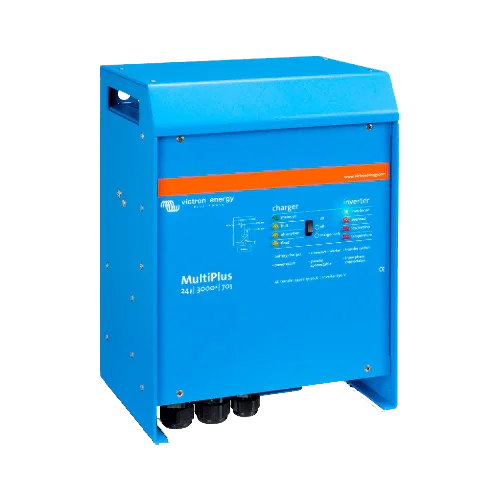

Inverter with Charger Victron MultiPlus 24V 3000VA 24/3000/70-16

Modelo: Multiplus 24/3000/70-16

Sku: VICTINV024
Vendor: Victron

€1.463,20 EUR

€1.170,55 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron MultiPlus 24V 3000VA 24/3000/70-16 is a pure sine wave inverter with charger with 70 A charger, PowerAssist and 16 A transfer, with dual AC output to separate non-critical loads.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Victron MultiPlus 24V 3000VA 24/3000/70-16 integrates a pure sine wave inverter of 3 kVA and a fast 70 A charger in a compact system for 24 V installations. It incorporates PowerControl/PowerAssist to stabilize the grid or generator and supply energy from the battery when demand exceeds the limit, as well as an automatic 16 A transfer switch that acts as a UPS. Includes two AC outputs: a main uninterrupted output and a secondary output that is only powered when AC input is available, ideal for non-critical loads.

Main Features

Inverter power: 3000 VA (≈2500 W continuous); peak ≈6000 W for startups.
Integrated 70 A charger with multi-stage curves for AGM, GEL, and lithium.
Automatic 16 A switching with transfer time <20 ms.
Two AC outputs: main uninterrupted and secondary switched for non-critical loads.
VE.Bus for advanced configuration, monitoring, and parallel operation.
High efficiency and eco/search mode to minimize no-load consumption.

Advantages or Benefits

Uninterrupted continuity for sensitive electronics and communication systems.
Resource optimization: adds power from the battery and prevents circuit breaker trips.
Intelligent load segmentation with its second AC output.
Scalability and total control with Cerbo GX, VictronConnect, and VRM.
Robust installation and simple maintenance with official accessories.

Purpose or Applications

Off-grid homes with multiple circuits, high-end boats and campers, mobile workshops, telecom, and residential UPS at 24 V requiring continuous power and advanced management.

Technical Specifications

Inverter power	3000 VA (≈2500 W continuous); peak ≈6000 W
System voltage	24 Vdc
Charger	70 A; Abs ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V (adjustable)
Switching	Transfer 16 A; UPS <20 ms
AC outputs	Main uninterrupted + secondary switched
Efficiency	≈94 %
No-load consumption	≈10–15 W (search ≈2–3 W)
Communications	VE.Bus; remote on/off; programmable relay
Protections	Overload, short circuit, high/low V, temperature
Protection rating	IP20 (indoor)
Dimensions / Weight	≈362 × 258 × 218 mm / ≈18 kg
Thermal range	−40 … +65 °C (derating with temperature)

Compatibilities

Compatible with: Cerbo GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712/SmartShunt, VictronConnect app, and VRM portal. AC/DC protections and temperature/battery sensors are recommended.

The Victron MultiPlus 24V 3000VA 24/3000/70-16 offers power, control, and flexibility for 24 V installations seeking professional performance and continuity.
