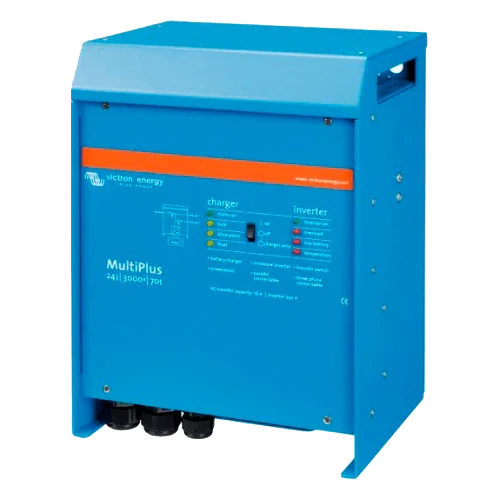

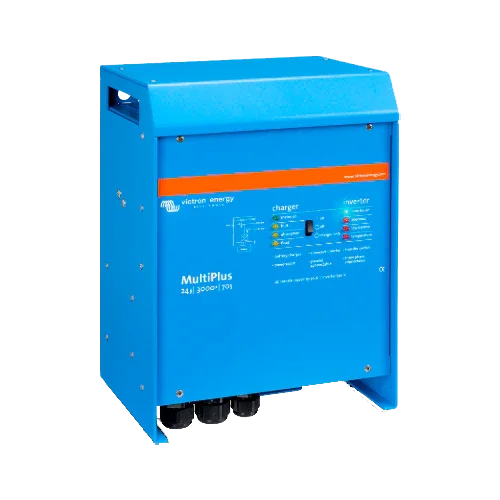

Inverter with Charger Victron MultiPlus 24V 3000VA 24/3000/70-50
Modelo: Multiplus 24/3000/70-50- Sku: VICTINV025
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 24V 3000VA 24/3000/70-50 is the version with reinforced switching (50 A) of the renowned 3 kVA MultiPlus for 24 V systems. It combines a pure sine wave inverter capable of safely powering sensitive electronic equipment with a fast 70 A charger optimized for lead-acid (AGM/GEL) and lithium batteries. Thanks to PowerControl and PowerAssist, it intelligently manages the available AC input power, preventing tripping when the generator or grid connection is limited and adding energy from the battery during demand peaks. Its transfer system acts as a UPS: the switch to battery is virtually instantaneous, maintaining service continuity. In addition, it offers two AC outputs: a main uninterrupted output for critical loads and a secondary output that is only powered when there is grid or generator, ideal for non-essential consumption.
Main Features
- Inverter power: 3000 VA (≈2500 W continuous) with peak ≈6000 W for demanding startups.
- Integrated 70 A charger with multi-stage curves and adjustable voltages for AGM, GEL, and lithium.
- Automatic switching of 50 A (code “-50”) with typical transfer time <20 ms.
- Two AC outputs: main uninterrupted and secondary switched to manage non-critical loads.
- VE.Bus communications for advanced configuration, monitoring, and parallel operation.
- High efficiency and power saving/search modes that reduce the system's idle consumption.
Advantages or Benefits
- Flicker-free continuity: protects routers, IT, and sensitive electronic equipment.
- Superior transfer capacity (50 A): supports more simultaneous loads without bottlenecks.
- Resource optimization: with PowerAssist, the battery supports brief peaks and avoids oversizing generators.
- Intelligent load segmentation through the second AC output for energy priorities.
- Professional integration: local control with VictronConnect and remote via Cerbo GX and VRM portal.
Purpose or Applications
Recommended for off-grid homes at 24 V with multiple circuits and appliances, high-end boats and campers, mobile workshops, small telecommunications installations, and as a light residential/industrial UPS where high transfer capacity and advanced energy management are required.
Technical Specifications
| Inverter power | 3000 VA (≈2500 W continuous); peak ≈6000 W |
| System voltage | 24 Vdc |
| Charger | 70 A; Abs ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V (adjustable) |
| AC switching | Transfer 50 A; typical time <20 ms (UPS mode) |
| AC outputs | Main uninterrupted + secondary switched |
| Waveform | Pure sine wave 230 V / 50 Hz |
| Efficiency | ≈94 % |
| Idle consumption | ≈10–15 W (search mode ≈2–3 W) |
| Communications | VE.Bus; remote on/off; programmable relay |
| Protections | Overload, short circuit, high/low DC voltage, overtemperature, etc. |
| Protection rating | IP20 (indoor use) |
| Dimensions / Weight | ≈362 × 258 × 218 mm / ≈18 kg |
| Operating temperature | −40 … +65 °C (derating with temperature) |
| Battery compatibility | AGM, GEL, and lithium (configurable parameters) |
Compatibilities
Victron accessories and ecosystem: Cerbo GX, VE.Bus Smart Dongle, Multi Control Digital Panel, MK3-USB interface, BMV-712 and SmartShunt monitors, VictronConnect app, and VRM portal. It is recommended to complement with suitable AC/DC protections, contactors, and battery temperature sensors for precise charging.
If your project requires continuous power, robust 50 A transfer, and total control, the Victron MultiPlus 24V 3000VA 24/3000/70-50 offers the reliability, efficiency, and flexibility that characterize Victron in professional 24 V systems.
