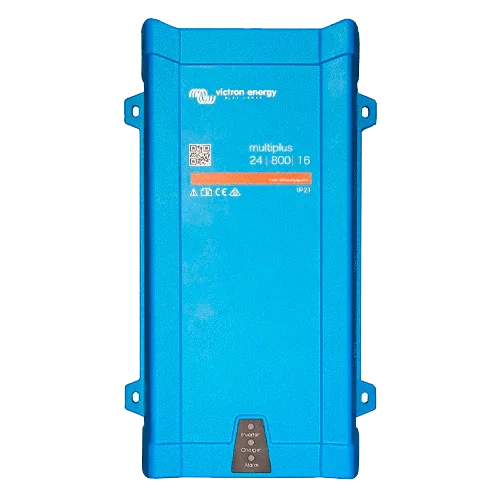

Inverter with Charger Victron MultiPlus 24V 800VA 24/800/16-16
Modelo: Multiplus 24/800/16-16- Sku: VICTINV017
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 24V 800VA 24/800/16-16 takes a leap in capacity while maintaining Victron reliability: it combines a 230 V pure sine wave inverter with a 24 V 16 A smart charger, as well as a 16 A transfer switch and advanced power management. Designed for equipped caravans, recreational boats, and off-grid homes, it provides stability for sensitive loads, efficient battery bank charging, and the ability to operate in parallel or three-phase via VE.Bus to scale the installation as needs grow.
Main Features
- Continuous power: 800 VA (≈700 W at 25 °C); peak ≈1600 W.
- Integrated 16 A charger with adaptive algorithm and temperature sensor.
- 16 A transfer switch with fast changeover (priority to grid/generator).
- DC input 24 V (≈19–33 V) and 230 V 50 Hz pure sine wave output.
- Efficiency ≈92–93 %, Search Mode with standby consumption ≈2 W, and programmable relay.
- PowerControl and PowerAssist to limit input current and support peaks from the battery.
Advantages or Benefits
- Stable 230 V supply for light appliances, chargers, tools, and electronics.
- Safe charging that reduces generator run times and maximizes battery life.
- Service continuity thanks to fast transfer and peak power for startups.
- Scalable: parallel operation (up to 6 units) and three-phase option; full integration with GX/VRM.
- Reduced standby consumption for greater autonomy on routes and at anchor.
Purpose or Applications
Ideal for medium-sized motorhomes, cruising boats, food trucks, site cabins, and 24 V solar systems with moderate consumption, where pure sine wave, integrated charger, and professional-grade power management are required.
Technical Specifications
| Nominal power | 800 VA (≈700 W at 25 °C); peak ≈1600 W |
| DC input voltage | 24 V (≈19–33 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max efficiency | ≈92–93 % |
| No-load consumption | ≈7 W; in Search Mode ≈2 W |
| Charger | 16 A; Absorption ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V |
| Transfer | 16 A |
| PowerControl / PowerAssist | Yes |
| Parallel / Three-phase | Up to 6 units in parallel; 3-phase option via VE.Bus |
| Communications | VE.Bus, programmable relay, DIP; GX/VRM integration |
| Protection / IP | Multiple protections; IP21 |
| Dimensions / Weight | ≈360×240×100 mm; ≈6.5 kg |
| Operating temperature | −40…+65 °C (ventilated) |
| Compatible batteries | Lead (AGM/GEL/open) and lithium (configurable parameters) |
Compatibilities
Compatible with: Cerbo GX / Ekrano GX, VE.Bus Smart Dongle, Multi Control Digital Panel, MK3-USB interface, BMV-712 Smart and SmartShunt monitors, VictronConnect, and VRM portal.
The Victron MultiPlus 24V 800VA 24/800/16-16 is a professional and scalable solution that delivers quality 230 V, efficient charging, and peak management in 24 V systems focused on reliability and growth.
