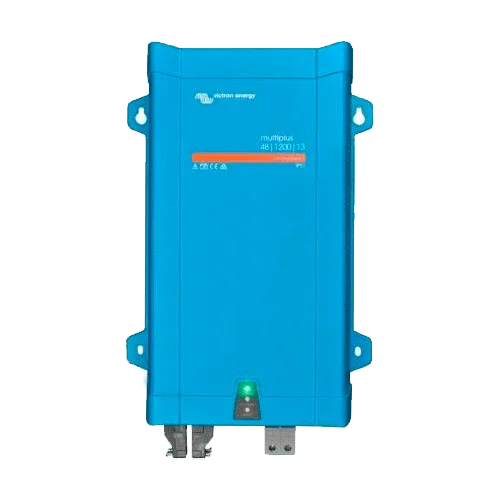

Inverter with Charger Victron MultiPlus 48V 1200VA 48/1200/13-16
Modelo: Multiplus 48/1200/13-16- Sku: VICTINV036
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 48V 1200VA 48/1200/13-16 integrates a 230 V pure sine wave inverter and a 48 V smart charger in a compact, silent, and highly configurable unit. It provides stable power for sensitive electronics, manages demand peaks with PowerAssist, and switches quickly to grid or generator thanks to its 16 A transfer switch. Its 13 A charger, with multi-stage algorithm and temperature compensation, protects and accelerates the recharge of lead or lithium battery banks, maximizing system lifespan.
Main Features
- Continuous power 1000 W at 25 °C (1200 VA); peak power ≈2400 W for demanding startups.
- Integrated 13 A charger with adaptive profiles for AGM, GEL, open lead-acid, and lithium.
- 16 A fast transfer switch: grid/generator priority without flicker.
- PowerControl and PowerAssist to limit input current and support peaks from the battery.
- High efficiency (≈93–95 %) and Search Mode that reduces standby consumption to ~3 W.
- VE.Bus for parallel operation (up to 6 units) or three-phase option; programmable relay and DIP switches.
Advantages or Benefits
- Stable pure sine wave that protects computers, communications, portable medical equipment, and appliances.
- Fast and safe recharge that minimizes generator hours and improves system availability.
- Service continuity: fast transfer and sufficient peak power for compressors and pumps.
- Scalable and connectable: easy expansion and local/remote monitoring with GX devices and VRM portal.
- Very low standby consumption that increases autonomy in off-grid and mobile applications.
Purpose or Applications
Ideal for motorhomes, recreational boats, technical cabins, remote telecommunications, and homes with 48 V solar systems that require reliable 230 V, intelligent peak management, and a well-sized charger.
Technical Specifications
| Inverter power (25 °C) | 1200 VA (1000 W); peak ≈2400 W |
| DC input voltage | 48 V (≈38–66 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max. efficiency | ≈93–95 % |
| No-load consumption | ≈10 W; in Search Mode ≈3 W |
| Charger | 13 A; Absorption ≈57.6 V / Float ≈55.2 V / Storage ≈52.8 V |
| Transfer | 16 A |
| PowerControl / PowerAssist | Yes |
| Communications | VE.Bus, programmable relay, DIP switches |
| Dimensions / Weight | ≈406×250×100 mm; ≈8.2 kg |
| Protection / IP | Multiple protections; IP21 |
| Operating temperature | −40…+65 °C (ventilated) |
| Certifications | EN/IEC 60335, EN 62109-1, ECE R10-5 |
Compatibilities
Compatible with Cerbo GX/Ekrano GX, VE.Bus Smart Dongle, Multi Control Digital Panel, MK3-USB interface, BMV-712 Smart monitors and SmartShunt, VictronConnect, and VRM portal.
The Victron MultiPlus 48V 1200VA 48/1200/13-16 offers the perfect balance between power, energy management, and connectivity for 48 V systems that demand professional reliability and growth potential.
