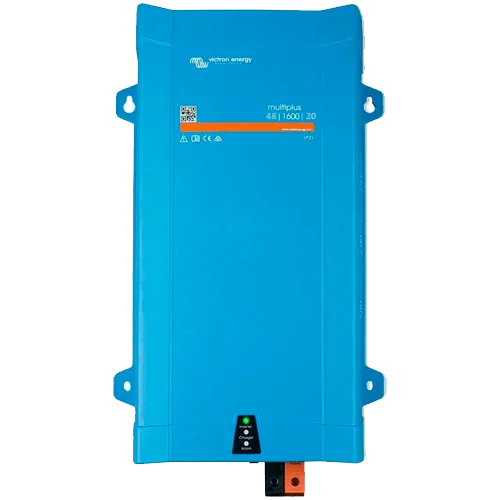

Inverter with Charger Victron MultiPlus 48V 1600VA 48/1600/20-16
Modelo: Multiplus 48/1600/20-16- Sku: VICTINV037
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 48V 1600VA 48/1600/20-16 combines a pure sine wave 230 V inverter with a powerful 20 A charger and a 16 A transfer switch in a compact, professional metal chassis. Designed for 48 V installations that require higher continuous and peak power, it maintains the stability of critical equipment and optimizes grid or generator use with PowerControl and PowerAssist. Its high-efficiency electronics, Search Mode, and adaptive charging algorithm maximize autonomy and extend the life of the battery bank.
Main Features
- Continuous power 1300 W at 25 °C (1600 VA); peak power ≈2800 W.
- Multi-stage charger of 20 A with thermal compensation for lead and lithium.
- 16 A transfer switch with fast and stable switching between inverter and grid/generator.
- Efficiency ≈93–95 % and Search Mode with standby consumption ~3 W.
- VE.Bus for parallel (up to 6 units) or three-phase option; programmable relay and full integration with GX/VRM.
- Robust housing, forced ventilation, and wide thermal operating range.
Advantages or Benefits
- Pure sine wave that protects and powers sensitive electronics and appliances with high start-up peaks.
- Powerful recharging that reduces generator hours and improves system availability.
- Uninterrupted continuity thanks to fast transfer and high peak power.
- Scalable and monitorable: parallel/three-phase expansion and remote control with alarms and logs.
- Optimized standby consumption for greater autonomy in off-grid, marine, and mobile applications.
Purpose or Applications
Recommended for advanced campers, cruising vessels, technical cabins, food trucks, and homes with 48 V PV systems that require stable 230 V, a 20 A charger, and peak management without compromising efficiency.
Technical Specifications
| Inverter power (25 °C) | 1600 VA (1300 W); peak ≈2800 W |
| DC input voltage | 48 V (≈38–66 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max. efficiency | ≈93–95 % |
| No-load consumption | ≈10 W; in Search Mode ≈3 W |
| Charger | 20 A; Absorption ≈57.6 V / Float ≈55.2 V / Storage ≈52.8 V |
| Transfer | 16 A |
| PowerControl / PowerAssist | Yes |
| Communications | VE.Bus; programmable relay; DIP switches; GX/VRM integration |
| Dimensions / Weight | ≈470×265×120 mm; ≈10.2 kg |
| Protection / IP | Multiple protections; IP21 |
| Operating temperature | −40…+65 °C (ventilated) |
| Certifications | EN/IEC 60335, EN 62109-1, ECE R10-5 |
Compatibilities
Compatible with Cerbo GX/Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 Smart, SmartShunt, VictronConnect app, and VRM portal.
The Victron MultiPlus 48V 1600VA 48/1600/20-16 provides reliable power, fast recharging, and advanced control for 48 V systems that require sustained performance and the ability to handle peaks with complete safety.
