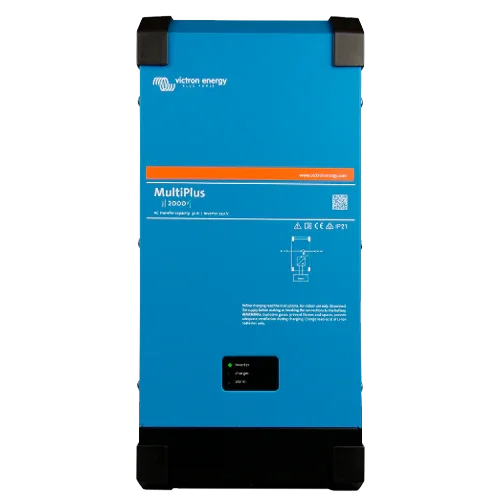

Inverter with Charger Victron MultiPlus 48V 2000VA 48/2000/25-32
Modelo: Multiplus 48/2000/25-32- Sku: VICTINV038
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 48V 2000VA 48/2000/25-32 combines a 230 V pure sine wave inverter and a 48 V smart charger with 25 A current in a single chassis. It is designed for 48 V installations that require sustained power, high peak capacity, and service continuity when connected to the grid or a generator, while maintaining optimal recharging of the battery bank. Thanks to PowerControl and PowerAssist, it manages the available power without tripping or voltage drops, while the 32 A transfer switch ensures a fast and stable transition between sources.
Main Features
- Continuous power: 2000 VA (≈1600 W at 25 °C); peak power ≈4000 W for demanding startups.
- Multi-stage charger of 25 A with temperature compensation and profiles for lead-acid and lithium.
- 32 A transfer switch with rapid changeover between inverter and grid/generator.
- PowerControl/PowerAssist: limits input current and supplies power from the battery during peaks.
- High efficiency (≈94–95 %) and Search Mode with standby consumption ~2–3 W.
- VE.Bus for parallel operation (up to 6 units) or three-phase option; programmable relay and integration with GX devices.
Advantages or Benefits
- 230 V pure sine wave that protects sensitive electronics and appliances.
- Fast and safe recharging that reduces generator hours and extends battery bank life.
- Uninterrupted continuity thanks to the 32 A transfer and high peak power.
- Scalable and connectable: ready to expand in parallel or three-phase with remote monitoring.
- Optimized standby consumption that increases autonomy in off-grid and mobile applications.
Purpose or Applications
Ideal for boats, high-demand motorhomes, technical cabins, food trucks, and homes with 48 V PV systems that require stable 230 V, peak management, and a charger sized for medium banks.
Technical Specifications
| Inverter power (25 °C) | 2000 VA (≈1600 W); peak ≈4000 W |
| DC input voltage | 48 V (≈38–66 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max. efficiency | ≈94–95 % |
| No-load consumption | ≈11 W; in Search Mode ≈2–3 W |
| Charger | 25 A; Absorption ≈57.6 V / Float ≈55.2 V / Storage ≈52.8 V |
| Transfer | 32 A |
| PowerControl / PowerAssist | Yes |
| Parallel / Three-phase | Up to 6 units in parallel; 3-phase option via VE.Bus |
| Communications | VE.Bus, programmable relay, configuration via DIP and VictronConnect app |
| Protections / IP | Overload, short circuit, overtemperature, undervoltage/overvoltage; IP21 |
| Dimensions / Weight | ≈520×255×125 mm; ≈12 kg |
| Operating temperature | −40…+65 °C (forced ventilation) |
| Compatible batteries | Lead-acid (AGM/GEL/open) and lithium (configurable parameters) |
Compatibilities
This product is compatible with: Cerbo GX / Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 Smart monitors, and SmartShunt. Full integration with the VRM portal and VictronConnect app.
The Victron MultiPlus 48V 2000VA 48/2000/25-32 is the professional choice for 48 V systems that demand stable power, efficient recharging, and advanced control, with the reliability and scalability of the Victron ecosystem.
