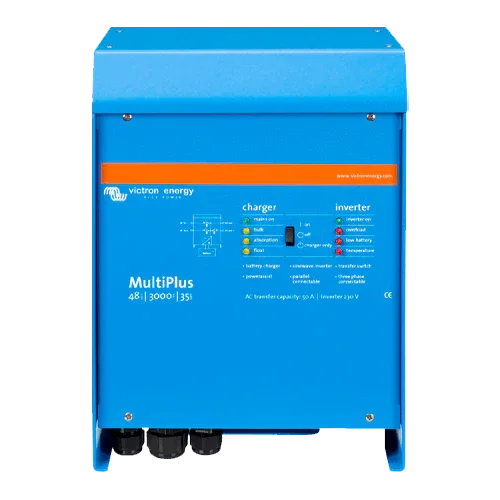

Inverter with Charger Victron MultiPlus 48V 3000VA 48/3000/35-50
Modelo: Multiplus 48/3000/35-50- Sku: VICTINV040
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 48V 3000VA 48/3000/35-50 integrates a pure sine wave inverter of 3 kVA and a 35 A smart charger in a single robust unit for 48 V systems. Its high-performance electronics ensure stable 230 V power supply, while PowerControl and PowerAssist dynamically manage the available AC input power to prevent tripping and support peaks from the battery. The reinforced 50 A transfer switch acts as a UPS, with a very fast transfer time that protects sensitive electronics. It incorporates two AC outputs to prioritize critical loads and automatically disconnect non-essential ones when there is no grid or generator.
Main Features
- Inverter power: 3000 VA (≈2500 W continuous); peak ≈6000 W for demanding startups.
- 35 A charger with multi-stage curves and configurable voltages for AGM, GEL, and lithium.
- Automatic 50 A transfer switch (code “-50”) with typical transfer time <20 ms.
- Two AC outputs: main uninterrupted and secondary switched for non-critical loads.
- VE.Bus for configuration, monitoring, parallel operation, and three-phase systems with multiple units.
- High efficiency and eco/search modes to minimize idle consumption.
Advantages or Benefits
- Seamless continuity: keeps routers, IT, and control systems running during micro-outages.
- Superior transfer capacity (50 A): supports more simultaneous loads without bottlenecks.
- Optimizes grid connection or generator: the battery supports peaks, avoiding oversizing equipment.
- Load segmentation: separates priority loads on the main output and non-critical ones on the secondary.
- Professional scalability with Cerbo GX, VictronConnect, and VRM portal for local and remote control.
Purpose or Applications
Off-grid homes at 48 V with multiple circuits, high-end boats and campers, mobile workshops, telecom/IT, and light residential/industrial backup systems with priority on continuity and control.
Technical Specifications
| Inverter power | 3000 VA (≈2500 W continuous); peak ≈6000 W |
| System voltage | 48 Vdc |
| Charger | 35 A; Abs ≈57.6 V / Float ≈55.2 V / Storage ≈52.8 V (adjustable) |
| AC transfer | Transfer 50 A; UPS <20 ms |
| AC outputs | Main uninterrupted + secondary switched |
| Waveform | Pure sine wave 230 V / 50 Hz |
| Efficiency | ≈94 % |
| Idle consumption | ≈10–15 W (search mode ≈2–3 W) |
| Communications | VE.Bus; remote on/off; programmable relay |
| Protections | Overload, short circuit, high/low DC voltage, temperature |
| Protection rating | IP20 (indoor) |
| Dimensions / Weight | ≈362 × 258 × 218 mm / ≈18 kg |
| Thermal range | −40 … +65 °C (derating with temperature) |
Compatibilities
Victron accessories and ecosystem: Cerbo GX, VE.Bus Smart Dongle, Multi Control Digital Panel, MK3-USB interface, BMV-712 and SmartShunt monitors, VictronConnect app, and VRM portal. AC/DC protections and battery temperature sensor are recommended.
The Victron MultiPlus 48V 3000VA 48/3000/35-50 is the professional choice for 48 V installations seeking continuous power, 50 A transfer, and high-level energy management.
