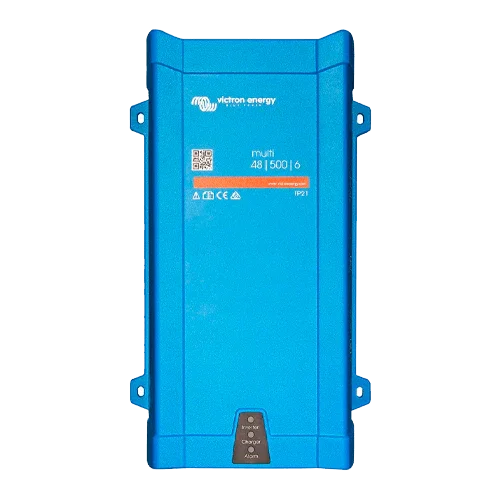

Inverter with Charger Victron MultiPlus 48V 500VA 48/500/6-16
Modelo: Multiplus 48/500/6-16- Sku: VICTINV034
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 48V 500VA 48/500/6-16 combines a 230 V sine wave inverter and a 48 V 6 A smart charger in a single unit. Designed for applications with limited space, it provides clean power for sensitive electronics, fast switching when grid or generator is available, and advanced battery management that extends battery life. It is the ideal solution for auxiliary systems in boats, service vehicles, telecommunications, remote instrumentation, or small off-grid 48 V solar systems.
Main Features
- Continuous power: 500 VA (≈430 W at 25 °C); peak power ≈900 W.
- Multi-stage charger of 6 A with temperature compensation.
- Fast 16 A transfer switch to prioritize grid/generator.
- DC input 48 V (typical range 38–66 V); 230 V 50 Hz pure sine output.
- Efficiency ≈90 % and Search Mode with very low standby consumption (~2 W).
- VE.Bus for configuration, monitoring, and expansion; programmable relay.
Advantages or Benefits
- Protects delicate equipment thanks to pure sine wave and stable regulation.
- Adaptive charging cares for the battery (AGM, GEL, open lead-acid, or lithium) and shortens recharge times.
- Service continuity: fast transfer reduces downtime and micro-outages.
- Ultra-low standby consumption to maximize autonomy in off-grid systems.
- Total integration with the Victron ecosystem: local and remote control, alarms, and logs.
Purpose or Applications
Recommended for use in remote instrumentation, radios, routers, small efficient refrigerators, tool chargers, and LED lighting in 48 V systems for marine, technical camper, cabins, communication towers, and homes with light consumption.
Technical Specifications
| Inverter power | 500 VA (≈430 W); peak ≈900 W |
| DC input voltage | 48 V (≈38–66 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max. efficiency | ≈90 % |
| No-load consumption | ≈6 W; Search Mode ≈2 W |
| Charger | 6 A; Absorption ≈57.6 V / Float ≈55.2 V / Storage ≈52.8 V |
| Transfer | 16 A |
| Communications | VE.Bus, programmable relay, DIP switches |
| Protection / IP | Full protections; IP21 |
| Dimensions / Weight | ≈311×182×100 mm; ≈4.4 kg |
| Operating temperature | −40…+65 °C (ventilated) |
Compatibilities
Compatible with Cerbo GX/Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 Smart, SmartShunt, VictronConnect app, and VRM portal.
The Victron MultiPlus 48V 500VA 48/500/6-16 guarantees reliable 230 V and precise charging in compact 48 V systems that demand maximum efficiency and professional reliability.
