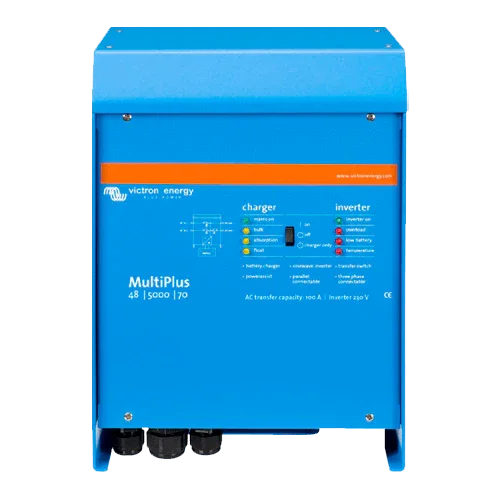

Inverter with Charger Victron MultiPlus 48V 5000VA 48/5000/70-100
Modelo: Multiplus 48/5000/70-100- Sku: VICTINV045
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 48V 5000VA 48/5000/70-100 is a high-power device for 48 V systems that integrates a pure sine wave inverter of 5 kVA and a fast 70 A charger. Designed for large off-grid or backup installations, it combines advanced energy control with PowerControl and PowerAssist to stabilize limited grid connections or generators, adding power from the battery during demand peaks. Its reinforced 100 A AC transfer acts as a UPS with ultra-fast transfer, keeping critical equipment operational. It features two AC outputs to prioritize essential loads and automatically disconnect non-critical ones when there is no AC input.
Main Features
- Inverter power: 5000 VA (≈4000 W continuous) with high peak for demanding startups.
- Integrated 70 A charger with multi-stage curves and adjustable parameters for AGM, GEL, and lithium.
- Automatic 100 A transfer (code “-100”) with typical transfer time <20 ms.
- Two AC outputs: main uninterrupted and secondary switched for non-essential loads.
- VE.Bus for configuration, monitoring, and operation in parallel or in three-phase systems with multiple units.
- Very high efficiency and saver/search modes that reduce system idle consumption.
Advantages or Benefits
- Flicker-free continuity: protects processes, light servers, communications, and control.
- Leading transfer capacity (100 A): handles panels with multiple lines and simultaneous loads.
- Optimizes generator/input: prevents tripping and reduces costs by avoiding oversizing sources.
- Professional scalability: possibility to expand in parallel or in 3 phases with multiple units.
- Efficient battery management that extends service life and improves overall system performance.
Purpose or Applications
Off-grid and commercial homes with high consumption, boats and well-equipped campers, mobile workshops, telecom/IT, residential/light industrial backup systems, and three-phase configurations with multiple devices at 48 V.
Technical Specifications
| Inverter power | 5000 VA (≈4000 W continuous); high peak |
| System voltage | 48 Vdc |
| Charger | 70 A; Abs ≈57.6 V / Float ≈55.2 V / Storage ≈52.8 V (adjustable) |
| AC transfer | Transfer 100 A; UPS <20 ms |
| AC outputs | Main uninterrupted + secondary switched |
| Waveform | Pure sine wave 230 V / 50 Hz |
| Efficiency | ≈94–95 % |
| Idle consumption | ≈15–20 W (search mode ≈3–4 W) |
| Communications | VE.Bus; remote on/off; programmable relay |
| Protections | Overload, short circuit, high/low DC V, overtemperature |
| Protection rating | IP20 (indoor use) |
| Dimensions / Weight | ≈444 × 328 × 240 mm / ≈30 kg |
| Thermal range | −40 … +65 °C (derating with temperature) |
Compatibilities
Victron ecosystem: Cerbo GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712 and SmartShunt monitors, VictronConnect app, and VRM portal. It is recommended to complement with AC/DC protections, contactors, and battery temperature sensor.
The Victron MultiPlus 48V 5000VA 48/5000/70-100 provides real power, 100 A transfer, and total control for 48 V projects that demand professional reliability and expandability.
