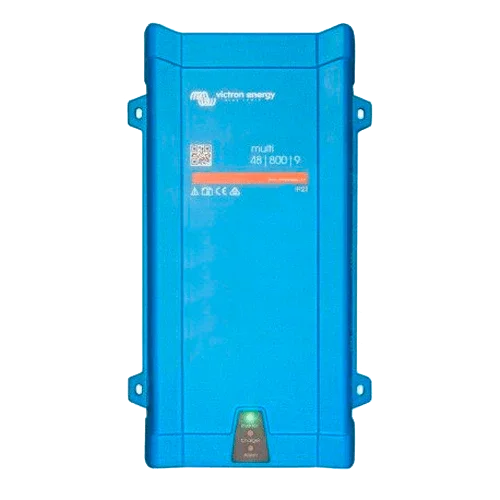

Inverter with Charger Victron MultiPlus 48V 800VA 48/800/9-16
Modelo: Multiplus 48/800/9-16- Sku: VICTINV035
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus 48V 800VA 48/800/9-16 offers a perfect balance between size and performance for 48 V systems that require greater capacity. It combines a 230 V sine wave inverter with a 9 A smart charger and 16 A transfer switch, maintaining the supply to sensitive loads and recharging the battery bank with adaptive profiles. The PowerControl and PowerAssist functions optimize the use of the grid or generator, preventing overload trips and providing power from the battery during demand peaks. With VE.Bus, it integrates and expands easily within the Victron ecosystem, with local/remote control and data logging.
Main Features
- Continuous power: 800 VA (≈700 W at 25 °C); peak ≈1600 W.
- Multi-stage charger of 9 A with temperature compensation and profiles for lead and lithium.
- 16 A transfer switch with fast and stable switching.
- DC input 48 V (≈38–66 V); output 230 V 50 Hz pure sine wave.
- Efficiency ≈92–93 %; Search Mode with standby consumption ≈2 W; programmable relay.
- VE.Bus for parallel (up to 6 units) and three-phase option; configuration via DIP/app.
Advantages or Benefits
- Clean energy for light appliances, IT, telecommunications, and portable medical equipment.
- Safe recharging that reduces generator hours and extends battery life.
- Uninterrupted continuity thanks to fast transfer and peak power.
- Scalable and connectable with GX devices for control, alarms, and data in VRM.
- Minimal standby consumption to improve autonomy in off-grid and mobile applications.
Purpose or Applications
Designed for well-equipped caravans, cruising boats, technical cabins, food trucks, and homes with a 48 V solar kit that require stable 230 V, integrated charger, and peak management without oversizing.
Technical Specifications
| Inverter power | 800 VA (≈700 W); peak ≈1600 W |
| DC input voltage | 48 V (≈38–66 V) |
| AC output | 230 V ±2 %, 50 Hz (adjustable) |
| Max. efficiency | ≈92–93 % |
| No-load consumption | ≈7 W; Search Mode ≈2 W |
| Charger | 9 A; Absorption ≈57.6 V / Float ≈55.2 V / Storage ≈52.8 V |
| Transfer | 16 A |
| PowerControl / PowerAssist | Yes |
| Parallel / Three-phase | Up to 6 units in parallel; 3-phase option via VE.Bus |
| Communications | VE.Bus; programmable relay; GX/VRM integration; VictronConnect |
| Protection / IP | Multiple protections; IP21 |
| Dimensions / Weight | ≈360×240×100 mm; ≈6.4 kg |
| Operating temperature | −40…+65 °C (active ventilation) |
Compatibilities
Compatible with Cerbo GX and Ekrano GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB, BMV-712 Smart and SmartShunt, as well as the VictronConnect app and VRM portal.
The Victron MultiPlus 48V 800VA 48/800/9-16 provides stable power, efficient charging, and advanced control in 48 V systems that require reliability and scalability.
