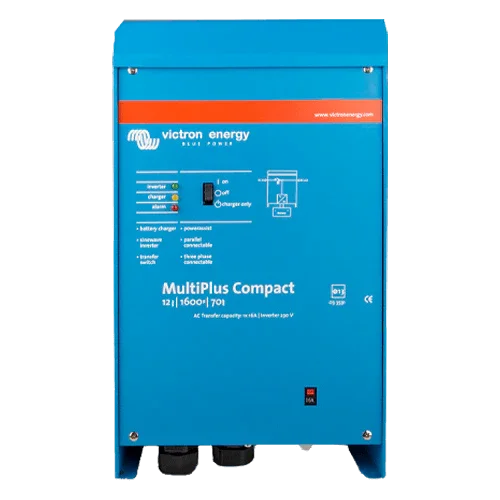

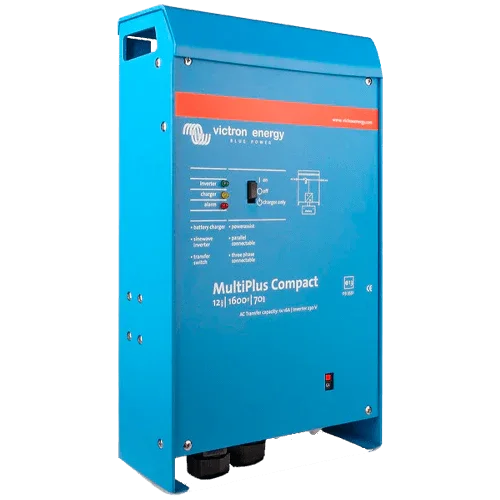

Inverter with Charger Victron MultiPlus C 12V 1600VA 12/1600/70-16
Modelo: Multiplus C 12/1600/70-16- Sku: VICTINV008
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus C 12V 1600VA 12/1600/70-16 combines a pure sine wave inverter and an ultra-fast battery charger in a single unit, designed for 12 V systems in caravans, boats, and off-grid homes. Its high-performance electronics provide stable power for sensitive devices, intelligent energy management with PowerControl/PowerAssist, and automatic 16 A transfer switching that acts as a UPS, maintaining uninterrupted power supply without noticeable interruptions.
Main Features
- Inverter power: 1600 VA (≈1300 W continuous at 25 °C); peak ≈3200 W.
- Integrated 70 A charger with multi-stage algorithms for lead-acid (AGM/GEL) and lithium.
- Automatic 16 A transfer switching with typical transfer time <20 ms.
- PowerAssist and PowerControl functions to support peaks and limit grid or generator input.
- VE.Bus communications for monitoring/settings and the possibility of connection to Cerbo GX and VRM.
- High efficiency and eco/search mode to minimize standby consumption.
Advantages or Benefits
- Protection of sensitive electronics thanks to its pure sine wave and fast transfer.
- More available power without oversizing the generator: the battery supports brief peaks.
- Flexible configuration: selectable charging profiles and remote/automation control.
- Clean and compact installation: inverter and charger in a single chassis.
- Professional scalability with the Victron ecosystem (GX, BMV/SmartShunt, VictronConnect, VRM).
Purpose or Applications
Ideal solution for campers and motorhomes with medium consumption, recreational boats, off-grid residences with essential appliances, remote telecom sites, and as a residential UPS in 12 V systems with priority on continuity.
Technical Specifications
| Inverter power | 1600 VA (≈1300 W at 25 °C); peak ≈3200 W |
| Battery voltage | 12 Vdc |
| Charger | 70 A; Absorption ≈14.4 V / Float ≈13.8 V / Storage ≈13.2 V |
| Transfer switching | Transfer 16 A; typical time <20 ms (UPS mode) |
| Waveform | Pure sine wave 230 V / 50 Hz |
| Efficiency | ≈93–94 % |
| No-load consumption | ≈8–12 W (search mode ≈2–3 W) |
| Communications | VE.Bus, remote on/off, Cerbo GX integration and VRM portal |
| Protections | Overload, short circuit, high/low V, temperature, etc. |
| Protection rating | IP20 (indoor) |
| Dimensions / Weight | ≈520 × 255 × 125 mm / ≈11 kg |
| Operating temperature | −40 … +65 °C (power subject to ventilation) |
| Battery compatibility | AGM, GEL and lithium (adjustable) |
Compatibilities
Accessories and ecosystem: Cerbo GX, VE.Bus Smart Dongle, Multi Control Digital Panel, MK3-USB interface, BMV-712/SmartShunt monitors, VictronConnect app and VRM portal. (No second AC output; available from 3 kVA).
The Victron MultiPlus C 12V 1600VA 12/1600/70-16 offers reliability, real power, and intelligent management to get the most out of your 12 V system.
