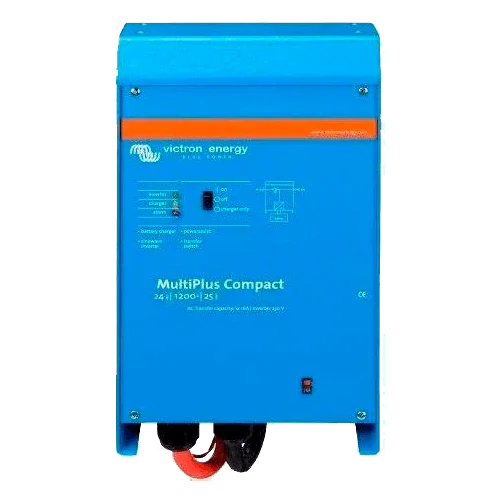

Inverter with Charger Victron MultiPlus C 24V 1200VA 24/1200/25-16
Modelo: Multiplus C 24/1200/25-16- Sku: VICTINV021
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus C 24V 1200VA 24/1200/25-16 integrates in a single device a pure sine wave inverter of 1200 VA and a smart charger of 25 A, designed for 24 V systems that require reliability, efficiency, and continuity of service. Thanks to PowerControl/PowerAssist, it is capable of dynamically managing the available power from the grid or generator input, supplying energy from the battery when necessary. Its automatic 16 A transfer acts as a domestic/mobile UPS, keeping sensitive loads running without perceptible interruptions.
Main Features
- Inverter power: 1200 VA (≈1000 W continuous at 25 °C) and high peak for startups.
- 25 A charger with multi-stage algorithms for AGM, GEL, and lithium (adjustable voltages).
- Automatic transfer of 16 A with typical time <20 ms (UPS function).
- PowerAssist/PowerControl energy management to prevent tripping and support peaks.
- VE.Bus communications for advanced configuration and monitoring with Cerbo GX/VRM.
Advantages or Benefits
- Protects sensitive electronics thanks to its pure sine wave and fast transfer.
- Optimizes available power in campsites, marinas, or homes with limited supply.
- Compact and clean installation: inverter and charger in a single robust chassis.
- High efficiency and saver/search mode to reduce standby consumption.
- Scalable and professional: integration with the Victron ecosystem and full remote control.
Purpose or Applications
Motorhomes and campers with medium consumption, recreational boats, small off-grid homes, light communication rooms, and 24 V backup systems where continuity and control are critical.
Technical Specifications
| Inverter power | 1200 VA (≈1000 W continuous at 25 °C); peak ≈2400 W |
| System voltage | 24 Vdc |
| Charger | 25 A; Abs ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V (adjustable) |
| Transfer | Transfer 16 A; UPS <20 ms |
| Efficiency | ≈93–94 % |
| No-load consumption | ≈8–10 W (search mode ≈2–3 W) |
| AC output | 230 V / 50 Hz, pure sine wave |
| Communications | VE.Bus; remote on/off; programmable relay |
| Protections | Overload, short circuit, high/low V, temperature, etc. |
| Degree of protection | IP20 (indoor use) |
| Dimensions / Weight | ≈375×214×110 mm / ≈10 kg |
| Operating temperature | −40 … +65 °C (derating with temperature) |
Compatibilities
Compatible with: Cerbo GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712/SmartShunt monitors, VictronConnect app, and VRM portal. Recommended accessories: AC/DC protections and battery/temperature sensors.
The Victron MultiPlus C 24V 1200VA 24/1200/25-16 offers reliability, efficiency, and smart management for compact 24 V systems that do not compromise on professional performance.
