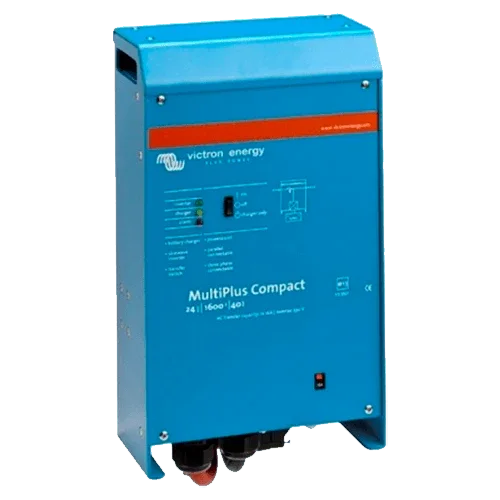

Inverter with Charger Victron MultiPlus C 24V 1600VA 24/1600/40-16
Modelo: Multiplus C 24/1600/40-16- Sku: VICTINV022
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus C 24V 1600VA 24/1600/40-16 increases the usable power within the 24 V range, combining a 1600 VA pure sine wave inverter with a 40 A charger and a 16 A automatic transfer system. Designed to supply stable power to sensitive loads and manage demand peaks, it integrates PowerControl/PowerAssist to supplement the grid or generator with battery power when necessary, preventing unwanted trips and outages.
Main Features
- Inverter power: 1600 VA (≈1300 W continuous at 25 °C) and peak ≈3200 W.
- Integrated 40 A charger with charging profiles for AGM, GEL, and lithium, adjustable voltages.
- Automatic switching of 16 A with typical transfer time <20 ms (UPS mode).
- VE.Bus for advanced configuration, monitoring, and parallel operation within the Victron ecosystem.
- High efficiency and eco/search mode to minimize idle consumption.
Advantages or Benefits
- Seamless continuity, protecting routers, IT equipment, and electronics at 230 V.
- More available power without oversizing the generator: the battery supports brief peaks.
- Compact installation and simple maintenance with Victron accessories and software.
- Total control: from the Multi Control panel, VictronConnect, or the VRM cloud portal.
- Long battery life thanks to its optimized multi-stage charging algorithms.
Purpose or Applications
Ideal for equipped motorhomes, recreational boats, off-grid homes with basic appliances, telemetry/telecom, and residential UPS at 24 V when stability and efficiency are prioritized.
Technical Specifications
| Inverter power | 1600 VA (≈1300 W at 25 °C); peak ≈3200 W |
| System voltage | 24 Vdc |
| Charger | 40 A; Abs ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V (adjustable) |
| Switching | Transfer 16 A; UPS <20 ms |
| Efficiency | ≈93–94 % |
| Idle consumption | ≈8–12 W (search mode ≈2–3 W) |
| AC output | 230 V / 50 Hz, pure sine wave |
| Communications | VE.Bus; remote on/off; programmable relay |
| Protections | Overload, short circuit, high/low V, temperature, etc. |
| Protection rating | IP20 (indoor use) |
| Dimensions / Weight | ≈520×255×125 mm / ≈11 kg |
| Operating temperature | −40 … +65 °C (derating with temperature) |
Compatibilities
Accessories and ecosystem: Cerbo GX, VE.Bus Smart Dongle, Multi Control Digital Panel, MK3-USB interface, BMV-712/SmartShunt monitors, VictronConnect app, and VRM portal. It is recommended to use with suitable AC/DC protections.
The Victron MultiPlus C 24V 1600VA 24/1600/40-16 offers high-level power, control, and reliability for 24 V systems that require continuous performance in a compact size.
