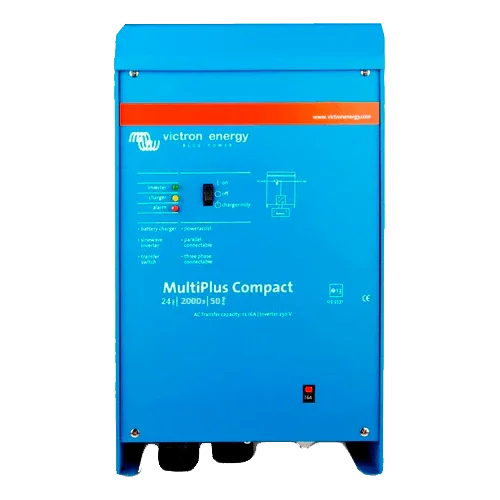

Inverter with Charger Victron MultiPlus C 24V 2000VA 24/2000/50-30
Modelo: Multiplus C 24/2000/50-30- Sku: VICTINV023
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus C 24V 2000VA 24/2000/50-30 combines a pure sine wave inverter of 2 kVA and a 50 A smart charger in a robust unit for 24 V systems. Its advanced PowerControl/PowerAssist power management allows you to limit grid or generator input and add energy from the battery during peaks, while its 30 A transfer switch acts as a UPS to maintain service continuity with critical loads.
Main Features
- Inverter power: 2000 VA (≈1600 W continuous at 25 °C); peak ≈4000 W for startups.
- Integrated 50 A charger with multi-stage algorithm and adjustable profiles for AGM, GEL, and lithium.
- Automatic 30 A transfer with typical transfer time <20 ms.
- PowerAssist/PowerControl: prevents circuit breaker trips and stabilizes the installation.
- VE.Bus communications for configuration, monitoring, and parallel operation.
- High efficiency and eco/search mode to reduce standby consumption.
Advantages or Benefits
- Flicker-free continuity that protects sensitive electronics and communication systems.
- More available power without oversizing the generator: the battery supports brief peaks.
- Clean installation: inverter and charger in a single chassis with programmable relay.
- Professional scalability via Cerbo GX, VictronConnect, and VRM portal.
- Optimized charge management that extends battery life.
Purpose or Applications
Motorhomes and boats with medium/high consumption, off-grid homes with refrigerator, pumps or light tools, telecom, and residential UPS at 24 V.
Technical Specifications
| Inverter power | 2000 VA (≈1600 W at 25 °C); peak ≈4000 W |
| System voltage | 24 Vdc |
| Charger | 50 A; Abs ≈28.8 V / Float ≈27.6 V / Storage ≈26.4 V (adjustable) |
| Transfer | Transfer 30 A; UPS <20 ms |
| AC output | 230 V / 50 Hz, pure sine wave |
| Efficiency | ≈94 % |
| No-load consumption | ≈10–12 W (search ≈2–3 W) |
| Communications | VE.Bus; remote on/off; programmable relay |
| Protections | Overload, short circuit, high/low V, temperature |
| Degree of protection | IP20 (indoor use) |
| Dimensions / Weight | ≈520 × 255 × 125 mm / ≈12 kg |
| Thermal range | −40 … +65 °C (derating with temperature) |
Compatibilities
Compatible with: Cerbo GX, VE.Bus Smart Dongle, Digital Multi Control Panel, MK3-USB interface, BMV-712/SmartShunt, VictronConnect app, and VRM portal.
The Victron MultiPlus C 24V 2000VA 24/2000/50-30 delivers real power, 30 A transfer, and advanced control for 24 V installations that demand reliability.
