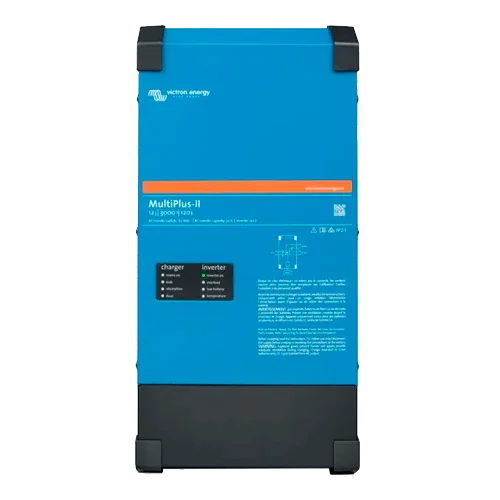

Inverter with Charger Victron MultiPlus-II 12V 3000VA 12/3000/120-32

Modelo: Multiplus-II 12/3000/120-32

Sku: VICTINV012
Vendor: Victron

€1.587,88 EUR

€1.270,31 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron MultiPlus-II Inverter with Charger 12V 3000VA 12/3000/120-32 combines pure sine wave, PowerAssist and 32 A automatic switching for stable supply. Charges up to 120 A and integrates into ESS for self-consumption or backup.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Victron MultiPlus-II 12V 3000VA 12/3000/120-32 is an inverter with intelligent charger designed for 12 V installations seeking professional reliability, efficiency, and advanced energy management. It integrates PowerControl/PowerAssist to maximize the use of grid or generator, with pure sine wave output at 230 V and ultra-fast transfer, ideal for off-grid systems, caravans, marine applications, or self-consumption with ESS.

Main Features

Continuous power 3000 VA (2400 W) with a peak of 5500 W for demanding startups.
32 A transfer switch with “no-break” function (<20 ms) for critical loads.
Battery charger up to 120 A with adjustable charging stages and temperature sensor.
Advanced management: PowerAssist boosts available power and prevents overloads.
Ready for ESS with integrated anti-islanding and support for external meter/sensor to optimize self-consumption.
Parallel and three-phase: up to 6 units in parallel or 3Φ configurations to increase power.

Advantages or Benefits

Uninterrupted supply: sensitive electronics continue operating during outages and switching.
Greater autonomy: prioritizes solar energy and batteries, reducing grid or generator consumption.
Flexible installation: VE.Bus ports, programmable relay, and local or remote control (GX/VRM, VictronConnect app).
Comprehensive protections (overload, over/under voltage, temperature, etc.) for maximum safety.
True scalability: start with one unit and expand power as the project requires.

Purpose or Applications

Perfect for off-grid residences, 12 V caravans and boats, self-consumption with batteries, ESS systems with photovoltaic support, and backup panels requiring fast transfer and pure sine wave quality.

Technical Specifications

Model	MultiPlus-II 12/3000/120-32
Battery voltage	12 V (range 9.5–17 V)
Continuous power	3000 VA / 2400 W at 25 °C
Peak power	5500 W
AC output	230 V ±2 % \| 50 Hz (adjustable to 60 Hz)
Switching	Automatic transfer 32 A (“no-break” <20 ms)
Charger	Max current 120 A \| Absorption 14.4 V \| Float 13.8 V \| Storage mode 13.2 V
Max efficiency	≈93 %
No-load consumption	≈13 W (search mode ≈3 W)
Communication	VE.Bus, 2 general purpose ports, remote On/Off
Functions	PowerControl, PowerAssist, ESS, programmable relay
Protection	Overload, short circuit, over/under voltage, temperature, etc.
Protection rating	IP22
Dimensions / Weight	≈499×268×141 mm / ≈19 kg
Operating temperature	−40 … +65 °C (active ventilation)

Compatibilities

Recommended accessories and components: Cerbo GX / Color Control GX / Octo GX; VRM portal; 100 A:50 mA energy meter or external AC sensor; VE.Bus Smart Dongle (Bluetooth); MK3-USB interface; Digital Multi Control panel; Victron controllers/MPPT and grid-tied PV inverters in ESS systems.

The Victron MultiPlus-II 12V 3000VA 12/3000/120-32 offers a professional solution for 12 V installations that require continuity, starting power, and intelligent energy management with solar integration.
