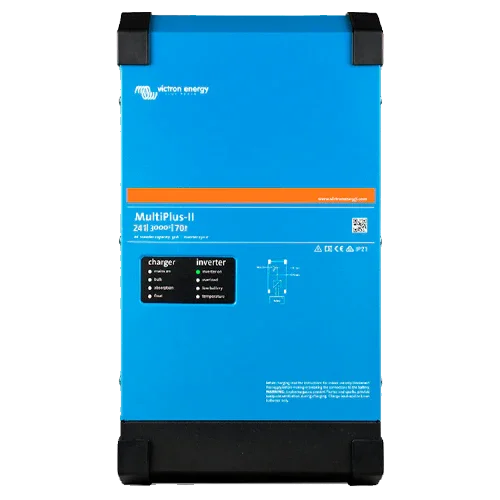

Inverter with Charger Victron MultiPlus-II 24V 3000VA 24/3000/70-32
Modelo: Multiplus-II 24/3000/70-32- Sku: VICTINV026
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus-II 24V 3000VA 24/3000/70-32 is a high-level inverter with charger that combines continuous power of 3000 VA with intelligent energy management in 24 V installations. Its pure sine wave output, “no-break” transfer up to 32 A, and advanced PowerControl/PowerAssist ensure stability even when the grid or generator is limited. ESS-ready, it allows prioritization of solar and battery power to reduce grid consumption without sacrificing flawless continuity.
Main Features
- Continuous power 3000 VA (≈2400 W) and peak start of ≈5500 W for inductive loads.
- Automatic transfer 32 A with “no-break” time (<20 ms) that keeps sensitive equipment operational.
- Fast battery charger of up to 70 A with adjustable charging curves and thermal sensor.
- Intelligent management: PowerAssist adds battery/inverter power to grid or generator to prevent tripping.
- Ready for ESS with anti-islanding and compatibility with external meter or sensor to optimize self-consumption.
- Scalable architecture: parallel up to 6 units and three-phase option to increase power.
Advantages or Benefits
- Guaranteed continuity: the “no-break” mode protects servers, refrigerators, measuring equipment, or critical electronics.
- Real energy savings: prioritizes photovoltaic and battery, reducing generator hours and grid costs.
- Simple configuration and monitoring: VE.Bus, VictronConnect, GX devices, and VRM portal for local and remote control.
- Flexible installation with programmable relay, auxiliary inputs/outputs, and comprehensive electrical and thermal protection.
- Future-proof investment: possibility of expansion in parallel or to three phases without changing the system base.
Purpose or Applications
Ideal for off-grid 24 V homes, boats, and campers requiring high-quality 230 V, domestic or commercial ESS systems with a 24 V battery bank, and backup panels with critical loads that cannot tolerate interruptions.
Technical Specifications
| Model | MultiPlus-II 24/3000/70-32 |
| Battery voltage | 24 V (approx. range 19–33 V) |
| Continuous power | 3000 VA / ≈2400 W at 25 °C |
| Peak power | ≈5500 W |
| AC output | 230 V ±2 % | 50 Hz (adjustable to 60 Hz) |
| Switching | 32 A “no-break” (<20 ms) |
| Charger | Max current 70 A | Absorption ≈28.8 V | Float ≈27.6 V | Storage ≈26.4 V |
| Max efficiency | ≈94–95 % |
| No-load consumption | ≈10–13 W (search mode ≈2–3 W) |
| Communication | VE.Bus, auxiliary inputs/outputs, remote On/Off |
| Functions | PowerControl, PowerAssist, ESS, programmable relay |
| Protection | Overload, over/under-voltage, short circuit, temperature, etc. |
| Degree of protection | IP22 |
| Dimensions / Weight | ≈499×268×141 mm / ≈19 kg |
| Operating temperature | −40…+65 °C (active ventilation) |
Compatibilities
Recommended accessories and components: Cerbo GX / Color Control GX / Octo GX; VRM portal; VE.Bus Smart Dongle (Bluetooth); MK3-USB interface; Digital Multi Control panel; 100 A:50 mA energy meter or external AC sensor; Victron MPPT controllers and grid-tied PV inverters for ESS systems.
The Victron MultiPlus-II 24V 3000VA 24/3000/70-32 is the perfect foundation for a modern 24 V system: continuity, efficiency, and scalability with flawless solar integration.
