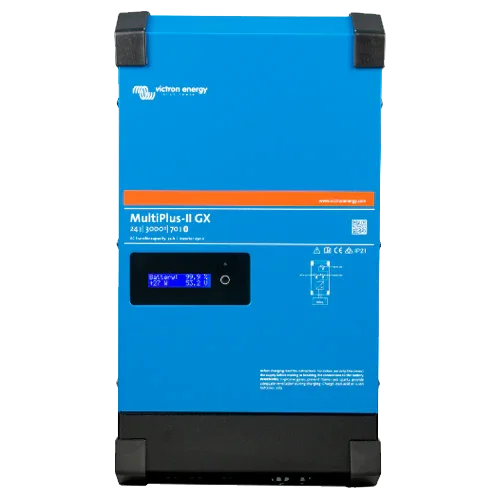

Inverter with Charger Victron MultiPlus-II GX 24V 3000VA 24/3000/70-32-GX
Modelo: Multiplus-II 24/3000/70-32-GX- Sku: VICTINV027
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus-II GX 24V 3000VA 24/3000/70-32 is a professional inverter with charger that integrates a GX interface with LCD display, WiFi/Ethernet connectivity, and advanced control for solar self-consumption systems (ESS), backup, or off-grid installations. Its architecture with PowerAssist and automatic 32 A transfer switch ensures service continuity and optimal use of generators or limited grid connections.
Main Features
- Output power: 3000 VA (2400 W continuous at 25 °C) and 5500 W peak for demanding startups.
- 24 V battery: input range 19–33 V, integrated 70 A charger with absorption/float stages and storage mode.
- 32 A transfer switch with ultra-fast reconnection for critical loads.
- Maximum inverter efficiency of 94% and reduced no-load consumption (search mode 3 W).
- Interfaces: BMS-Can, VE.Bus, VE.Direct, USB, Ethernet, and Wi-Fi; full monitoring in VRM.
- IP22 enclosure, 506×275×147 mm and 19 kg; operation from −40 °C to +65 °C with active ventilation.
Advantages or Benefits
- PowerAssist: prevents circuit breaker trips by adding battery power when AC input is limited.
- Flexible ESS: prioritizes self-consumption and supports zero feed-in control with suitable sensor/meter.
- Remote management and alerts: Victron Remote Management (VRM) portal and mobile app with no fees.
- Scalability: parallel/three-phase operation via VE.Bus, with only one GX unit per system.
- Comprehensive protections: overload, short circuit, battery overvoltage/undervoltage, and overtemperature.
Purpose or Applications
Residential and commercial solutions in 24 V off-grid, ESS systems with zero feed-in, vehicles and marine with shore/base port connections, and backup against power outages maintaining priority loads.
Technical Specifications
| Inverter power | 3000 VA / 2400 W (25 °C); 5500 W peak |
| Battery voltage | 24 V (range 19–33 V) |
| DC/DC charger | 70 A; Abs 28.8 V / Float 27.6 V / Storage 26.4 V |
| Transfer | 32 A automatic |
| Max. efficiency | 94% |
| No-load consumption | 13 W (search 3 W / AES 9 W) |
| AC output | 230 V ± 2%; 50 Hz ± 0.1% (adjustable to 60 Hz) |
| Interfaces | BMS-Can, VE.Bus, VE.Direct, USB, Ethernet, Wi-Fi |
| Protection | IP22; integrated electrical and thermal protections |
| Dimensions / weight | 506×275×147 mm; 19 kg |
| Operating temperature | −40 °C to +65 °C (ventilated) |
Compatibilities
Compatible with external current sensor 100 A:50 mA or energy meter for feed-in control, Multi Control Digital Panel for PowerAssist adjustment, GX GSM modem for mobile connectivity, and 24 V batteries (lead-acid or lithium with CAN BMS).
The Victron MultiPlus-II GX 24V 3000VA 24/3000/70-32 provides intelligent management, reliable power, and total monitoring to maximize self-consumption and ensure your installation.
