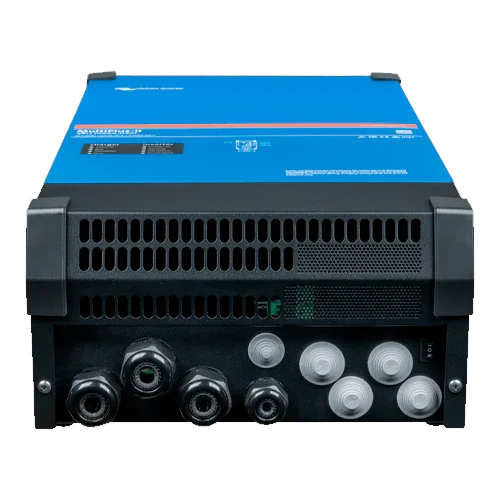

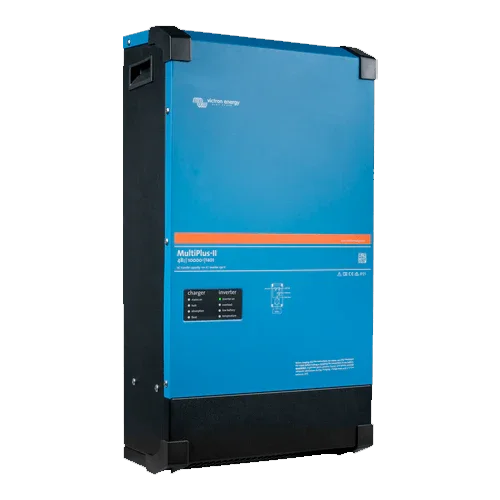

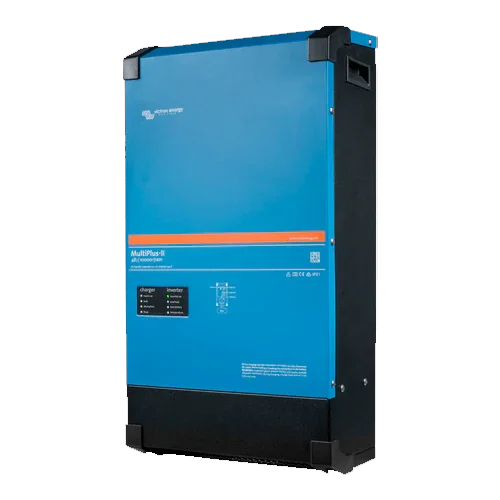

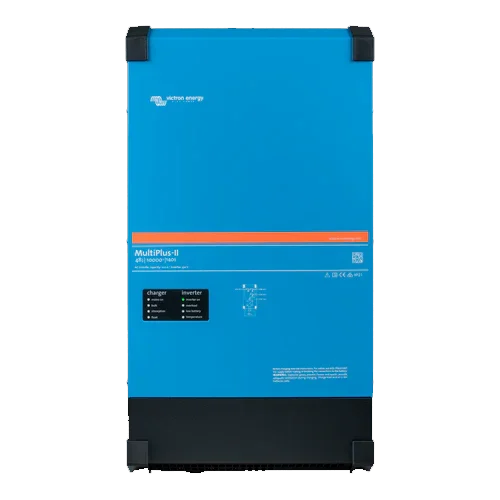

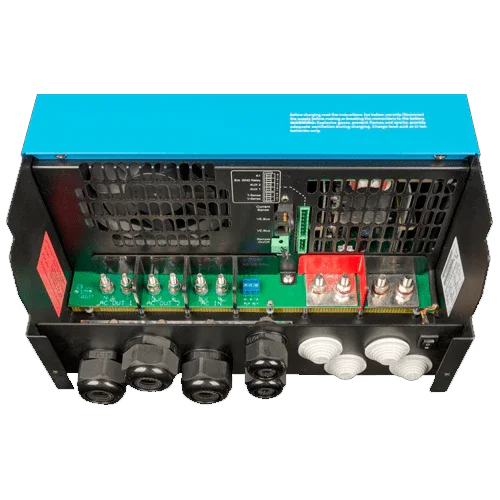

Inverter with Charger Victron MultiPlus-II 48V 10000VA 48/10000/140-100
Modelo: Multiplus-II 48/10000/140-100- Sku: VICTINV047
- Vendor: Victron
Specifications
Product Description
For 48 V projects with very high demands, the Victron MultiPlus-II 48V 10000VA 48/10000/140-100 delivers 10 kVA continuous power, 100 A transfer, and an ultra-fast 140 A charger. The combination of pure sine wave output, “no-break” switching of <20 ms, and PowerControl/PowerAssist ensures that critical loads remain operational even with limited grid supply or small generators. Integrated into ESS, it prioritizes photovoltaic and batteries to reduce grid consumption and provide reliable backup.
Main Features
- Continuous power of 10,000 VA (≈8000 W) with a peak of 18,000 W for demanding startups.
- Automatic transfer 100 A with “no-break” time (<20 ms) for maximum continuity.
- Battery charger of 140 A with programmable profiles and temperature compensation.
- PowerControl/PowerAssist: limits AC input and adds power from the battery when needed.
- ESS ready: integrated anti-islanding, support for external sensor/meter, and energy flow control.
- Scalable architecture: parallel (up to 6) and possibility of high-power three-phase systems.
Advantages or Benefits
- High capacity for industrial loads or significant peaks (pumps, compressors, air conditioning).
- Fewer generator hours: 140 A accelerates battery bank recovery, reducing fuel and noise.
- Full control and visibility from VictronConnect, GX devices, and the remote VRM platform.
- Robust and safe installation with complete protections and IP22 rating.
- Solution ready to grow: parallel and three-phase without changing platform.
Purpose or Applications
Isolated homes and businesses with high demand, microgrids with generator, high-performance residential/commercial ESS, professional marine applications, and special vehicles requiring stable 230 V and high peaks.
Technical Specifications
| Model | MultiPlus-II 48/10000/140-100 |
| Battery voltage | 48 V (approx. range 38–66 V) |
| Continuous power | 10,000 VA (≈8000 W) |
| Peak power | 18,000 W |
| AC output | 230 V ±2% · 50 Hz (adjustable to 60 Hz) |
| Switching | 100 A “no-break” (<20 ms) |
| Charger | 140 A max. · programmable charging stages |
| Max. efficiency | ≈96 % |
| No-load consumption | 38 W (search mode ≈4 W) |
| Communication | VE.Bus, 2 general-purpose I/O, remote On/Off |
| Functions | PowerControl, PowerAssist, ESS, programmable relay |
| Protection | Overload, short circuit, over/under-voltage, temperature, etc. |
| Protection rating | IP22 |
| Dimensions | 677 × 363 × 206 mm |
| Weight | ≈49 kg |
| Operating temperature | −40…+65 °C (active ventilation) |
Compatibilities
Recommended accessories: Cerbo/Color Control/Octo GX (VRM monitoring), VE.Bus Smart Dongle, MK3-USB interface, Digital Multi Control panel, 100 A:50 mA meter or external AC sensor, Victron regulators/MPPT and grid-tied inverters in ESS.
The Victron MultiPlus-II 48V 10000VA 48/10000/140-100 provides sustained power, ultra-fast recharging, and total control for professional 48 V systems with self-consumption and comprehensive backup.
