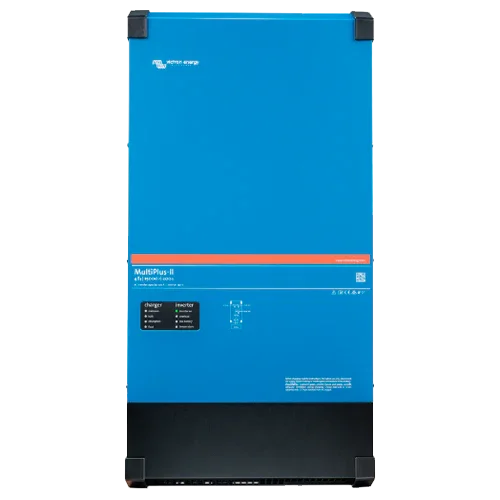

Inverter with Charger Victron MultiPlus-II 48V 15000VA 48/15000/200-100
Modelo: Multiplus-II 48/15000/200-100- Sku: VICTINV048
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus-II 48V 15000VA 48/15000/200-100 is the top-of-the-line 48 V inverter charger for projects demanding maximum power, uninterrupted continuity, and advanced energy management. With 15 kVA continuous output, 100 A “no-break” transfer, and an ultra-fast 200 A charger, it ensures stable supply at 230 V pure sine wave and accelerated battery bank recovery. Its integration with ESS allows prioritization of photovoltaic and storage to reduce grid consumption and provide reliable backup at all times.
Main Features
- Continuous power 15,000 VA (≈12,000 W) with starting peak up to ≈25,000 W.
- Automatic transfer 100 A with “no-break” time (<20 ms) for critical loads.
- Battery charger of up to 200 A with programmable profiles and temperature compensation.
- PowerControl / PowerAssist: limits AC input and adds power from the inverter when demand exceeds the supply or generator.
- Ready for ESS: integrated anti-islanding, support for external meter/sensor, and flow control for self-consumption and backup.
- Scalable: parallel operation (up to 6 units) and possibility of high-power three-phase systems.
Advantages or Benefits
- Total continuity: ultra-fast transfer keeps IT, refrigeration, and sensitive electronics operational.
- Reliable starting of heavy loads (pumps, compressors, air conditioning) thanks to the high available peak.
- Fewer generator hours: the 200 A charger reduces recharge times, fuel consumption, and noise.
- Complete control: monitor and configure locally with VictronConnect or remotely with GX devices and the VRM portal.
- Future-proof investment: modular architecture allows for power expansion or transition to three-phase without redoing the installation.
Purpose or Applications
Off-grid homes and businesses with high demand, microgrids with generator, high-performance residential or commercial ESS, professional marine applications, and special vehicles requiring stable 230 V, high starting capacity, and minimal recovery times.
Technical Specifications
| Model | MultiPlus-II 48/15000/200-100 |
| Battery voltage | 48 V (approx. range 38–66 V) |
| Continuous power | 15,000 VA · ≈12,000 W at 25 °C |
| Power peak | ≈25,000 W |
| AC output | 230 V ±2 % · 50 Hz (adjustable to 60 Hz) |
| Transfer | 100 A “no-break” (<20 ms) |
| Charger | Max current 200 A · Absorption ≈57.6 V · Float ≈55.2 V · Storage ≈52.8 V |
| Max efficiency | ≈96 % |
| No-load consumption | ≈45 W (search mode ≈5 W) |
| Communication | VE.Bus, general-purpose inputs/outputs, remote On/Off |
| Functions | PowerControl, PowerAssist, ESS, programmable relay |
| Protection | Overload, short circuit, over/under-voltage, temperature, etc. |
| Protection rating | IP22 |
| Dimensions | ≈840 × 363 × 206 mm |
| Weight | ≈55 kg |
| Operating temperature | −40…+65 °C (active ventilation) |
Compatibilities
Recommended accessories: Cerbo/Color Control/Octo GX (VRM monitoring), VE.Bus Smart Dongle (Bluetooth), MK3-USB interface, Digital Multi Control panel, 100 A:50 mA meter or external AC sensor, Victron MPPT controllers and grid-tied inverters in ESS configurations.
The Victron MultiPlus-II 48V 15000VA 48/15000/200-100 is the ultimate professional solution for 48 V systems requiring sustained power, peak response, and top-level energy control.
