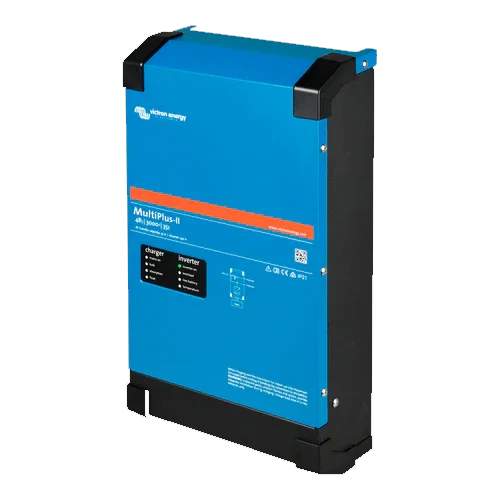

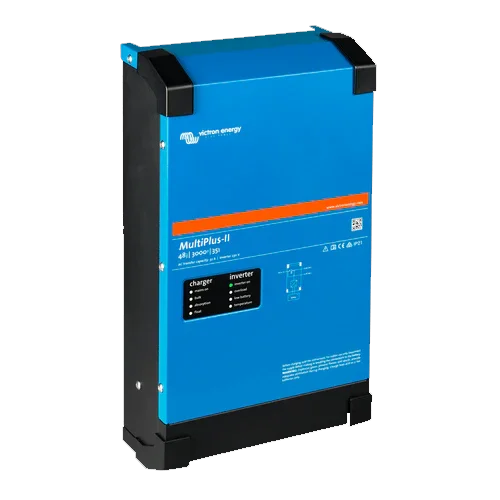

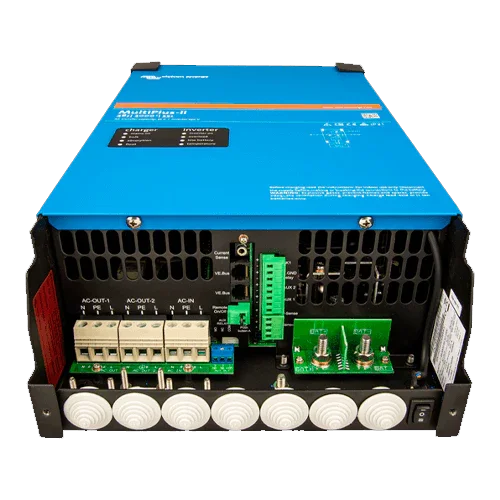

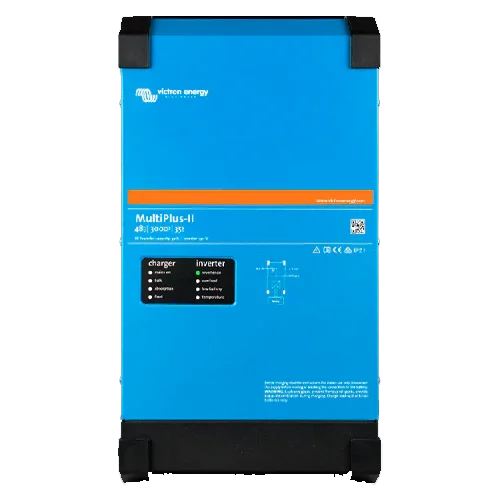

Inverter with Charger Victron MultiPlus-II 48V 3000VA 48/3000/35-32
Modelo: Multiplus-II 48/3000/35-32- Sku: VICTINV041
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus-II 48V 3000VA 48/3000/35-32 is a next-generation inverter with charger for 48 V systems that require service continuity, efficiency, and advanced energy management. It offers 230 V pure sine wave output, continuous power of 3000 VA, and “no-break” transfer up to 32 A to protect sensitive equipment. Thanks to PowerControl/PowerAssist, it utilizes and boosts the available power from the grid or generator when demand exceeds capacity, preventing trips and voltage drops. Compatible with ESS systems, it facilitates self-consumption with batteries and integration with photovoltaics to reduce grid usage.
Main Features
- Continuous power 3000 VA (≈2400 W) with high peak start for inductive loads.
- Automatic transfer 32 A with “no-break” time (<20 ms) that keeps critical loads operational.
- Battery charger of up to 35 A with adjustable curves and temperature compensation.
- Intelligent management with PowerAssist to add battery/inverter power to grid or generator.
- Ready for ESS (self-consumption and backup) with energy flow control and support for external meter/sensor.
- Scalable architecture: parallel up to 6 units and possibility of three-phase configuration.
Advantages or Benefits
- True continuity: fast switching prevents outages for sensitive electronics, refrigeration, home automation, or IT.
- Energy savings: prioritizes solar and batteries, reducing generator hours and grid consumption.
- Total monitoring: integration with GX devices and VRM portal, as well as local control via VictronConnect.
- Electrical safety: protections against overload, over/under-voltage, short circuit, and temperature.
- Project ready to grow: add power in parallel or create three-phase systems without changing platform.
Purpose or Applications
Off-grid residential 48 V, self-consumption with battery bank (ESS), vessels and professional vehicles requiring stable 230 V, and backup panels in SMEs with critical loads that cannot tolerate interruptions.
Technical Specifications
| Model | MultiPlus-II 48/3000/35-32 |
| Battery voltage | 48 V (approx. range 38–66 V) |
| Continuous power | 3000 VA / ≈2400 W at 25 °C |
| Peak power | ≈5500 W |
| AC output | 230 V ±2 % | 50 Hz (adjustable to 60 Hz) |
| Switching | 32 A “no-break” (<20 ms) |
| Charger | Max current 35 A | Absorption ≈57.6 V | Float ≈55.2 V | Storage ≈52.8 V |
| Max efficiency | ≈95 % |
| No-load consumption | ≈10–12 W (search mode ≈2–3 W) |
| Communication | VE.Bus, auxiliary inputs/outputs, remote On/Off |
| Functions | PowerControl, PowerAssist, ESS, programmable relay |
| Degree of protection | IP22 |
| Dimensions / weight | ≈499×268×141 mm / ≈19 kg |
| Operating temperature | −40…+65 °C (active ventilation) |
Compatibilities
Recommended accessories: Cerbo GX / Color Control GX / Octo GX (VRM portal); VE.Bus Smart Dongle (Bluetooth); MK3-USB interface; Digital Multi Control panel; 100 A:50 mA energy meter or external AC sensor; Victron MPPT controllers/inverters and grid-tie inverters for ESS solutions. (No links are created if there is no internal URL).
The Victron MultiPlus-II 48V 3000VA 48/3000/35-32 provides continuity, control, and scalability to take your 48 V system to the next level with precise solar integration.
