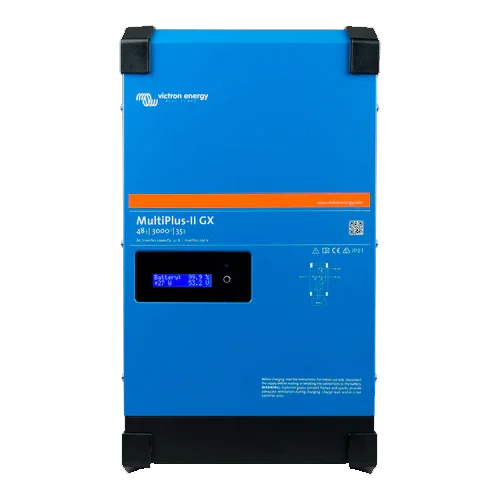

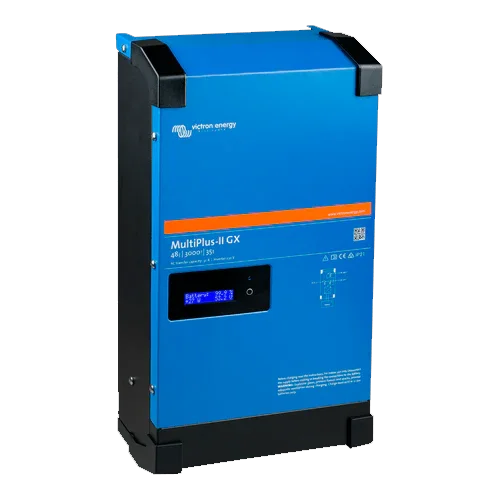

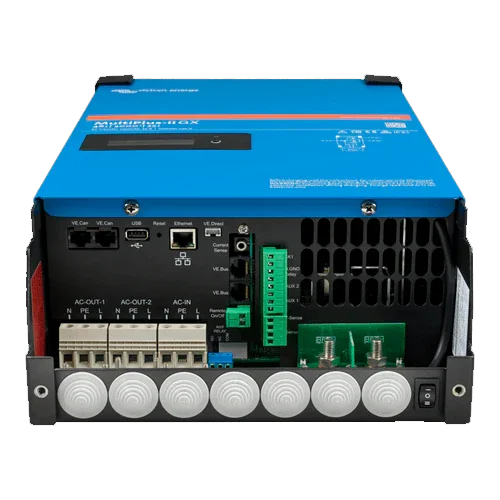

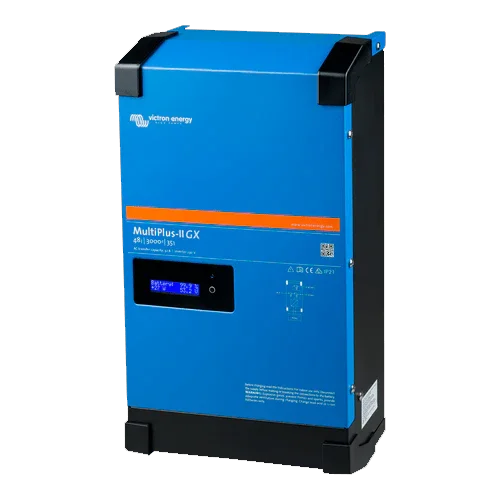

Inverter with Charger Victron MultiPlus-II GX 48V 3000VA 48/3000/35-32-GX

Modelo: Multiplus-II 48/3000/35-32-GX

Sku: VICTINV042
Vendor: Victron

€831,76 EUR

€665,41 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron MultiPlus-II GX 48V 3000VA 48/3000/35-32 an inverter and charger with ESS, WiFi/Ethernet and LCD screen. 32 A transfer, PowerAssist and VE.Bus for 48 V systems in self-consumption or professional backup.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Victron MultiPlus-II GX 48V 3000VA 48/3000/35-32 integrates inverter/charger and GX gateway with display for complete system control. With WiFi and Ethernet connectivity, PowerAssist, VE.Bus, and 32 A transfer switch, it is the ideal heart of 48 V solar installations for self-consumption (ESS), marine, special vehicles, or off-grid projects that require continuity and remote management.

Main Features

Output power: 3000 VA (4000 W at 25 °C? → 3000 VA with 2400 W at 25 °C in 3 kVA range) and high peak for start-up surges.*
48 V charger with maximum current of 35 A and charging algorithms (absorption, float, and storage) for lead and lithium.
32 A transfer switch with fast re-engagement that keeps essential loads operational.
Maximum efficiency of 95% and very low no-load consumption (search mode 2 W).
Integrated interfaces: BMS-Can, VE.Bus, VE.Direct, USB, Ethernet, and Wi-Fi; monitoring on VRM portal.
Compact IP22 format (506×275×147 mm, 19 kg) with wide thermal range from −40 °C to +65 °C.

Advantages or Benefits

Optimized self-consumption: ESS operation with zero feed-in control using suitable sensor/meter.
PowerAssist adds battery energy when AC input is limited, preventing trips and voltage drops.
Comprehensive remote management: configuration, alarms, and historical data from app and Victron Remote Management.
Scalable and versatile: supports parallel and three-phase with a single GX unit per system.
Enhanced safety with electronic protections and programmable relay for generator start.

Purpose or Applications

Designed for homes with 48 V battery, businesses with ESS and zero feed-in, boats, motorhomes, and telecom/industrial where electrical continuity and advanced control are required.

Technical Specifications

Inverter power	3000 VA; high peak for motor start
Battery voltage	48 V (range 38–66 V)
DC/DC charger	35 A; Abs 57.6 V / Float 55.2 V / Storage 52.8 V
Transfer	32 A automatic
Max. efficiency	95 %
No-load consumption	11 W (search 2 W / AES 7 W)
AC output	230 V ± 2 %; 50 Hz ± 0.1 % (adjustable to 60 Hz)
Interfaces	BMS-Can, VE.Bus, VE.Direct, USB, Ethernet, Wi-Fi
Protection	IP22; integrated electrical and thermal protections
Dimensions / weight	506×275×147 mm; 19 kg
Operating temperature	−40 °C to +65 °C (fan cooling)

Compatibilities

Compatible with external current sensor 100 A:50 mA or energy meter for ESS management, Multi Control Digital Panel to adjust PowerAssist, GX GSM modem for mobile remote access, and 48 V batteries (lead-acid or lithium with CAN BMS). Does not include MPPT solar regulator; can be integrated with external Victron controllers and monitored from the GX interface.

The Victron MultiPlus-II GX 48V 3000VA 48/3000/35-32 offers total control, high efficiency, and electrical continuity for 48 V projects that demand reliability and professional monitoring.
