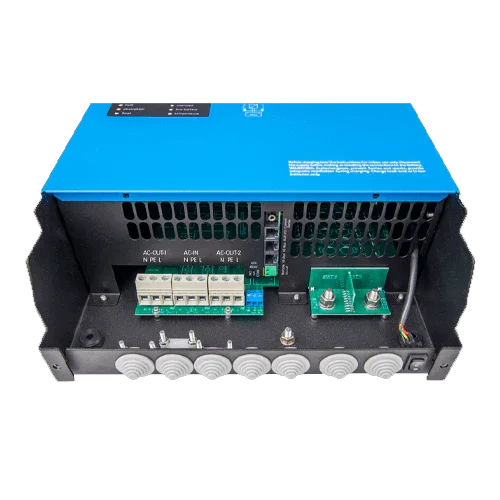

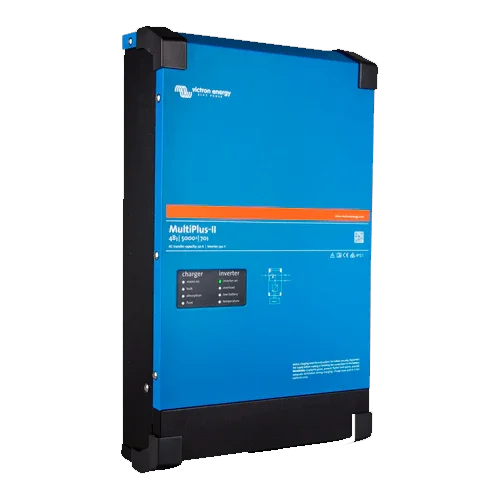

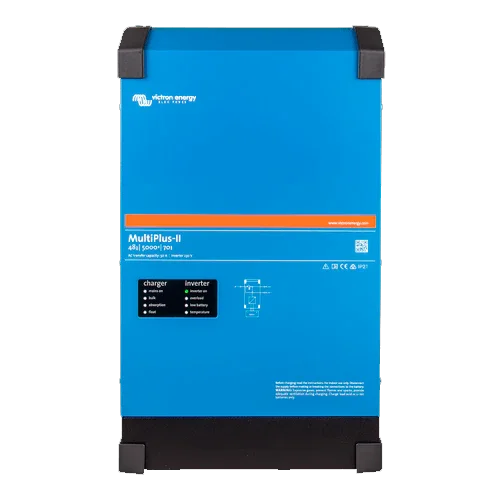

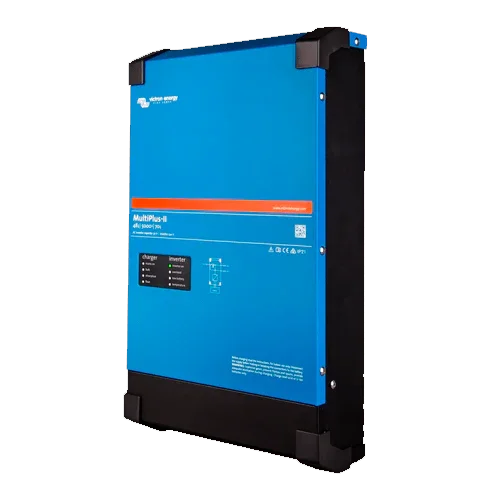

Inverter with Charger Victron MultiPlus-II 48V 5000VA 48/5000/70-50

Modelo: Multiplus-II 48/5000/70-50

Sku: VICTINV043
Vendor: Victron

€1.035,39 EUR

€828,31 EUR

Tax included.

Shipping calculated at checkout.

In stock!

Spend €150,00 to FREE SHIPPING

Victron MultiPlus-II 48V 5000VA 48/5000/70-50 Inverter with Charger delivers 230 V pure sine wave with 50 A transfer, 70 A charger and peak close to 9000 W. Prepared for ESS and parallel or three-phase expansion.

Product variants

Quantity

I agree with the Terms and Conditions.

Purchase with Secure Payment

Specifications

Product Description

The Victron MultiPlus-II 48V 5000VA 48/5000/70-50 is designed for 48 V installations that require higher continuous power and faster battery recovery times. It offers 5000 VA (≈4000 W) output at 230 V with pure sine wave, automatic 50 A transfer switch, and PowerControl/PowerAssist management, which adds inverter power to grid or generator power to prevent overloads and maintain system stability. Its ESS compatibility allows prioritization of photovoltaic energy and batteries, optimizing self-consumption and ensuring reliable backup during outages.

Main Features

Continuous power 5000 VA (≈4000 W) with peak power up to ≈9000 W.
Automatic transfer 50 A with “no-break” time (<20 ms) for critical loads.
Battery charger of up to 70 A with adjustable profiles and temperature sensor.
ESS integration: flow control with external meter/sensor and self-consumption strategy.
Professional scalability: up to 6 units in parallel and possibility of three-phase systems.
Complete connectivity: VE.Bus, local control (VictronConnect) and remote (GX devices + VRM portal).

Advantages or Benefits

Reliable starting of demanding loads (pumps, compressors, air conditioning) thanks to high peak power.
Fewer generator hours: the 70 A charger accelerates battery bank recovery.
Guaranteed continuity: the “no-break” mode prevents blackouts in sensitive electronics.
Safe and flexible installation: electronic protections, programmable relay, and wide compatibility.
Long-term investment: expandable platform that grows with your project without redoing the installation.

Purpose or Applications

Ideal for off-grid homes with high demand at 48 V, microgrids with backup generator, residential/commercial ESS systems, boats, and professional vehicles requiring stable 230 V and high peaks.

Technical Specifications

Model	MultiPlus-II 48/5000/70-50
Battery voltage	48 V (approx. range 38–66 V)
Continuous power	5000 VA / ≈4000 W at 25 °C
Peak power	≈9000 W
AC output	230 V ±2 % \| 50 Hz (adjustable to 60 Hz)
Transfer switch	50 A “no-break” (<20 ms)
Charger	Max current 70 A \| Absorption ≈57.6 V \| Float ≈55.2 V \| Storage ≈52.8 V
Max efficiency	≈95–96 %
No-load consumption	≈15–18 W (search mode ≈2–3 W)
Communication	VE.Bus, auxiliary inputs/outputs, remote On/Off
Functions	PowerControl, PowerAssist, ESS, programmable relay
Protection rating	IP22
Dimensions / weight	≈565×320×149 mm / ≈30–33 kg
Operating temperature	−40…+65 °C (active ventilation)

Compatibilities

Recommended accessories: Cerbo GX / Color Control GX / Octo GX (VRM monitoring); VE.Bus Smart Dongle; MK3-USB interface; Digital Multi Control panel; 100 A:50 mA energy meter or external AC sensor; Victron MPPT controllers and grid-tied inverters in ESS configurations. (No links if there is no internal URL).

The Victron MultiPlus-II 48V 5000VA 48/5000/70-50 provides power, continuity, and control for modern 48 V systems, maximizing self-consumption and ensuring professional backup.
