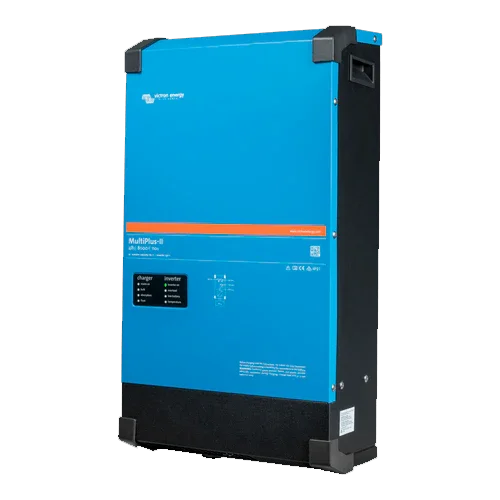

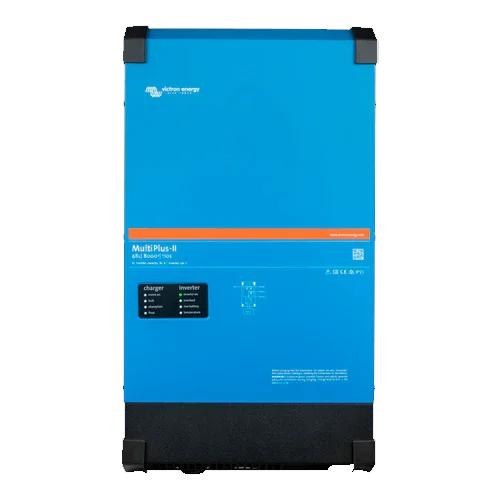

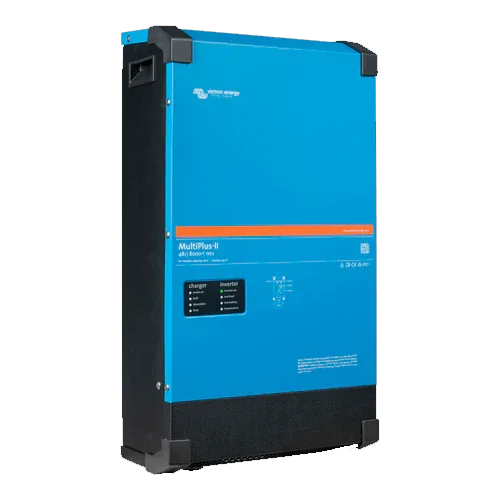

Inverter with Charger Victron MultiPlus-II 48V 8000VA 48/8000/110-100
Modelo: Multiplus-II 48/8000/110-100- Sku: VICTINV046
- Vendor: Victron
Specifications
Product Description
The Victron MultiPlus-II 48V 8000VA 48/8000/110-100 is a high-performance inverter charger for 48 V battery banks that combines continuous 8 kVA power with advanced energy management. Its pure sine wave output at 230 V, the 100 A “no-break” transfer switch, and the 110 A charger ensure continuity and fast recharging even in installations with a generator or limited grid connection. With PowerControl/PowerAssist, it adds power from the battery when demand exceeds available supply, preventing tripping and voltage drops. ESS-ready, it prioritizes photovoltaic and batteries to maximize self-consumption.
Main Features
- Continuous power 8000 VA (≈6400 W) with a start-up peak of 15,000 W for heavy loads.
- 100 A automatic transfer with “no-break” time (<20 ms) for critical loads.
- Battery charger of 110 A with adjustable profiles and thermal compensation.
- Intelligent management: PowerControl/PowerAssist to add power and limit AC input.
- ESS integration with anti-islanding, support for external sensor/meter, and flow control.
- Scalable: parallel (up to 6) and three-phase option; VE.Bus communications and programmable relay.
Advantages or Benefits
- True continuity: ultra-fast switching prevents blackouts in sensitive electronics.
- Accelerated recharging: 110 A reduces generator hours and downtime.
- Energy savings: prioritizes solar energy and battery, reducing grid consumption.
- Total monitoring: VictronConnect, GX devices, and VRM portal for local and remote control.
- Professional installation: complete protections, IP22, and flexible connectivity for expansions.
Purpose or Applications
Isolated homes and commercial sites with high demand at 48 V, microgrids with generator, professional marine, premium campers, and ESS systems with high peaks and critical loads that cannot tolerate interruptions.
Technical Specifications
| Model | MultiPlus-II 48/8000/110-100 |
| Battery voltage | 48 V (approx. range 38–66 V) |
| Continuous power | 8000 VA (≈6400 W) |
| Peak power | 15,000 W |
| AC output | 230 V ±2 % · 50 Hz (adjustable to 60 Hz) |
| Switching | 100 A “no-break” (<20 ms) |
| Charger | 110 A max · Absorption/Float/Storage modes |
| Max efficiency | ≈95 % |
| No-load consumption | 29 W (search mode ≈3–4 W) |
| Communication | VE.Bus, 2 general-purpose I/O, remote On/Off |
| Functions | PowerControl, PowerAssist, ESS, programmable relay |
| Protection | Overload, short circuit, over/under-voltage, temperature, etc. |
| Protection rating | IP22 |
| Dimensions | 642 × 363 × 206 mm |
| Weight | ≈42 kg |
| Operating temperature | −40…+65 °C (active ventilation) |
Compatibilities
Recommended accessories: Cerbo/Color Control/Octo GX (VRM portal), VE.Bus Smart Dongle (Bluetooth), MK3-USB interface, Digital Multi Control panel, 100 A:50 mA meter or external AC sensor, Victron regulators/MPPT and grid-tied inverters in ESS configurations.
The Victron MultiPlus-II 48V 8000VA 48/8000/110-100 is a professional solution for high power, uninterrupted continuity, and maximum solar integration at 48 V.
