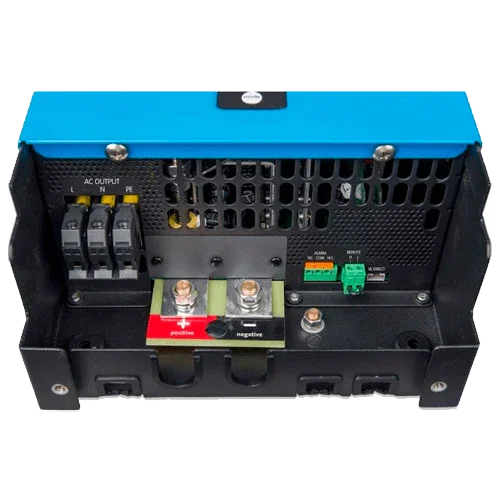

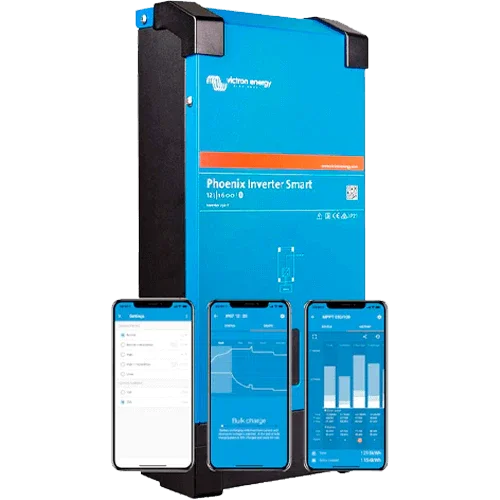

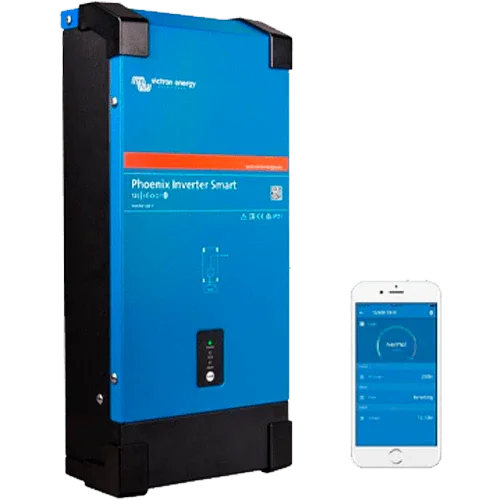

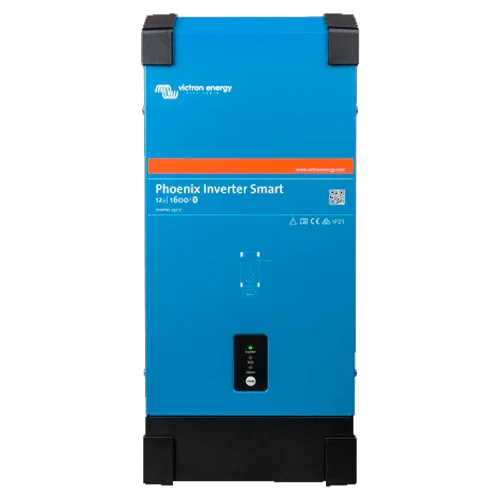

Victron Phoenix Smart Inverter 12V 1600VA 12/1600
Modelo: Phoenix Smart 12/1600- Sku: VICTINV066
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix Smart Inverter 12V 1600VA 12/1600 is a professional pure sine wave inverter designed to convert 12 VDC to 230 VAC with maximum reliability and advanced control. It features integrated Bluetooth for configuration from a smartphone, VE.Direct port for monitoring, ultra-low ECO mode, and a programmable relay. It combines high start-up power with robust electronics that protect against short circuits, overloads, and temperature, making it ideal for caravans, boats, and demanding off-grid solar systems.
Main Features
- Continuous power: 1600 VA (1300 W at 25 °C) with a peak of 3000 W for start-up loads.
- 12 VDC input (range 9.3–17 V) and 230 VAC output ±2% at 50/60 Hz.
- Integrated Bluetooth and VE.Direct port for adjustment and monitoring.
- ECO mode with standby consumption of only 0.6 W; idle consumption 8 W.
- Programmable relay (general alarm, DC undervoltage, or generator start/stop).
- IP21 enclosure, operating temperature -40 to +65 °C, ECE R10 certification.
Advantages or Benefits
- Pure sine wave output that protects and operates sensitive equipment without buzzing or overheating.
- Smart management from the app: threshold adjustment, alarms, frequency, and remote on/off.
- High efficiency (up to ~92%) and very low consumption in ECO mode to save battery.
- High start-up power to drive demanding loads such as pumps, compressors, or tools.
- Comprehensive protections to extend system lifespan and prevent downtime.
Purpose or Applications
Perfect for 12 V off-grid solar installations, campers and caravans, recreational boating, backup systems in service vans, and small businesses requiring stable power for electronics, LED lighting, low/medium consumption appliances, and tools with start-up surges.
Technical Specifications
| Model | Phoenix Smart 12/1600 |
| Continuous power | 1600 VA (1300 W at 25 °C) |
| Peak power | 3000 W |
| Input voltage | 12 VDC (9.3–17 V) |
| Output | 230 VAC ±2% | 50/60 Hz |
| Max. efficiency | ≈92% |
| Idle consumption | 8 W (ECO: 0.6 W) |
| Communications | Bluetooth, VE.Direct |
| Programmable relay | Yes (AC 230 V/4 A; DC 4 A <=35 V) |
| Protections | Short circuit, overload, high/low battery voltage, overtemperature, 230 V at output, high ripple |
| Operating temperature | -40…+65 °C |
| Protection rating | IP21 |
| Dimensions | 485×219×125 mm |
| Weight | ≈12 kg |
| Parallel/Three-phase | No |
| Certification | ECE R10 |
Compatibilities
Compatible with BMV-712 Smart battery monitor, VE.Direct to USB interface, Phoenix Inverter Control panel, Cerbo/Color Control GX, and Filax transfer switch for fast switching from grid to inverter. Also integrable in systems with DC protections, MEGA/MIDI fuses, and wiring suitable for 12 V.
The Victron Phoenix Smart Inverter 12V 1600VA 12/1600 provides reliable power, intelligent control, and professional safety for your autonomous energy projects.
