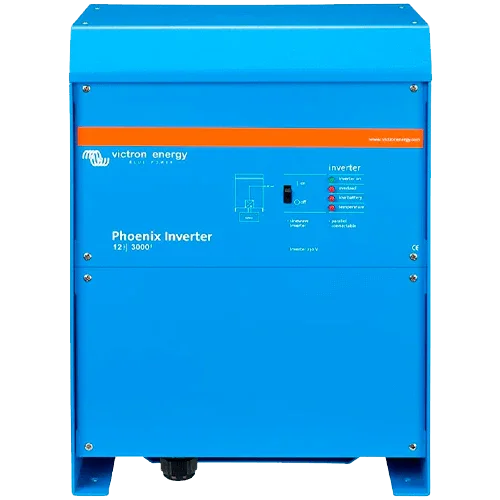

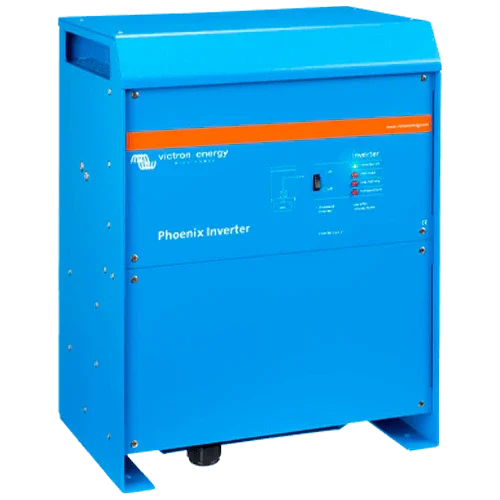

Victron Phoenix Inverter 12V 3000VA 12/3000
Modelo: Phoenix 12/3000- Sku: VICTINV065
- Vendor: Victron
Specifications
Product Description
Designed for demanding applications, the Victron Phoenix 12V 3000VA 12/3000 supplies 230 V pure sine wave from a 12 V battery bank with the reliability of Victron Energy. Its SinusMax electronics provide outstanding peak capacity to start tough loads, while the power-saving modes minimize idle consumption. It is a robust and scalable solution for marine use, high-end caravans, mobile workshops, and off-grid homes.
Main Features
- Continuous power: 3000 VA (≈2400–2500 W at 25 °C) with 6000 W peak for starting compressors, pumps, and tools.
- DC input 12 V (9.5–17 V) and output 230 V ±2 %, 50/60 Hz selectable with low THD.
- Max efficiency ≈93–94 % and AES/Search modes that reduce standby consumption to ~2–5 W.
- Electronic protections: undervoltage/overvoltage, overload, short circuit, thermal, and audible/visual alarm.
- Advanced integration: VE.Bus port for control/monitoring with GX equipment and VEConfigure setup.
- Professional construction: aluminum chassis, IP21, active ventilation, and design prepared for continuous use.
Advantages or Benefits
- Pure sine wave ensures safe operation of sensitive electronics and high-efficiency motors.
- Large peak reserve to prevent tripping when starting inductive loads and ensure service continuity.
- Ultra-low standby consumption, key in off-grid installations and vessels with limited autonomy.
- Scalability and remote monitoring within the Victron ecosystem (GX, VRM, VictronConnect).
- Recognized industrial reliability and availability of accessories and spare parts.
Purpose or Applications
Aimed at premium campers, boats with air conditioning or powerful refrigerators, mobile workshops, telecom networks, pump houses, and off-grid homes that require high peaks at 12 V without sacrificing wave quality and efficiency.
Technical Specifications
| Continuous power (25 °C) | 3000 VA (≈2400–2500 W) |
| Continuous power (40 °C) | ≈2000–2100 W |
| Peak power | 6000 W |
| Input voltage | 9.5–17 V DC |
| AC output | 230 V ±2 % | 50/60 Hz |
| Maximum efficiency | ≈93–94 % |
| No-load consumption | ~12 W (AES ~6 W | Search ~2 W) |
| Protection | Overload, high/low DC, thermal, short circuit, IP21 |
| Dimensions | ≈520 × 255 × 125 mm |
| Weight | ≈17–18 kg |
| Temperature range | -40 °C to +65 °C (with derating) |
| Connectivity | VE.Bus, remote On/Off, VEConfigure with MK3-USB |
| Enclosure | Aluminum, Victron blue |
Compatibilities
Direct compatibility with high-capacity 12 V battery banks (size cabling and protections according to power).
Compatible accessories (not included): BMV/SmartShunt for SOC, Phoenix Inverter Control, MK3-USB, GX devices (Cerbo GX), and VRM platform for cloud monitoring; as well as MEGA fuse holders, disconnectors, and DC/AC protection panels.
The Victron Phoenix 12V 3000VA 12/3000 combines pure sine wave, high performance, and great starting peak, offering a solid foundation for professional and reliable 12 V systems.
