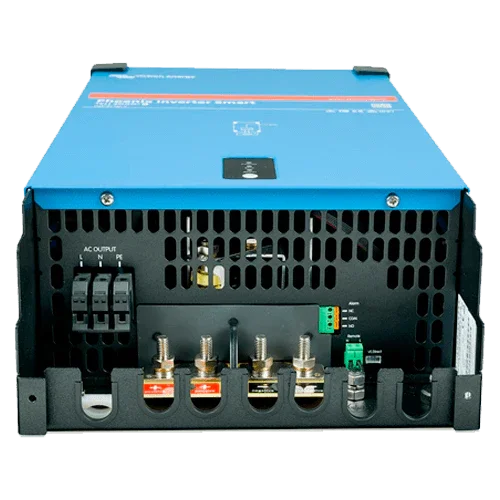

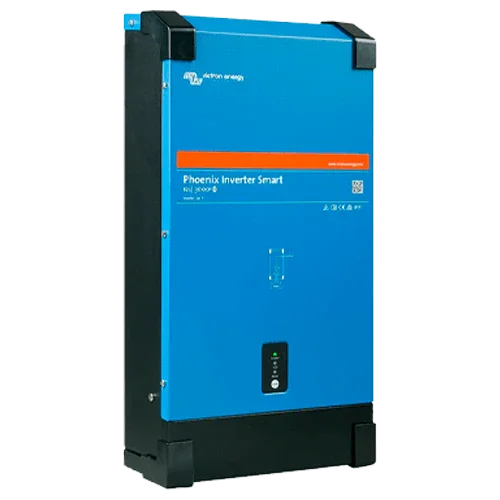

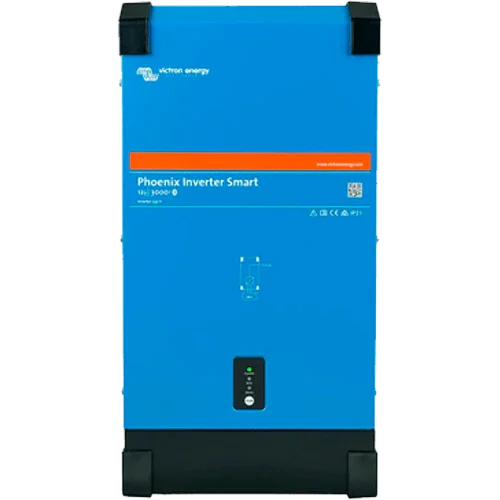

Victron Phoenix Smart Inverter 12V 3000VA 12/3000
Modelo: Phoenix Smart 12/3000- Sku: VICTINV068
- Vendor: Victron
Specifications
Product Description
The Victron Phoenix Smart Inverter 12V 3000VA 12/3000 is the highest power option in the Phoenix Smart range for 12 V systems. It delivers 3000 VA continuously with a peak of 6000 W, maintains pure sine wave output to protect sensitive loads, and adds advanced control via Bluetooth and VE.Direct port. Its high-performance electronics, ECO mode with ultra-low consumption, and programmable relay ensure professional integration in caravans, boats, and demanding off-grid solar systems.
Main Features
- Continuous power: 3000 VA (≈2400 W at 25 °C) and high overload capacity with peaks of 6000 W.
- 12 VDC input (range 9.3–17 V) and 230 VAC output ±2% at 50/60 Hz with pure sine wave.
- Integrated Bluetooth and VE.Direct for configuration, logging, and monitoring.
- High efficiency (~93%) and ECO mode with ultra-low standby consumption.
- Programmable relay for alarms, undervoltage, or generator start/stop.
- Comprehensive protections against short circuit, overload, temperature, and abnormal voltages.
Advantages or Benefits
- Stable energy for sensitive electronics, appliances, and tools with high inrush current.
- Smart management from the app: thresholds, ECO, alarms, and remote switching.
- Maximum autonomy thanks to low idle consumption and high efficiency.
- Professional installation with programmable relay and integration into GX systems.
- Robust construction for reliable operation in mobile and demanding environments.
Purpose or Applications
Ideal for high-demand campers, recreational boating, food trucks, mobile workshops, and 12 V off-grid homes requiring high power, safe start-up peaks, and reliable remote control.
Technical Specifications
| Model | Phoenix Smart 12/3000 |
| Continuous power | 3000 VA (≈2400 W at 25 °C) |
| Peak power | 6000 W |
| Input voltage | 12 VDC (9.3–17 V) |
| Output | 230 VAC ±2% | 50/60 Hz |
| Max efficiency | ≈93% |
| Idle consumption | ≈11 W (ECO: ≈0.6 W) |
| Communications | Bluetooth, VE.Direct |
| Programmable relay | Yes (alarm/undervoltage/generator start) |
| Protections | Short circuit, overload, high/low battery voltage, overtemperature, 230 V at output, high ripple |
| Operating temperature | -40…+65 °C |
| Protection rating | IP21 |
| Dimensions | ≈546 × 229 × 125 mm |
| Weight | ≈15 kg |
| Parallel/Three-phase | No |
| Certification | ECE R10 |
Compatibilities
Integrable with BMV-712 Smart, VE.Direct to USB interface, Phoenix Inverter Control panel, Cerbo/Color Control GX, and Filax transfer switch. Requires suitable DC wiring and protections (MEGA/MIDI fuses, disconnectors, and DC circuit breakers).
The Victron Phoenix Smart Inverter 12V 3000VA 12/3000 combines power, control, and efficiency to bring professional-grade energy to your 12 V projects.
